Airmar TM275C‑LHW Transom Mount Low/High Wide CHIRP Transducer Series

The Airmar TM275C‑LHW delivers best‑in‑class broadband CHIRP performance in a rugged transom‑mount housing. Designed for high‑clarity depth readings and ultra‑sensitive fish detection, it combines low‑frequency deep‑water capability with wide‑beam high‑frequency coverage to maximize performance for offshore and coastal anglers. Providing up to 123 kHz of total bandwidth, it covers the most popular fishing frequencies (50 kHz and 200 kHz included) so no fish or structure goes undetected beneath your boat.

The constant 25‑degree high‑frequency beam keeps targets crisp across the water column, while dual‑element operation with fast‑response temperature sensing ensures both precision and durability. Whether paired via Navico 7‑pin or 9‑pin Mix‑N‑Match cabling, the TM275C‑LHW is built to perform flawlessly with CHIRP‑ready echosounders.

Models:

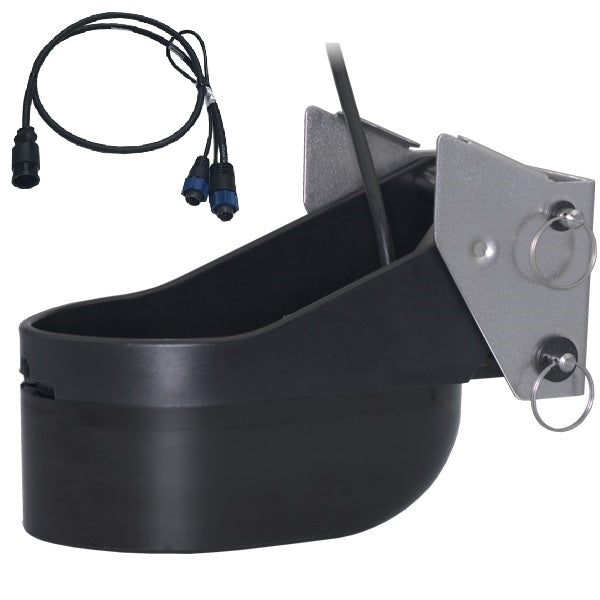

• TM275C‑LHW‑BL2 (Navico 7‑Pin & Y Mix‑N‑Match Cable)

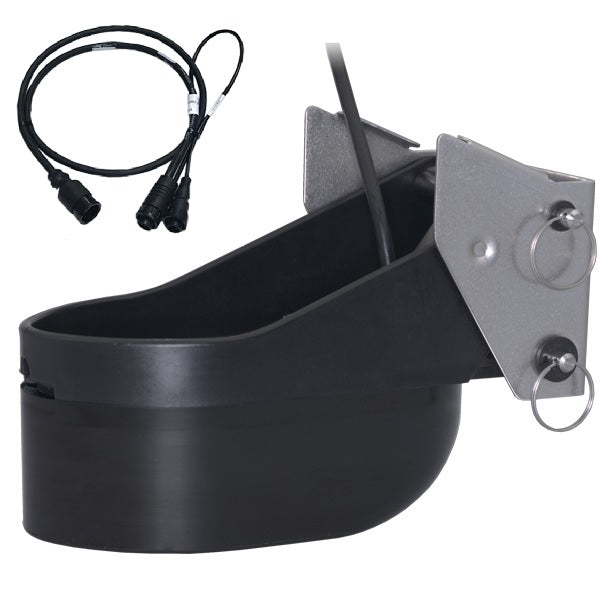

• TM275C‑LHW‑9N2 (Navico 2 9‑Pin Mix‑N‑Match Cable)

Key Features

• Dual‑channel Low/High Wide CHIRP operation

• Low frequency: 42–65 kHz (25°–16° beamwidth)

• High frequency: 150–250 kHz (25° constant beamwidth)

• 123 kHz total bandwidth for broad target coverage

• Doubles coverage area vs narrow‑beam transducers

• Fast‑response temperature sensor integrated

• Crisp mid‑water and bottom imaging for fish and structure

• Hull deadrise compatibility: up to 28°

• Acoustic window: Urethane for long‑term marine durability

Model Comparison

What’s in the Box

TM275C‑LHW‑BL2

• TM275C LHW Transom Mount Transducer

• Transom mount bracket and hardware

• Three 3° shims

• MMC‑BL2 Cable (Navico 7‑Pin Mix‑N‑Match Y Cable)

TM275C‑LHW‑9N2

• TM275C LHW Transom Mount Transducer

• Transom mount bracket and hardware

• Three 3° shims

• MMC‑9N2 Cable (Navico 2 9‑Pin Mix‑N‑Match)
