B&G Wind Sensors.

$577.00

~~$577.00~~ $577.00

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Sensor Type: Wired (NO Interface) Wired (NO Interface) Wired (With Interface) Wireless (With Wireless Interface)

Description

B&G WS310/WS320 Wind Sensors

Models:

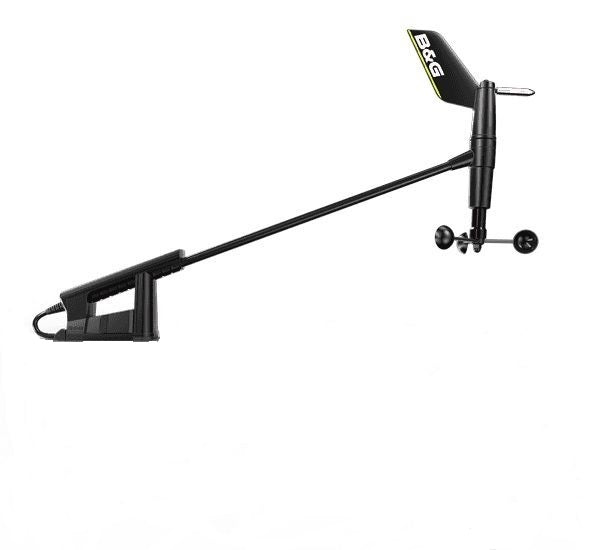

000-14391-001 – WS310 Wired Wind Sensor (Sensor Only)

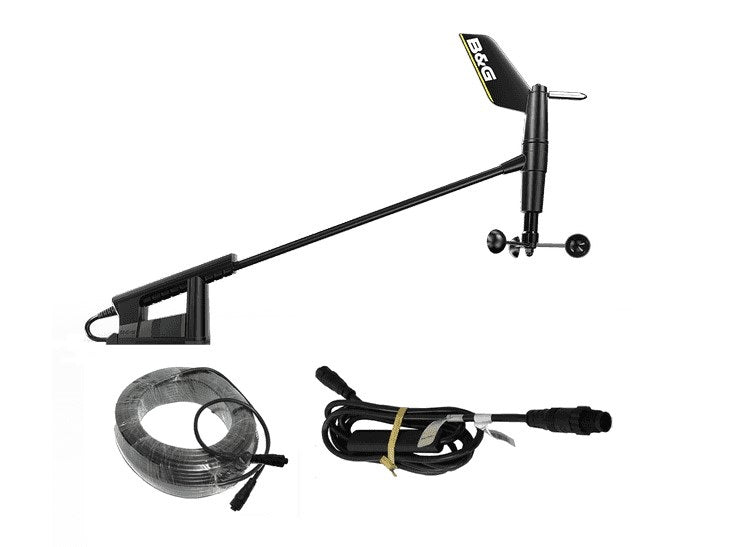

000-14382-001 – WS310 Wired Wind Sensor with 20m Cable & NMEA2000 Interface

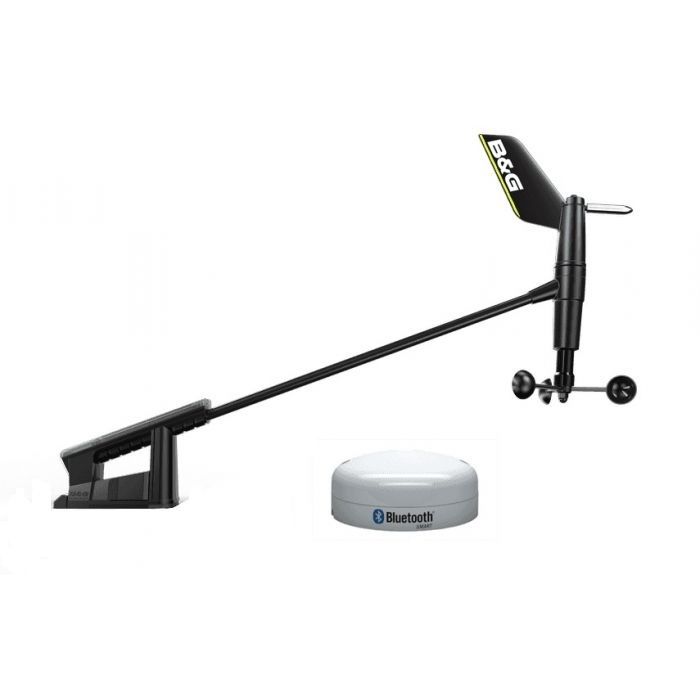

000-14383-001 – WS320 Wireless Wind Sensor with Interface

Product Description

B&G WS310/WS320 wind sensors deliver high-accuracy wind data (±0.5° angle, ±0.2kt speed) from 500+ wind tunnel tests, optimized for instruments and autopilots across all points of sail and heel angles. WS310 wired models offer single-cable installation up to 80m with NMEA0183/NMEA2000 output, while WS320 wireless provides cable-free mast mounting with 30m range, solar power, and 5Hz data updates for cruising/club racing.

Key Features

Aerodynamic design: ±0.5° angle / ±0.1m/s speed accuracy (1-40m/s), 0.25-50m/s range
WS310: IPX6/7 waterproof, -25°C to +65°C, NMEA0183 MWV@10Hz or NMEA2000
WS320: Wireless (≤30m), solar-powered, 5Hz apparent wind output, IPX6/7
20m mast cable option (000-14382-001), easy interface installation

Comparison Table

Feature	WS310 Sensor Only	WS310 w/ 20m Cable	WS320 Wireless
Connection	Wired	Wired (20m cable)	Wireless (30m)
Output	NMEA0183/2000	NMEA0183/2000	NMEA2000 (2 LEN)
Power	15mA @12V	15mA @12V	Solar
Data Rate	10Hz	10Hz	5Hz
Waterproof	IPX6/7	IPX6/7	IPX6/7
Cable Length	None	20m (65.5ft)	None (interface)
Interface Included	No	Yes	Yes (NMEA2000)

What's in the Box

000-14391-001: WS310 sensor only
000-14382-001: WS310 sensor, 20m mast cable, WS310 interface
000-14383-001: WS320 wireless sensor, wireless receiver interface, N2KEXT-6RD 6ft cable, N2K-T-RD T-connector
