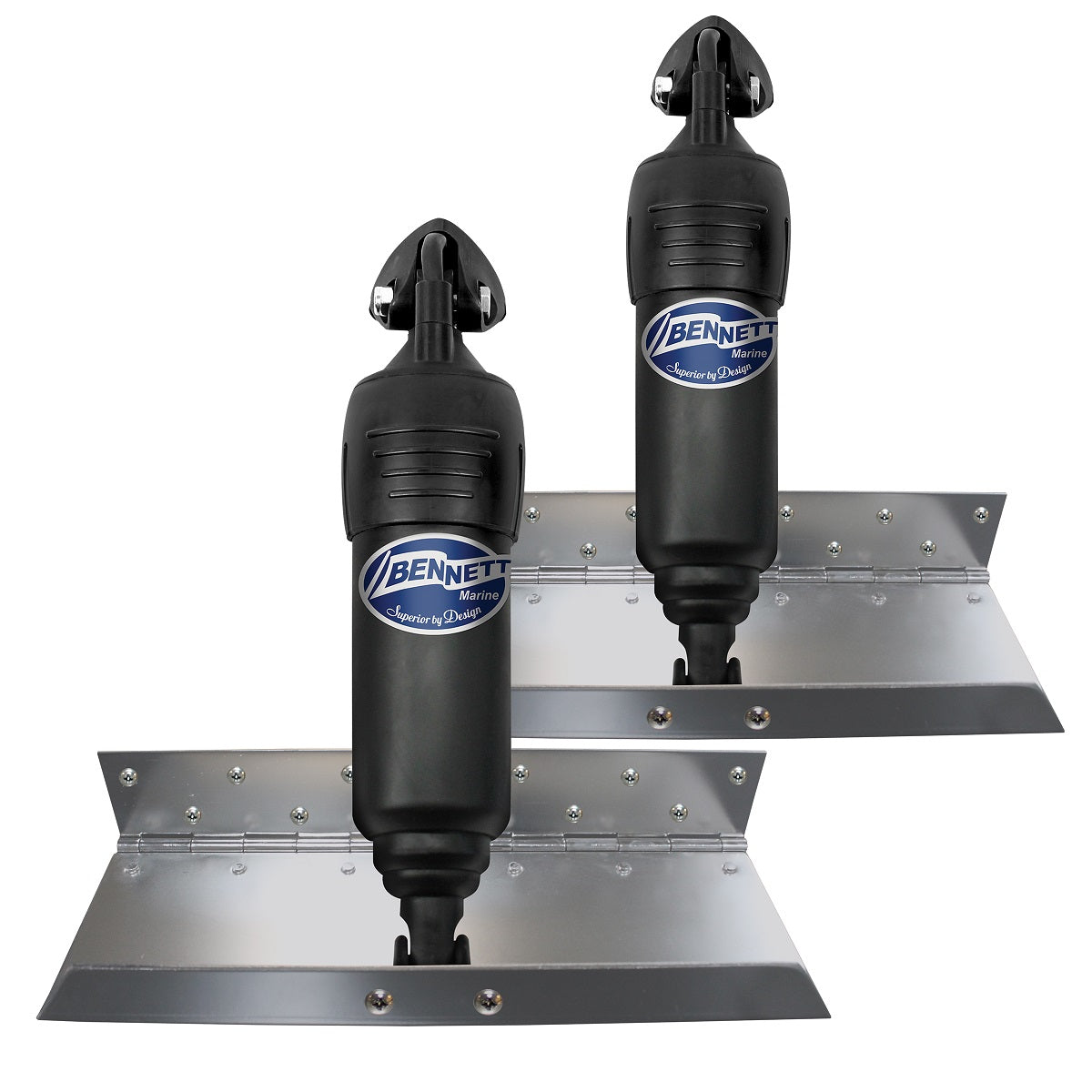

Bennett BOLT Electric Trim Tab Systems Standard Mount (Require Control).

Bennett BOLT Electric Trim Tab Systems (Standard Mount)

Models

BOLT124 – 12x4  Trim Tabs
BOLT129 – 12x9  Trim Tabs
BOLT1212 – 12x12  Trim Tabs
BOLT189 – 18x9  Trim Tabs
BOLT1812 – 18x12  Trim Tabs
BOLT249 – 24x9  Trim Tabs
BOLT2412 – 24x12  Trim Tabs

Product Description

The Bennett BOLT Electric Trim Tab Systems deliver cutting-edge performance for 17-28 foot trailered boats using advanced actuators that outperform and outlast legacy electric systems. Wires remain fully concealed and protected through the upper hinge with no exposure to marine environments, while robust water-tight black nylon actuators ensure trouble-free operation. High-positioned main seals prevent marine growth and water intrusion, creating the quietest trim tabs available that won't scare fish. Fast installation eliminates actuator disassembly needs, powered by "Superior by Design" technology addressing common failures in 20+ year old designs. Bennett Marine, electric trim tab inventors since 1960, recommends single actuator use per tab and requires separate controls like BRC4000, BCN6000, or BCI8000.

Key Features

• Wires concealed through upper hinge – zero marine exposure

• Robust water-tight black nylon actuators for reliable operation

• High main seal protects against marine growth and water intrusion

• Quietest system on market – fish-friendly performance

• Fast installation without actuator disassembly

• Designed for 17-28 foot trailered boats with single actuator per tab

• Superior technology resolves legacy system failures

• Stainless steel trim planes with mounting plates included

• Requires separate control: BRC4000 (Rocker), BCN6000 (Non-Indicator), BCI8000 (Indicator)

Comparison Table

What's in the Box

• (2) 12-volt actuators with 6ft wire harnesses and waterproof connectors

• (2) Stainless steel trim planes and mounting plates

• 20 ft wire harness with waterproof connectors

• Documentation
