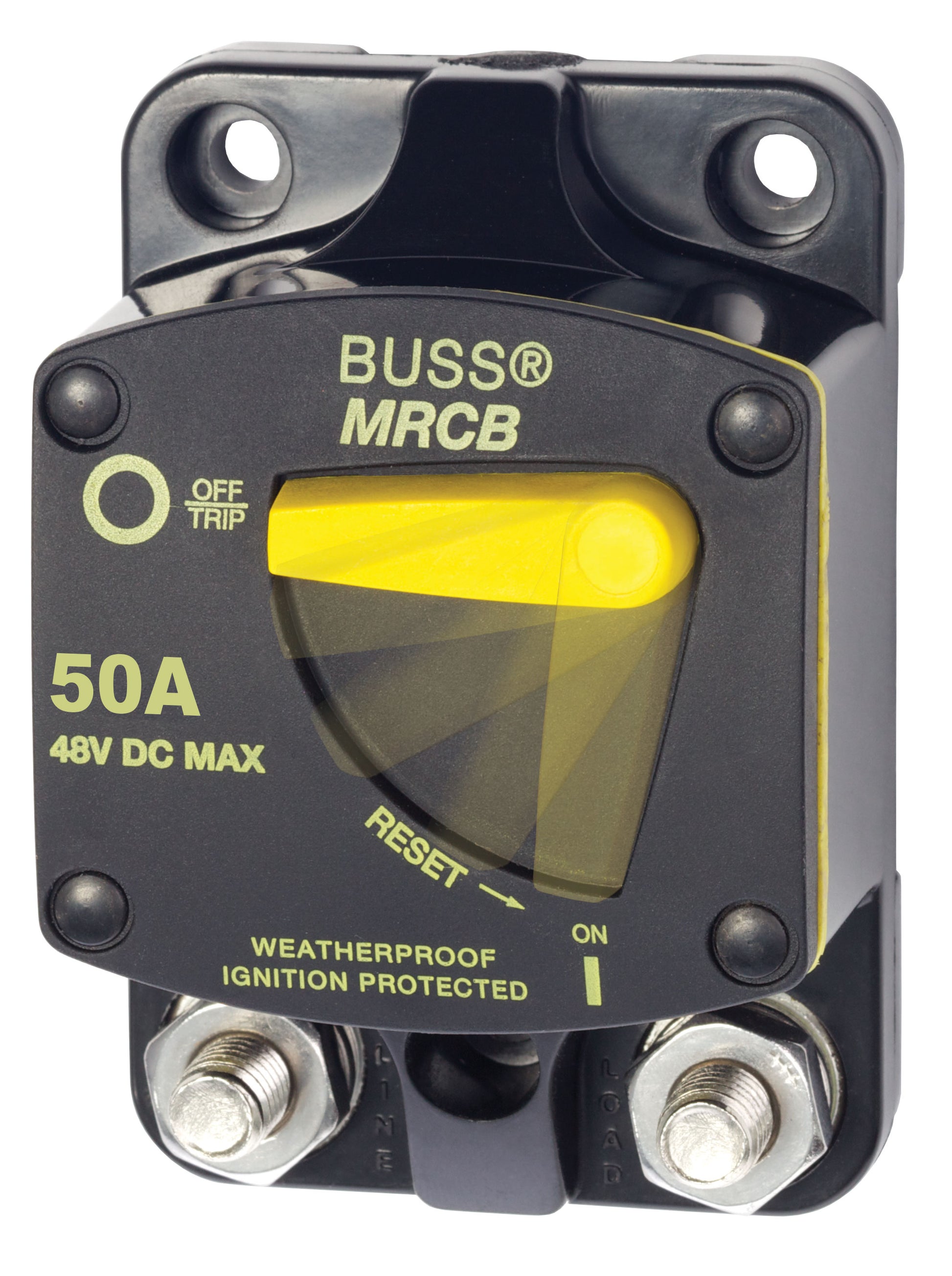

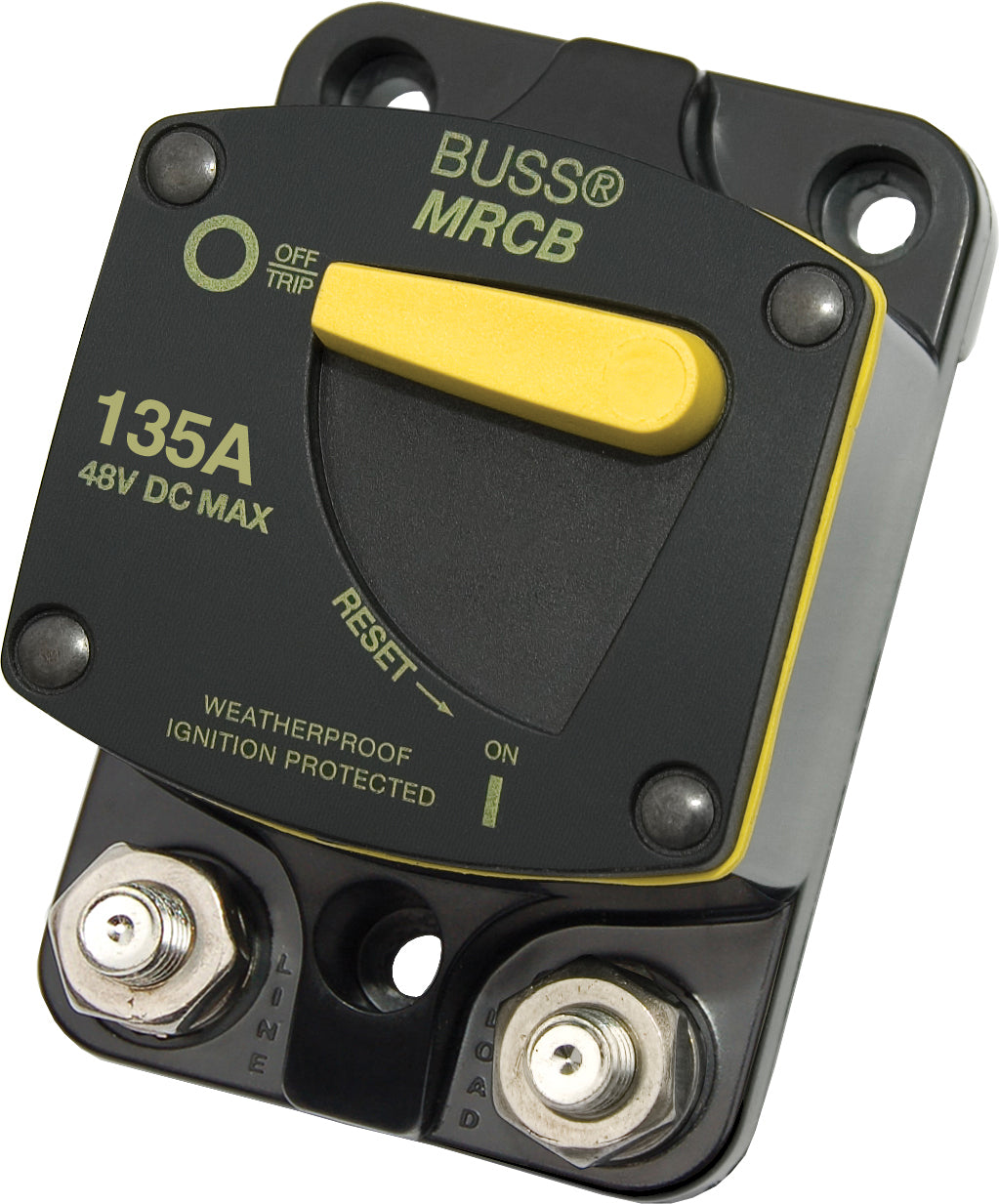

Blue Sea Systems 187-Series Surface Mount Circuit Breakers

Blue Sea Systems 187-Series surface mount circuit breakers combine switching and circuit protection in a single device, engineered to provide durable and reliable performance for 25 to 200 Amp loads. These breakers feature a clear, single lever operation and a "trip free" design that prevents the breaker from being held in the "ON" position during a fault current condition. They are ignition protected per SAE J1171, making them safe for installation aboard gasoline-powered boats, and weatherproof to withstand marine environments.

Key Features

• Combines switching and circuit protection into a single unit

• "Trip Free" design for enhanced safety

• Clear, single lever operation with visual indication of trip status via large lever orientation

• Waterproof construction with recessed mounting holes for a clean look

• Large clearance around robust 5/16" M8 terminal studs accept heavy-gauge wire lugs

• Ignition protected to meet SAE J1171 external ignition protection standards

• Thermally responsive bi-metal blade circuit breaker type

• Suitable for manual reset and circuit switching

• Recommended for applications up to 200A load with interrupt capacity of up to 5000A @ 12V DC

Specifications Comparison

Typical Use

The 187-Series breakers are ideal for marine and other heavy-duty DC electrical installations requiring reliable circuit protection with easy reset and visible status. They are commonly used for starters, lighting, and other medium to high current DC loads.
