Blue Sea Systems Terminal Blocks - 20A Series.

$7.99

~~$7.99~~ $7.99

Sold out

Shipping calculated at checkout.

Low stock: 7 left

Circuits: 4 4 6 8 10

Description

Blue Sea Systems Terminal Blocks - 20A Series

Models:

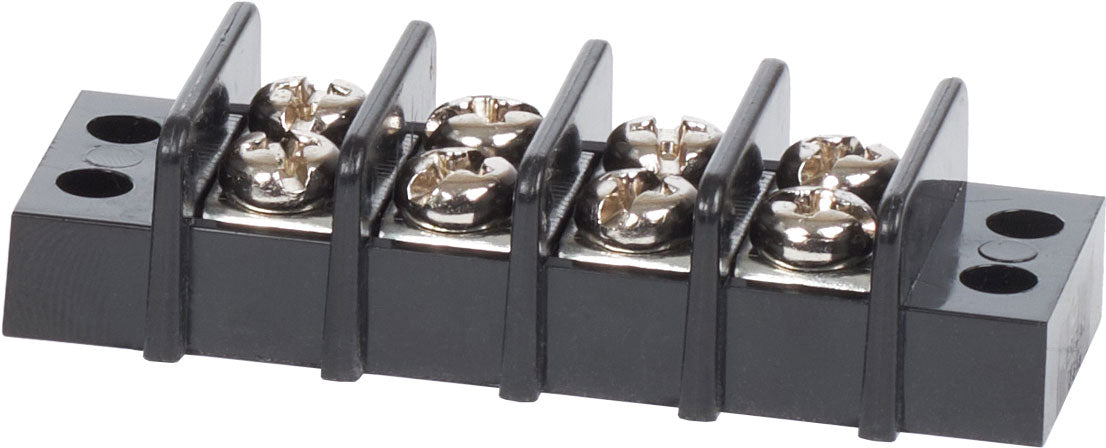

4 Circuit: 2404-BSS

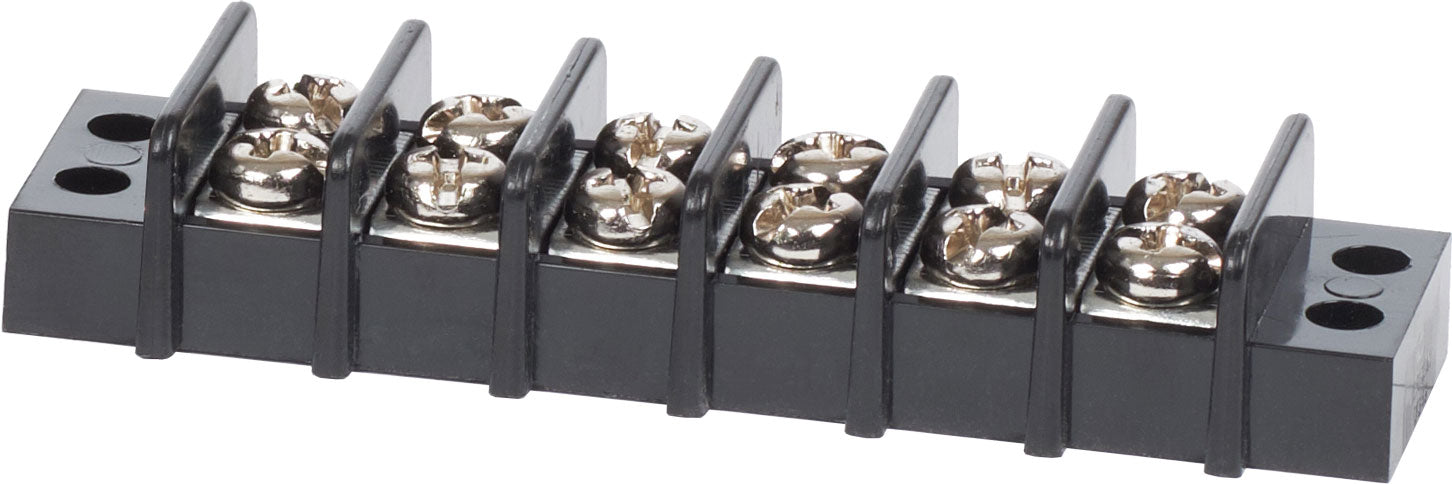

6 Circuit: 2406-BSS
8 Circuit: 2408-BSS

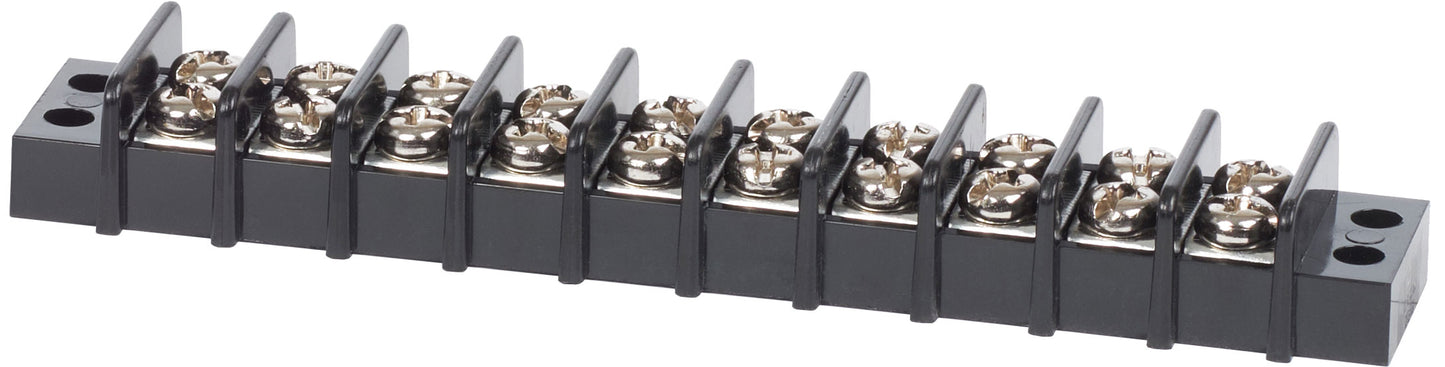

10 Circuit: 2410-BSS

Overview

Blue Sea Systems 20A Terminal Blocks feature a closed back design that completely insulates power from the mounting surface. Each pair of screws forms one isolated circuit, and jumpers are available to create common circuits, offering flexible wiring configurations for marine and industrial electrical systems.

Key Features

Closed back design for complete power insulation from mounting surfaces
Each screw pair is an independent, isolated circuit
Jumpers allow combining circuits for common bus wiring
Durable base material, UL 94 V0 rated polycarbonate (PC)
Nickel-plated brass bus material for excellent conductivity and corrosion resistance
Stainless steel mounting and terminal screws for long-term corrosion resistance
Screw terminal torque: 7 in-lb (0.79 Nm)
Accepts wire terminal size #6 [M3]

Specifications Comparison

Feature	2404-BSS (4 Circuit)	2406-BSS (6 Circuit)	2408-BSS (8 Circuit)	2410-BSS (10 Circuit)
Circuits	4	6	8	10
Length	2.17 in (55.12 mm)	2.91 in (73.91 mm)	2.17 in (55.12 mm)	4.41 in (112.01 mm)
Maximum Voltage	300V AC/DC	300V AC/DC	300V AC/DC	300V AC/DC
Continuous Rating	20A	20A	20A	20A
Base Material	UL 94 V0, Polycarbonate	UL 94 V0, Polycarbonate	UL 94 V0, Polycarbonate	UL 94 V0, Polycarbonate
Bus Material	Nickel-Plated Brass	Nickel-Plated Brass	Nickel-Plated Brass	Nickel-Plated Brass
Mounting Screw	#6 [M3.5]	#6 [M3.5]	#6 [M3.5]	#6 [M3.5]
Screw Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Screw Terminal Torque	7 in-lb (0.79 Nm)	7 in-lb (0.79 Nm)	7 in-lb (0.79 Nm)	7 in-lb (0.79 Nm)
Wire Terminal Size	#6 [M3]	#6 [M3]	#6 [M3]	#6 [M3]
