Vendor: Blue Sea Systems
Sku:
BSS2408

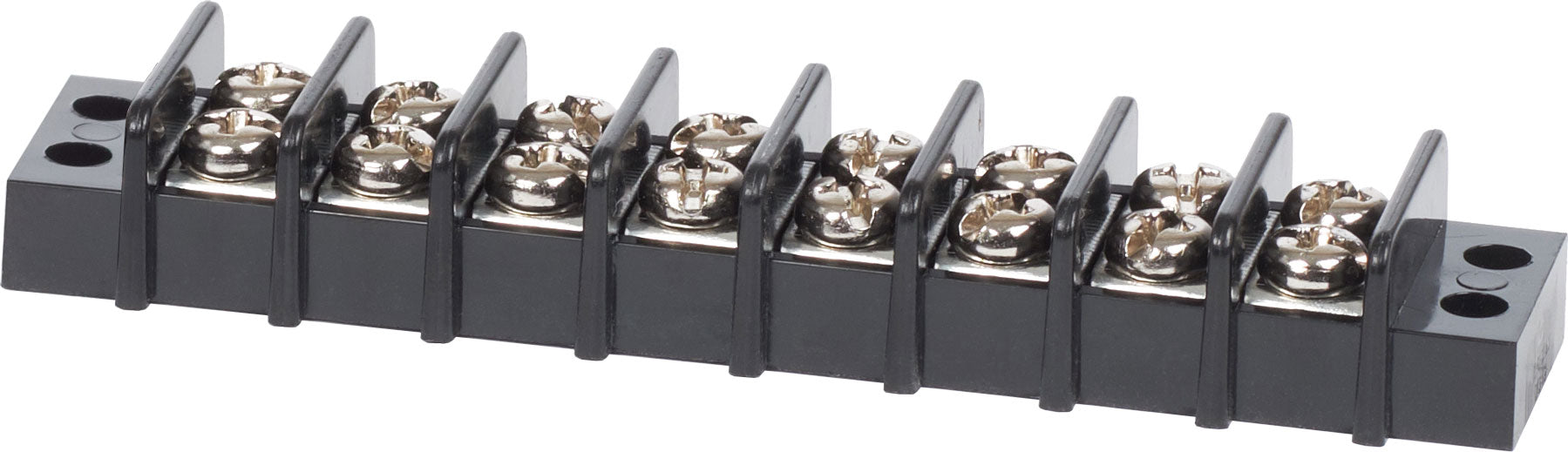

Blue Sea 20A Terminal Block 8 Circuit
Regular price
$10.99
Regular price
Sale price
$10.99
Unit price
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Description
Description
Blue Sea Systems Terminal Block 20A - 8 Circuit
Model: 2408-BSS
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
| Circuits | 8 |
| Length | 2.17in (55.12 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
Have a question?
Notified by email when this product becomes available
Blue Sea 20A Terminal Block 8..
$10.99
