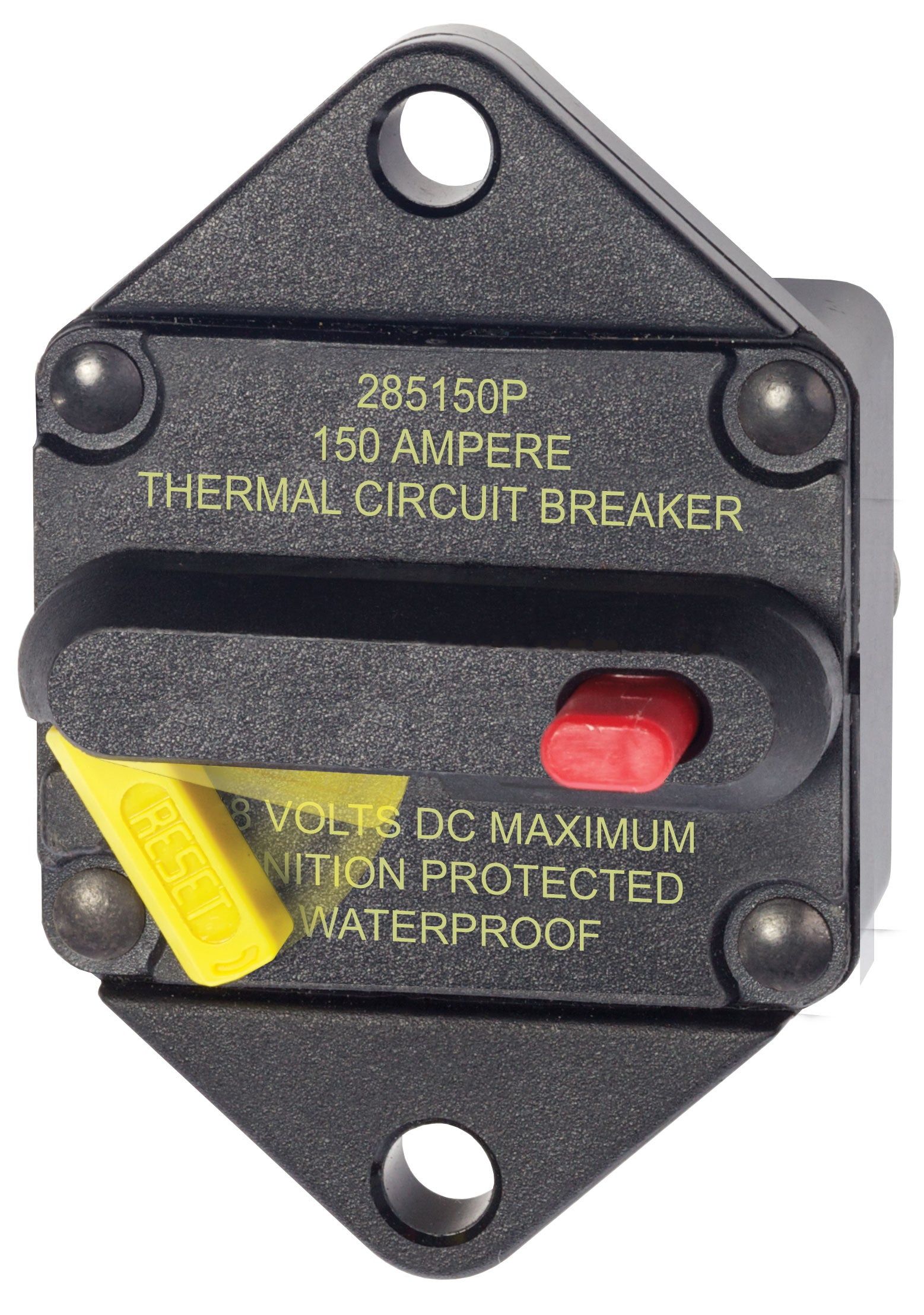

Blue Sea 285-Series Circuit Breaker Panel Mount.

Description

Blue Sea Systems 285-Series Circuit Breakers - Panel Mount

The Blue Sea Systems 285-Series circuit breakers provide medium-duty circuit protection combined with switching functionality. These thermal breakers are designed as drop-in replacements for the 185-Series, offering easy retrofit and installation. They are ignition protected, meeting SAE J1171 external ignition protection requirements, making them safe for gasoline-powered boats. The weather-resistant design with a visible reset lever that shows the open condition enhances safety by clearly indicating tripped circuits. The “Trip Free” design prevents the breaker from being held closed after tripping, ensuring reliable circuit protection.

Key Features

Thermal circuit breakers combining switching and protection
Drop-in replacement for 185-Series circuit breakers
Visible reset lever shows open condition for easy fault diagnosis
Ignition protected to SAE J1171 standards
Weather resistant with Type III switchable/manual reset trip free function
Suitable for operation between -40° C and 85° C
Terminal stud accepts 1/4" ring terminals (M6 stud size)
Interrupt capacity of 3000A at 48V DC

Available Models and Specifications

Model	Amperage	Max Voltage	Mounting	Terminal Stud Torque	Weight
7080-BSS	25A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7081-BSS	30A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7082-BSS	40A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7083-BSS	50A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7084-BSS	60A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7085-BSS	70A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7086-BSS	80A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7087-BSS	100A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7088-BSS	120A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb
7089-BSS	150A	48V DC	Panel Mount	60 in-lb (6.78 Nm)	~0.50 lb

Typical Use

Ideal for marine and industrial applications requiring medium duty circuit protection with the ability to manually reset. Provides reliable switching and fault protection in harsh environments.
