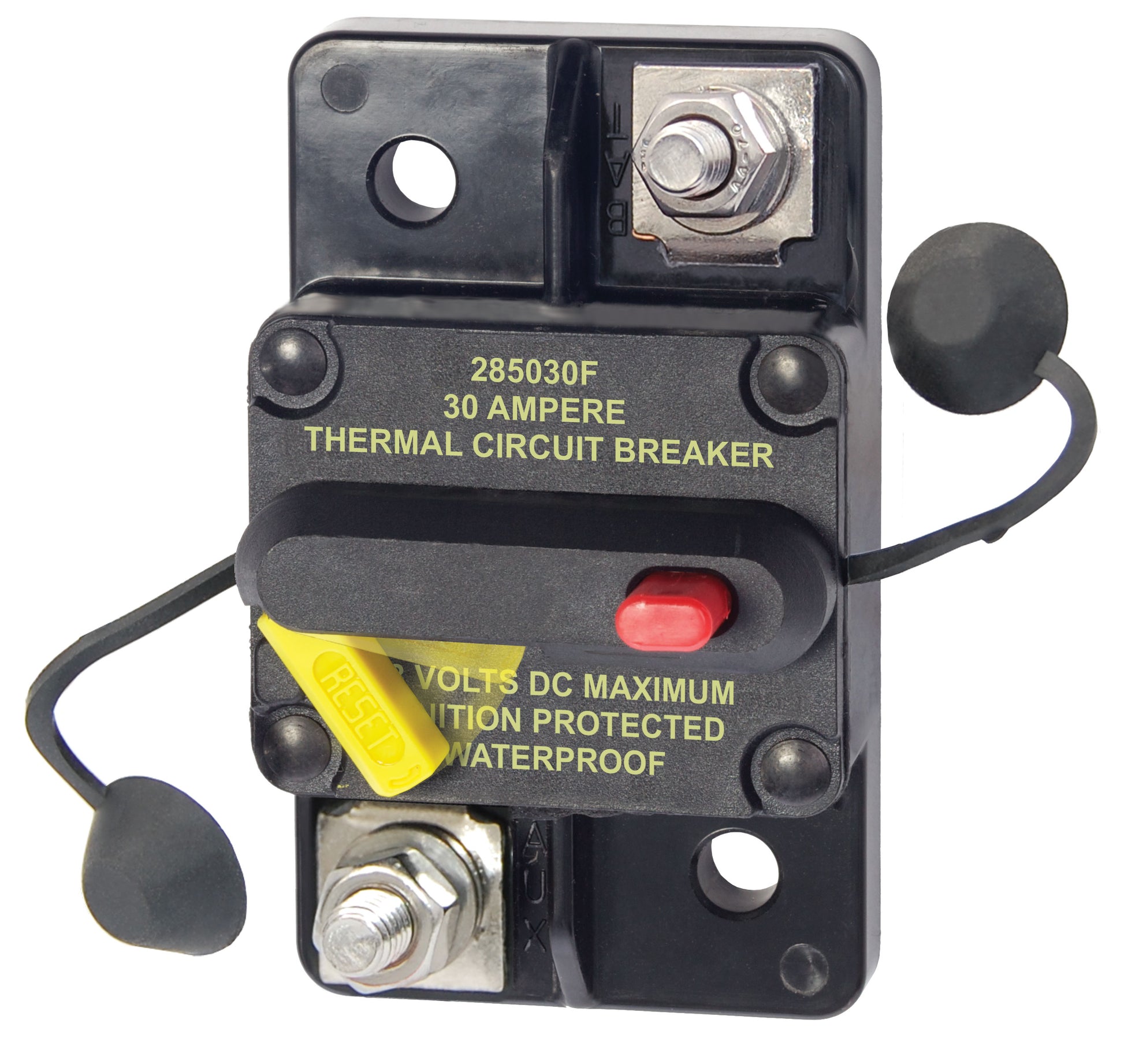

Blue Sea 285-Series Circuit Breaker Surface Mount Series.

Description

Blue Sea Systems 285-Series Surface Mount Circuit Breakers

The Blue Sea 285-Series Surface Mount Circuit Breakers provide medium-duty circuit protection for 25 to 150 Amp loads, combining switching and circuit protection in a single, compact unit. These breakers are designed as drop-in replacements for the 185-Series with the same dimensions for easy retrofit. They are ignition protected and meet SAE J1171 external ignition protection requirements, making them safe for installation aboard gasoline-powered boats. The devices are weather-resistant and feature a "trip-free" design that prevents the breaker from being held closed after a trip.

Key Features

Drop-in replacement for 185-Series Circuit Breakers
Visible reset lever shows open/tripped condition for easy status indication
Ignition protected and meets SAE J1171 external ignition protection standards
Weather resistant, suitable for marine environments
Combines switching and circuit breaker functions (Type III - trip free)
Thermally responsive bi-metal blade for reliable performance
"Trip Free" design for safety
M6 terminal studs accept 1/4" ring terminals
Manual trip and reset function
Rated to interrupt 3000A at 48V DC

Specifications Comparison

Model	Amperage	Maximum Voltage	Mounting	Terminal Stud Torque	Interrupt Capacity	Operating Temp Range	Circuit Breaker Class	Terminal Stud Size
7180-BSS	25A	48V DC	Surface Mount	60 in-lb (6.78 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7181-BSS	30A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7182-BSS	40A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7183-BSS	50A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7184-BSS	60A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7185-BSS	70A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7186-BSS	80A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7187-BSS	100A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7188-BSS	120A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)
7189-BSS	150A	48V DC	Surface Mount	50 in-lb (5.65 Nm)	3000A @ 48V DC	-40° C to 85° C	Type III - reset - trip free	M6 (accepts 1/4" Ring Terminal)

Typical Use

Designed for marine, automotive, and industrial applications requiring reliable circuit protection with manual reset and visible status. Suitable for engine starters, windlasses, and other medium to high current loads.
