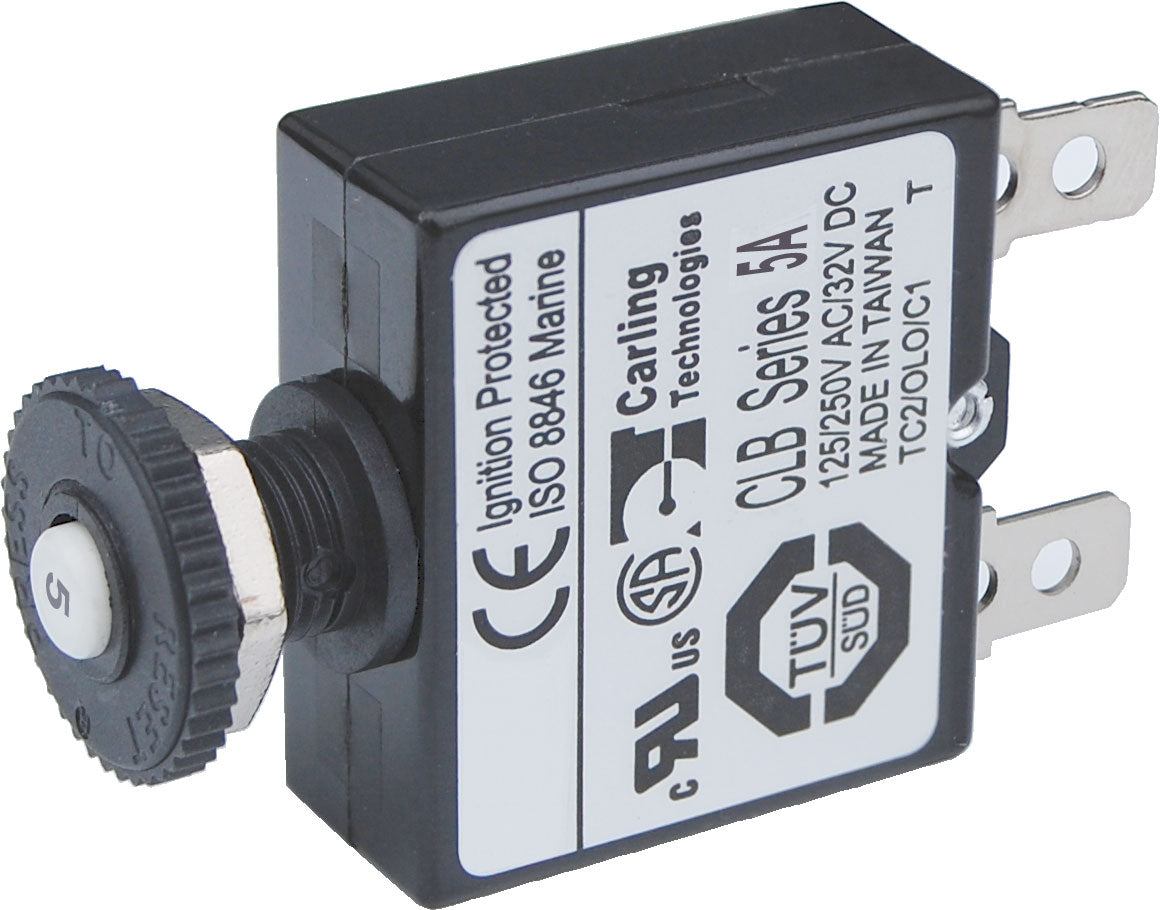

Blue Sea Push Button Reset Only Quick Connect Circuit Breakers.

Blue Sea Push Button Reset Only Quick Connect Circuit Breakers

Models:

• 3A: 7050-BSS

• 5A: 7052-BSS

• 7A: 7053-BSS

• 10A: 7054-BSS

• 15A: 7056-BSS

• 20A: 7057-BSS

• 25A: 7058-BSS

• 30A: 7059-BSS

• 40A: 7061-BSS

Overview

These push button reset only circuit breakers by Blue Sea Systems are designed for branch circuit protection and 24-hour circuit protection applications. The quick connect terminal style is utilized in Blue Sea WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. The compact design allows for high-density circuit protection configurations.

Key Features

• Push-to-reset operation with "Trip Free" design that prevents holding the breaker "ON" during a fault condition

• Ignition protected and safe for gasoline-powered boat installations

• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments, replacing the dress nut mounting and resisting discoloration and cracking

• Thermal trip, manual push-button reset only type

• 1/4 Male Quick Connect terminal for fast and secure connections

Specifications Comparison

These breakers are economical, compact, and reliable, ideal for marine circuit protection where switching is handled elsewhere or not required. They include ignition protection for safe use aboard gasoline-powered boats and optional waterproof boots for wet environments.
