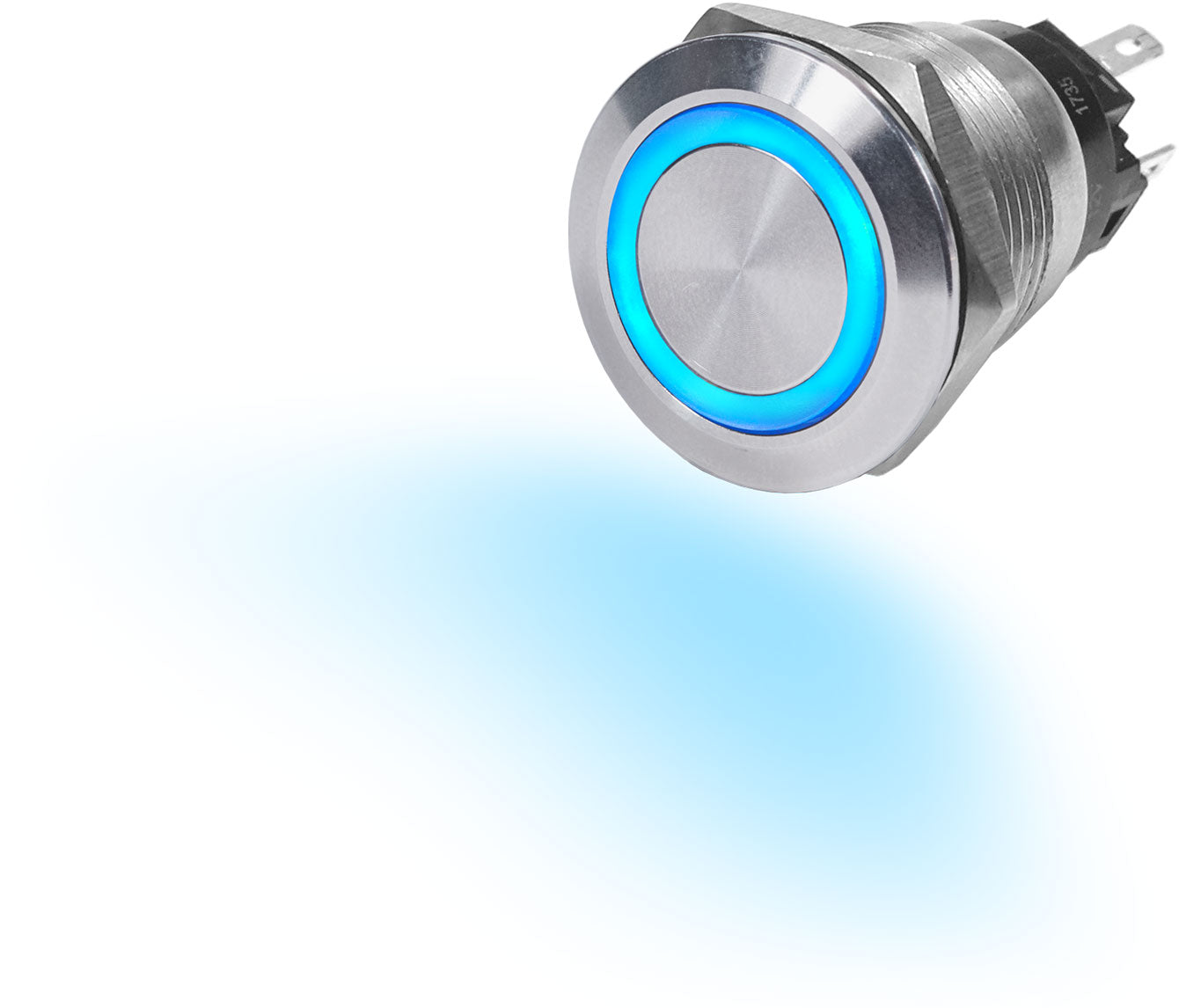

Blue Sea 10A Push Button LED Ring Switch Off-On - Blue.

$31.99

~~$31.99~~ $31.99

Sold out

Shipping calculated at checkout.

88 in stock

Action: OFF-ON OFF-ON OFF-(ON) Momentary On

Description

Blue Sea 10A Push Button LED Ring Switches - Blue

Models:

OFF-ON: 4160-BSS
OFF-(ON) Momentary On: 4161-BSS

Blue Sea 10A Push Button LED Ring Switches provide reliable, illuminated switching with blue rings that light up separately for status indication. Designed for 12V DC applications, these switches support continuous 10A resistive and 3A inductive loads and can be wired for normally open or normally closed configurations. The package includes .110 inch quick-connect terminals for quick, secure installation.

Key Features

Continuous 10A resistive and 3A inductive ratings
Can be configured for normally open or normally closed wiring
Independent LED ring with separate power contacts
Durable design rated for 40,000 switching cycles
Fits ¾" (19mm) mounting hole with 0.31" (7.87mm) max panel thickness
Includes 5 x 0.110 inch quick-connect terminals for installation

Specifications Comparison

Feature	4160-BSS (OFF-ON)	4161-BSS (OFF-(ON) Momentary On)
Action	OFF-ON	OFF-(ON) Momentary On
Amperage	10A Resistive @ 12V DC	10A Resistive @ 12V DC
Inductive Amperage	3A @ 12V	3A @ 12V
Nominal Voltage	12V DC	12V DC
Maximum LED Operating Current	20mA	20mA
Minimum Operating Temperature	-10°C	-10°C
Maximum Operating Temperature	70°C	70°C
Minimum Storage Temperature	-55°C	-55°C
Maximum Storage Temperature	85°C	85°C
Illumination	Independent LED ring	Independent LED ring
Max Panel Thickness	0.31 in (7.87 mm)	0.31 in (7.87 mm)
Mounting Hole Diameter	¾" (19 mm)	¾" (19 mm)
Switching Cycles	40,000	40,000
Termination	5 x 0.110" quick-connect terminals	5 x 0.110" quick-connect terminals
