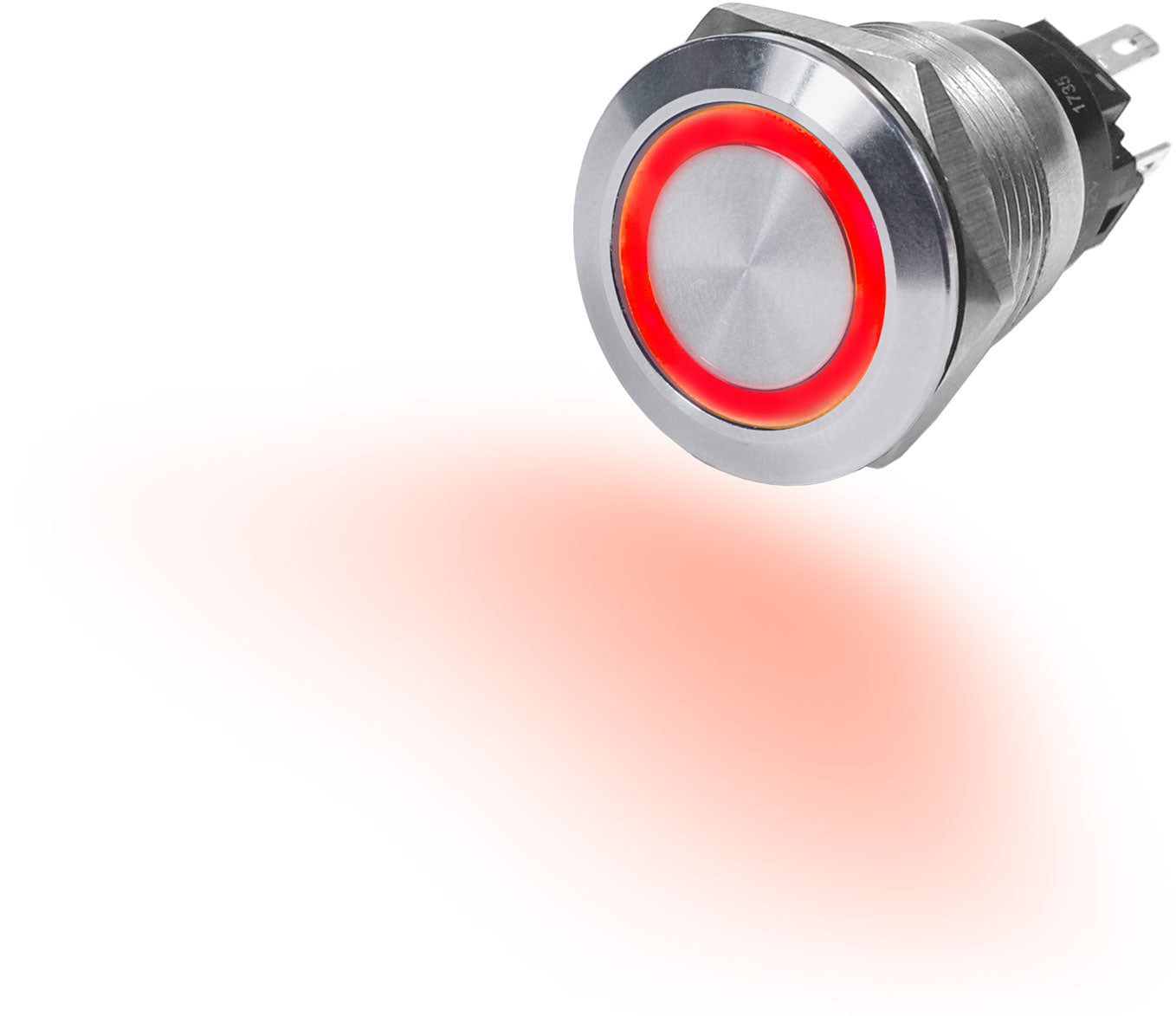

Blue Sea 10A Push Button LED Ring Switch Off-On - Red.

$31.99

~~$31.99~~ $31.99

Sold out

Shipping calculated at checkout.

29 in stock

Action: OFF-ON OFF-ON OFF-(ON) Momentary One

Description

Blue Sea 10A Push Button LED Ring Switches - Red

Models:

OFF-ON: 4162-BSS
OFF-(ON) Momentary On: 4163-BSS

Blue Sea 10A Push Button LED Ring Switches offer robust and versatile control with a distinct illuminated ring. Designed for 12V DC systems, these switches support continuous 10A resistive and 3A inductive loads. They can be wired for normally open or normally closed operation and include .110 inch quick-connect terminals for easy installation.

Key Features

Continuous 10A resistive, 3A inductive load rating
Suitable for normally open or normally closed wiring configurations
Independent LED ring illumination with separate power contacts
Robust design rated for 40,000 switching cycles
Fits standard ¾" (19 mm) mounting hole
Maximum panel thickness of 0.31 in (7.87 mm)
Quick connect terminals (.110 inch) included

Specifications Comparison

Feature	4162-BSS (OFF-ON)	4163-BSS (OFF-(ON) Momentary On)
Action	OFF-ON	OFF-(ON) Momentary One
Amperage	10A Resistive @ 12V DC	10A Resistive @ 12V DC
Inductive Amperage	3A @ 12V	3A @ 12V
Nominal Voltage	12V DC	12V DC
Maximum LED Operating Current	20mA	20mA
Minimum Operating Temperature	-10°C	-10°C
Maximum Operating Temperature	70°C	70°C
Minimum Storage Temperature	-55°C	-55°C
Maximum Storage Temperature	85°C	85°C
Illumination	Independent LED ring	Independent LED ring
Max Panel Thickness	0.31 in (7.87 mm)	0.31 in (7.87 mm)
Mounting Hole Diameter	¾" (19 mm)	¾" (19 mm)
Switching Cycles	40,000	40,000
Termination	5 x 0.110" quick-connect terminals	5 x 0.110" quick-connect terminals
