Vendor: Blue Sea Systems
Sku:
BSS4163

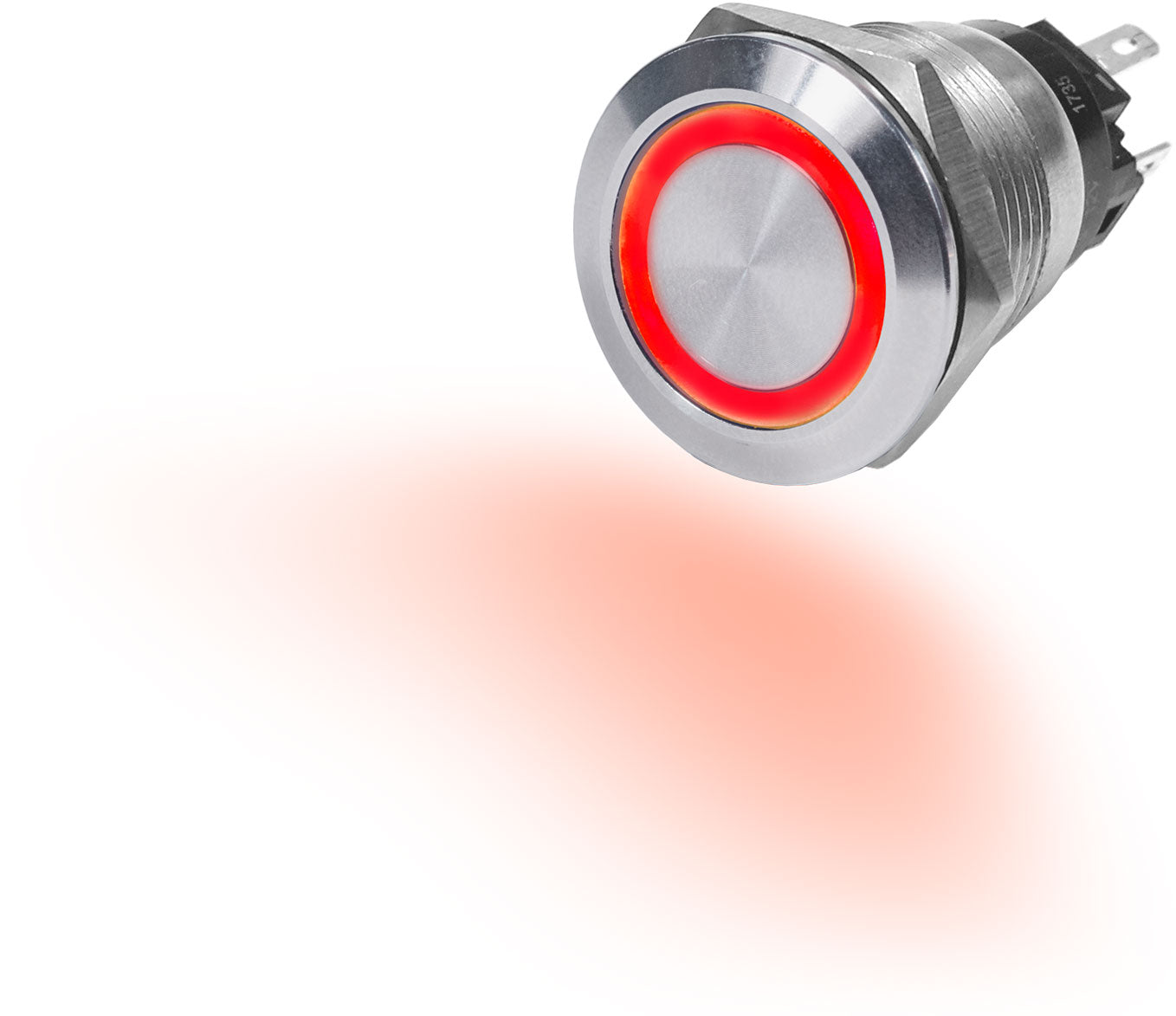

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On
Regular price
$27.95
Regular price
Sale price
$27.95
Unit price
per
Shipping calculated at checkout.
15 in stock
Couldn't load pickup availability
Description
Description
Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On
Model: 4163-BSS
- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
| Action | OFF-(ON)- Momentary One |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 70° C |
| Minimum Storage Temperature | -55° C |
| Maximum Storage Temperature | 85° C |
| Illumination | Independent — Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | ¾" (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 — 0.110inch Quick Connect terminals |
