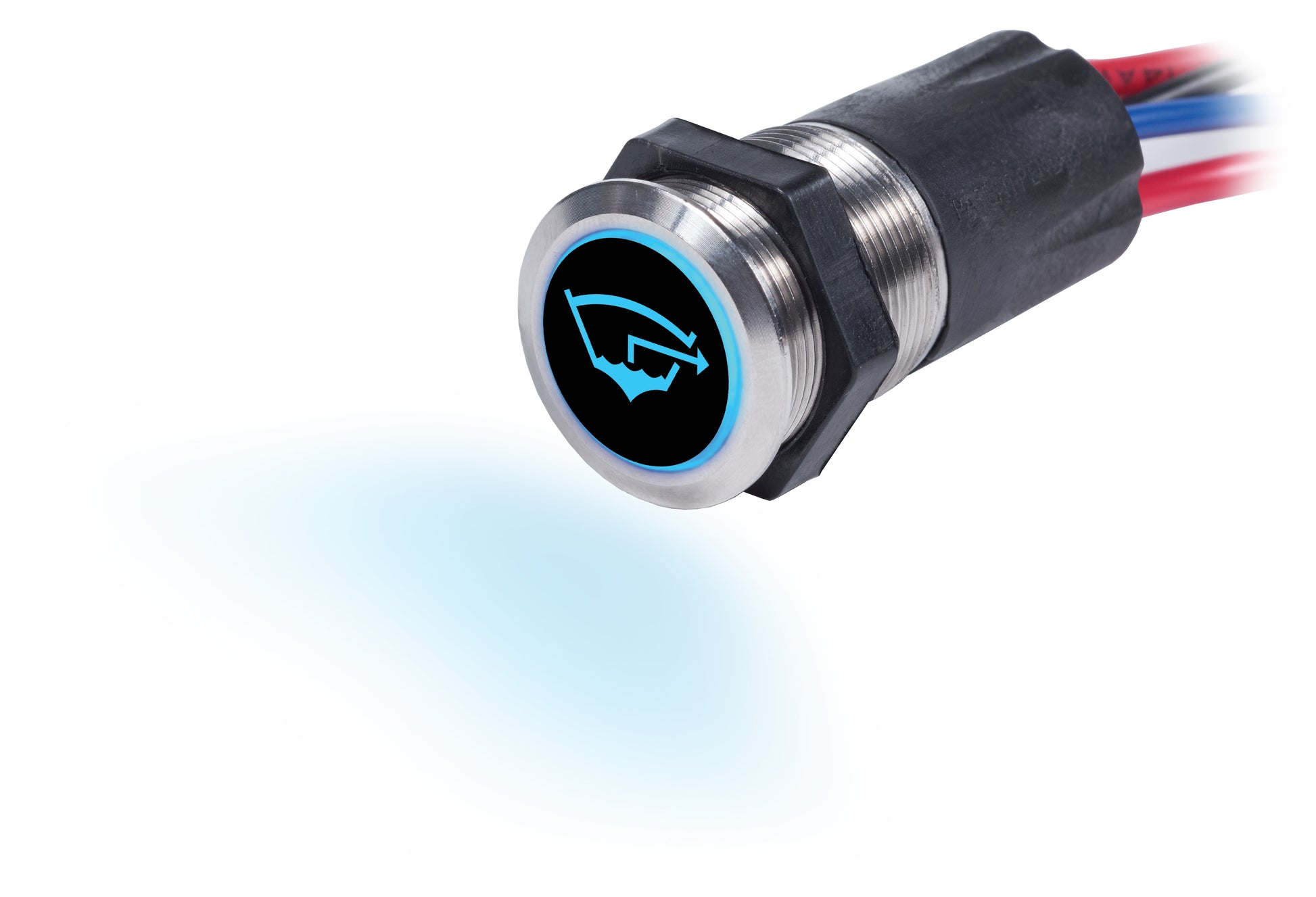

Blue Sea 15A Push Button Backlit Switches.

Blue Sea 15A Push Button Backlit Switches

Models:

• Off-On: 4180-BSS

• Off-(On) Momentary On: 4181-BSS

Blue Sea 15A Push Button Backlit Switches feature intuitive colored backlighting — blue when OFF and red when ON — making status identification easy even in low light. Each switch comes with five ICON labels for common functions such as Accessory, Lights, Anchor Light, Running Light, and Bilge Pump for ease of installation and customization.

Key Features

• Backlit button: blue OFF, red ON

• Five ICON labels included for common marine functions

• Designed for 12V DC systems with 15A current capacity

• Compact, easy-to-install design with 7/8" mounting hole

• Maximum panel thickness: 0.24 in (6.1 mm)

• Terminated with 3" bare wire pigtail

• Rated for 10,000 switching cycles

• Temperature range suitable for marine use: -20°C to 55°C

Specifications Comparison

What’s in the Box

• 1 × Push button switch (model specific)

• Five ICON labels (Accessory, Lights, Anchor Light, Running Light, Bilge Pump)
