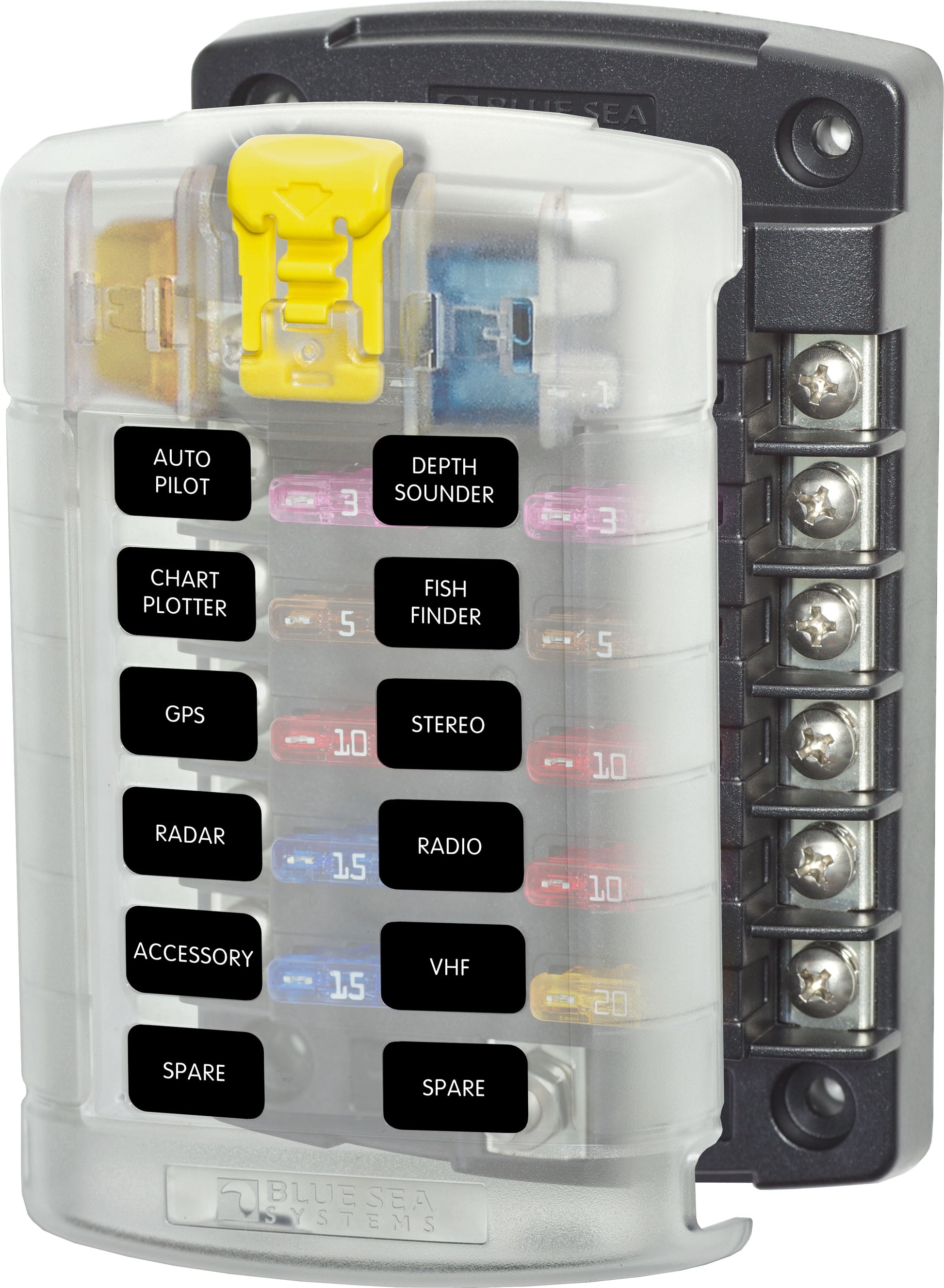

Blue Sea 5029 12-Gang Fuse Block ST ATO/ATC with Cover
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Description
Description
Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Cover
Model: 5029-BSS
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Specifications
| Circuits | 12 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
