Vendor: Blue Sea Systems
Sku:
BSS5046

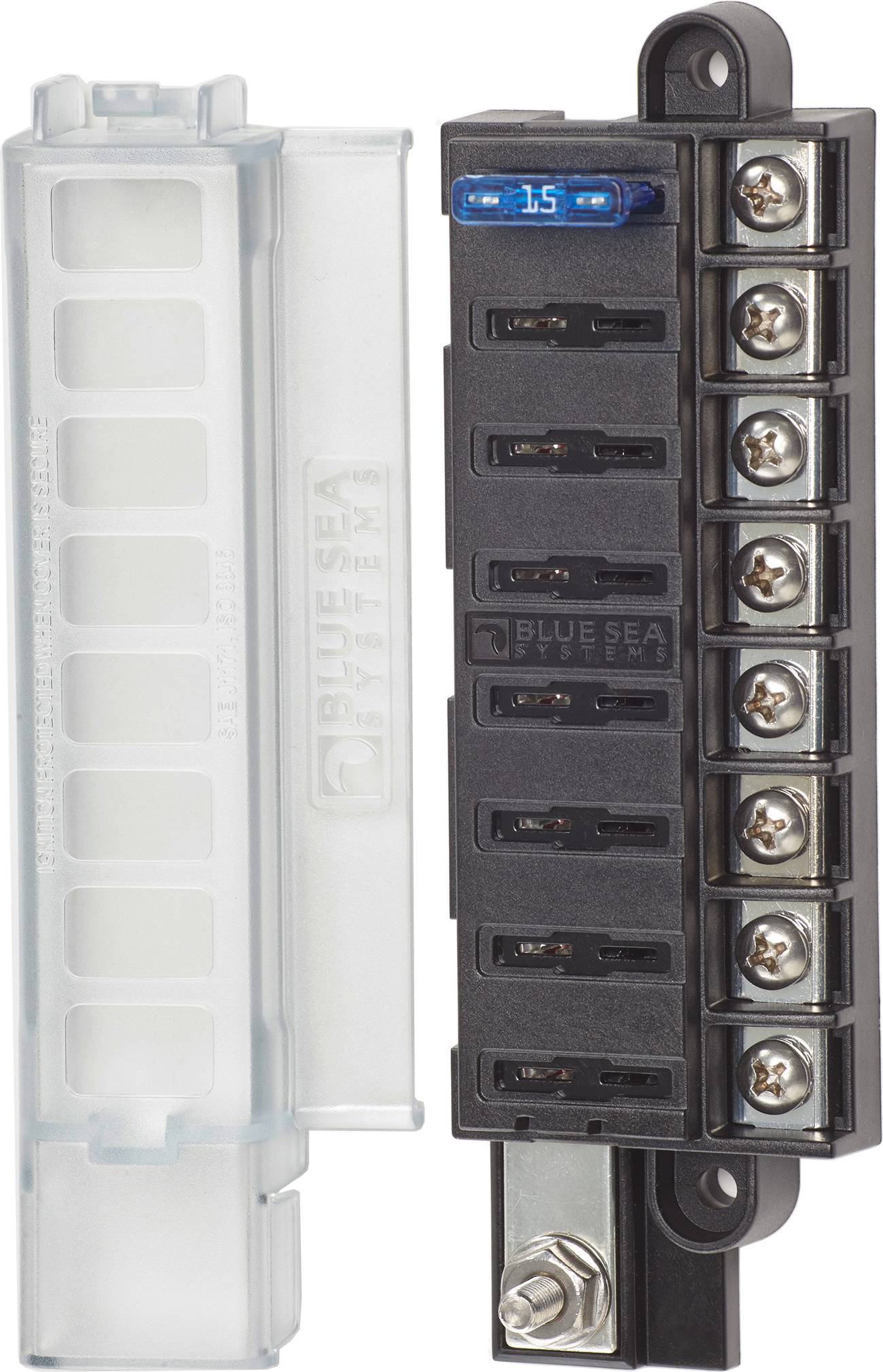

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover
Regular price
$49.95
Regular price
Sale price
$49.95
Unit price
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Description
Description
Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits
Model: 5046-BSS
- Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
Specifications
| Circuits | 8 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Terminal Stud Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Scews with captive star lock washer |
| Terminal Stud Size | #10-32 |
