Blue Sea Systems ELCI Double Pole Main Circuit Breaker Series.

$524.95

~~$544.99~~ $524.95

Sold out

-4%

Shipping calculated at checkout.

Low stock: 2 left

Actuator & Poles : Toggle -2 Toggle -2 Flat Rocker -2 Flat Rocker -3

Description

Blue Sea Systems ELCI Main Circuit Breakers

Models:

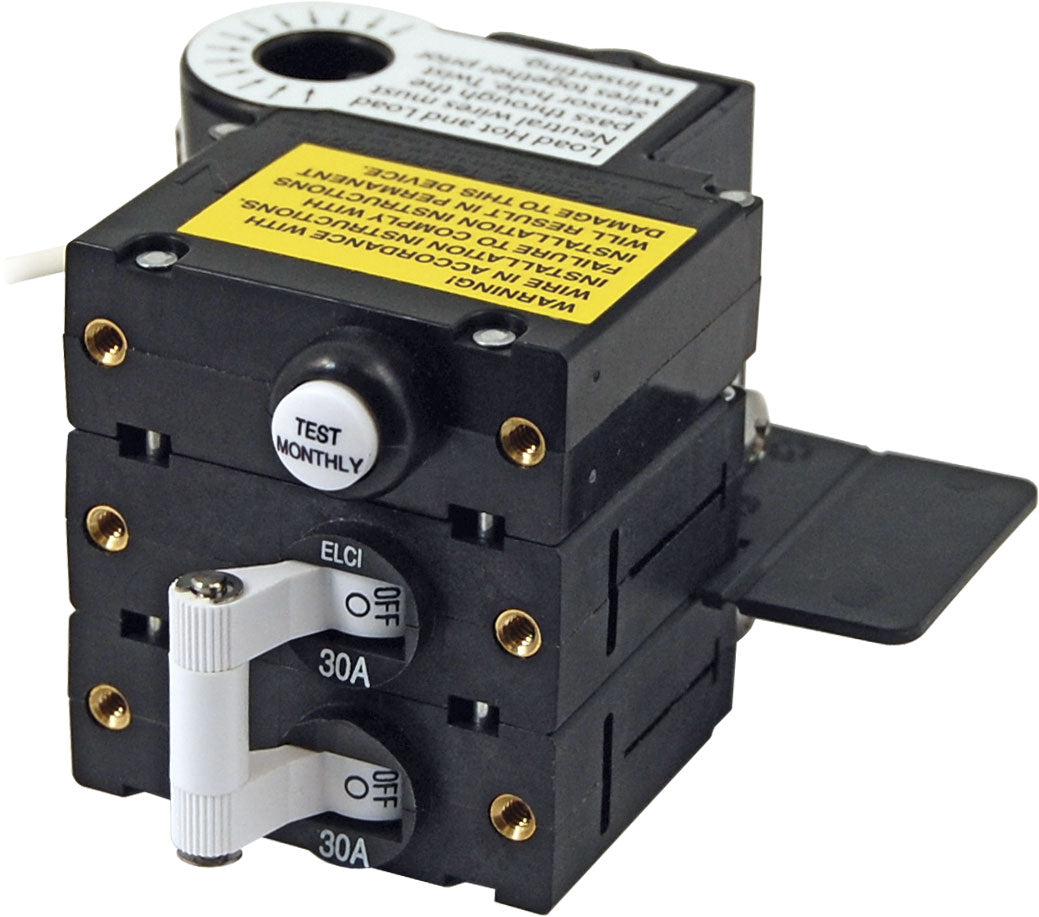

A-Series Double Pole 120V AC 30A: 3106100-BSS

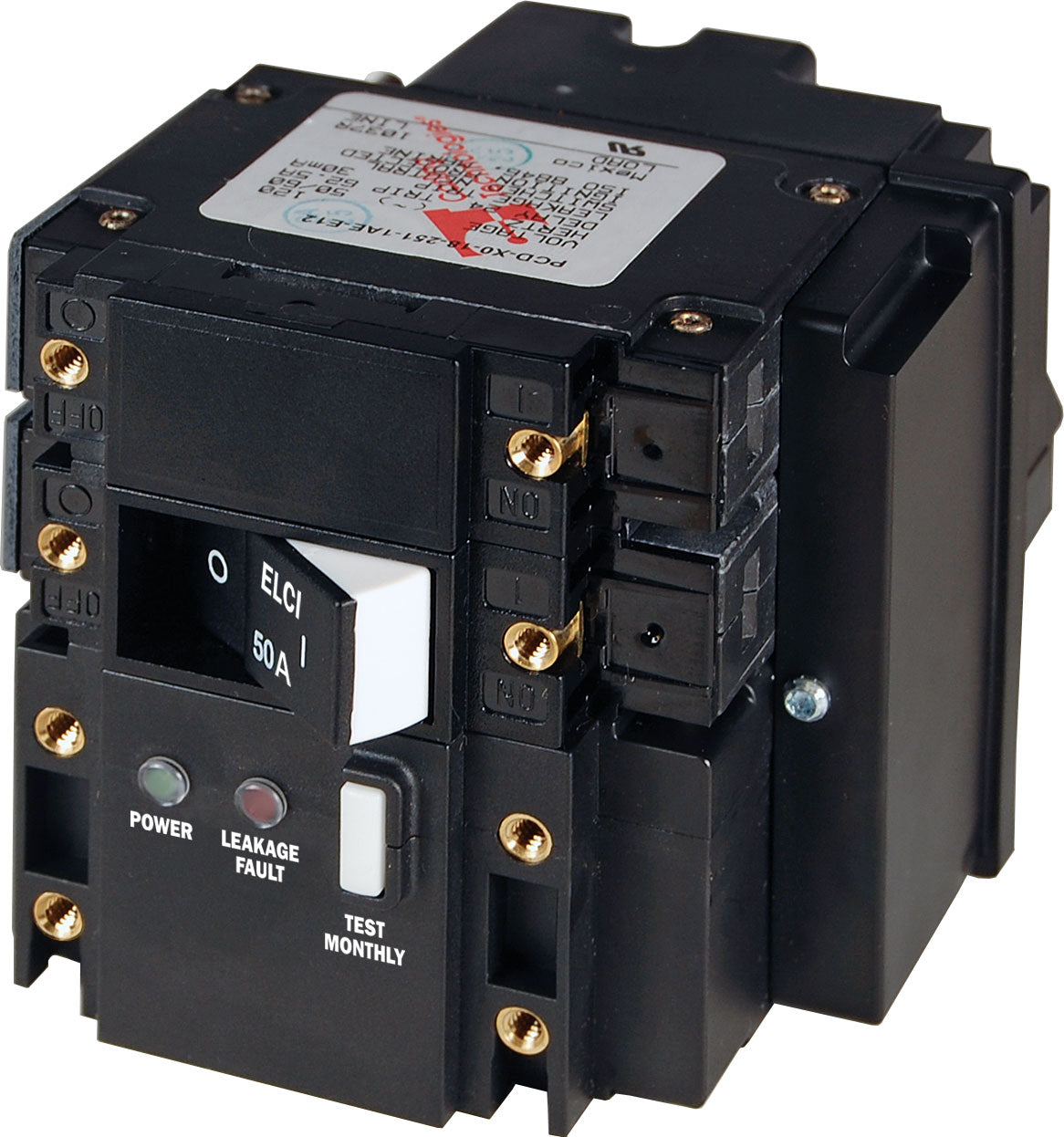

C-Series Double Pole 120V AC 50A: 3103-BSS

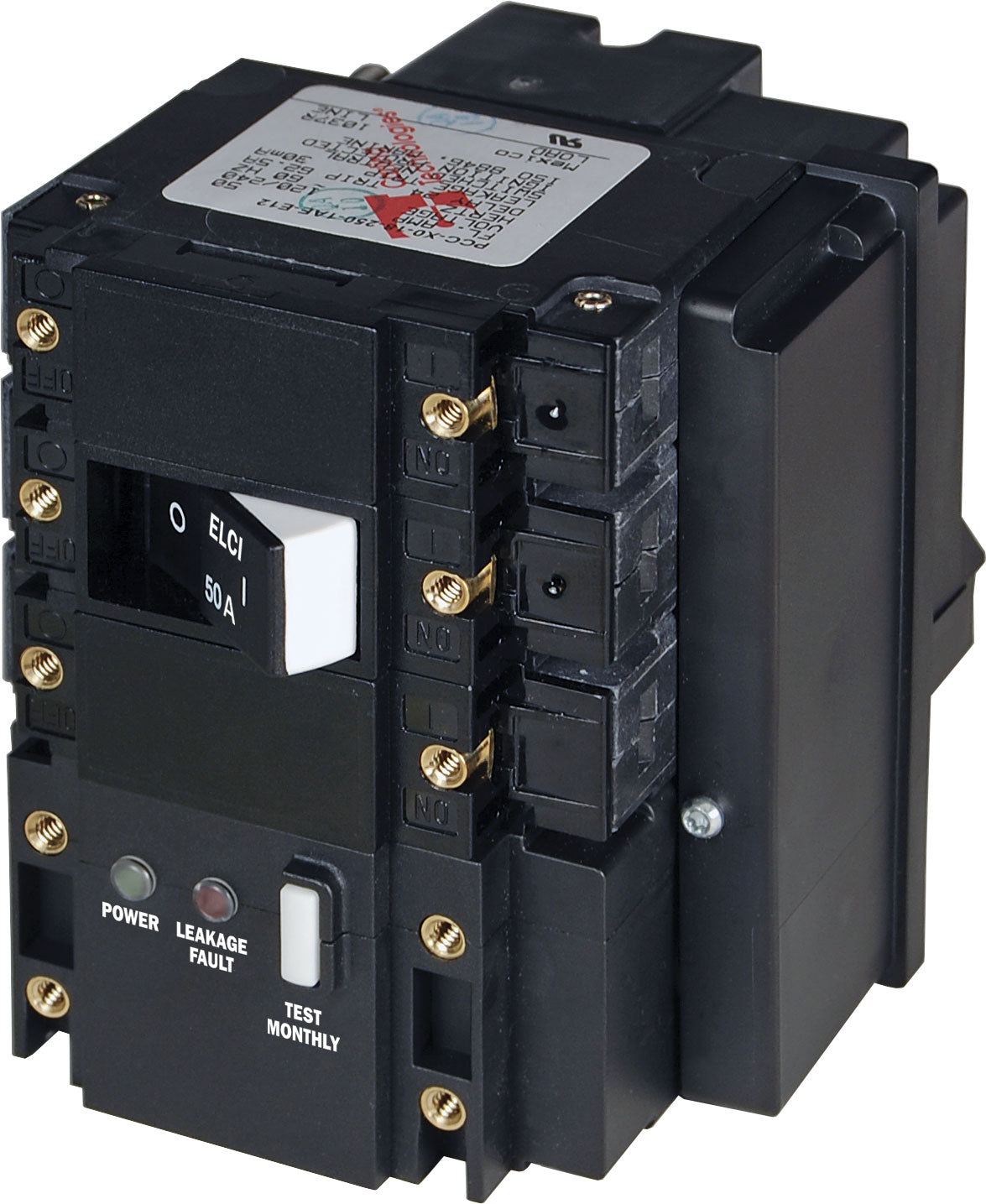

C-Series Triple Pole 120/240V AC 50A: 3104-BSS

Overview

These Blue Sea Systems ELCI (Equipment Leakage Circuit Interrupter) Main Circuit Breakers provide reliable protection against short circuits, overloads, and leakage to ground, designed for whole boat shore power protection. They are front panel mountable, fitted in power distribution panels, and meet ABYC E-11 standards with UL 1500 external ignition protection, suitable for marine applications.

Key Features

Trips on short circuit, overload, or leakage to ground
Magnetic hydraulic trip free circuit breaker type for reliable fault clearing
Ignition protected for safe use on gasoline-powered boats
Meets ABYC E-11 and UL 1500 standards for marine safety and ignition protection
Front panel mount installation design
Leakage trip amps: nominal 30mA for ground fault protection
Stainless steel mounting screws with precise torque values

Specifications Comparison

Feature	3106100-BSS (A-Series 30A)	3103-BSS (C-Series 50A Double Pole)	3104-BSS (C-Series 50A Triple Pole)
Amperage	30A	50A	50A
Poles	2	2	3
Actuator Style	Toggle	Flat Rocker	Flat Rocker
Maximum Voltage	240V AC (120V AC per pole)	120V AC per pole	120/240V AC per pole
Circuit Breaker Type	Magnetic Hydraulic - trip free	Magnetic Hydraulic - trip free	Magnetic Hydraulic - trip free
Interrupt Capacity	5000A	5000A	5000A
Leakage Trip Amps	30 mA	30 mA	30 mA
Ignition Protected	Yes	Yes	Yes
Minimum Operating Temperature	-35° C	-35° C	-35° C
Maximum Operating Temperature	(Unspecified)	66° C	66° C
Mounting Screw	#6-32 Stainless Steel	#6-32 Stainless Steel	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)	6 in-lb (0.68 Nm)	6 in-lb (0.68 Nm)
Switching Cycles	(Unspecified)	10,000	10,000
Weight	(Unspecified)	0.85 lb (0.39 kg)	0.85 lb (0.39 kg)
