Blue Sea Cable Clam Series.

$28.99

~~$28.99~~ $28.99

Sold out

Shipping calculated at checkout.

Low stock: 5 left

Cable Diameter: 0.31 in (7.87 mm) 0.31 in (7.87 mm) 0.44 in (11.18 mm) 0.56 in (14.22 mm)

Description

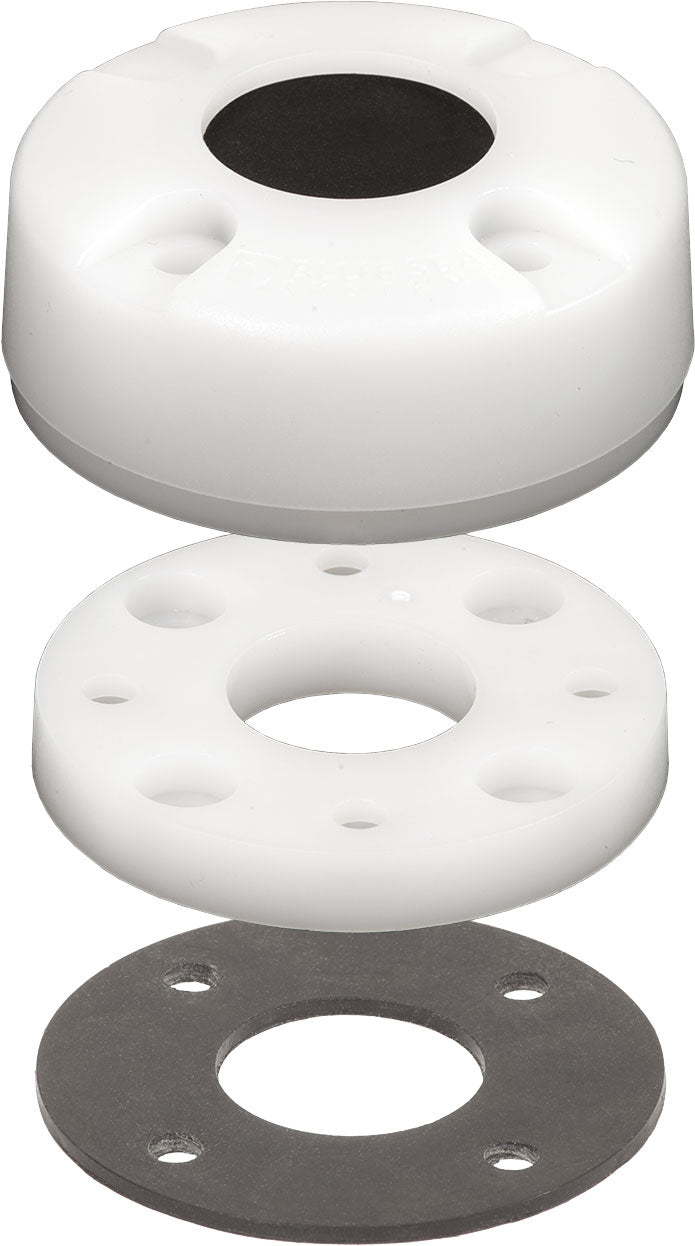

Blue Sea Systems CableClam Coaxial Cable Pass-Throughs

Models:

0.68" CableClam: 1001-BSS
0.83" CableClam: 1002-BSS
1.40" CableClam: 1003-BSS

Overview

Blue Sea Systems CableClam coaxial cable pass-throughs are ideal for waterproof antenna installations above the waterline. These units provide a watertight seal allowing coaxial installation without removing factory-installed connectors, preventing costly connector removal and avoiding potential poor connections from reassembly. Each model offers durable, UV-resistant materials suitable for marine environments.

Key Features

Enables waterproof coaxial cable pass-through without removing connectors
Saves cost and risks associated with connector removal and replacement
Designed for use above the waterline only
Body made of Acetal with UV-stabilized thermoplastic ring
Stainless steel screws ensure corrosion resistance
Seal made of UV-stabilized Buna-N rubber for reliable sealing

Specifications Comparison

Feature	1001-BSS (0.68")	1002-BSS (0.83")	1003-BSS (1.40")
Max Cable Diameter	0.31 in (7.87 mm)	0.44 in (11.18 mm)	0.56 in (14.22 mm)
Max Connector Diameter	0.68 in (17.27 mm)	0.83 in (21.08 mm)	1.40 in (35.56 mm)
Body Material	Acetal	Acetal	Acetal
Ring Material	UV-Stabilized Thermoplastic	UV-Stabilized Thermoplastic	UV-Stabilized Thermoplastic
Screws	Stainless Steel	Stainless Steel	Stainless Steel
Seal Material	UV-Stabilized Buna-N Rubber	UV-Stabilized Buna-N Rubber	UV-Stabilized Buna-N Rubber
