Blue Sea CableClam Stainless Steel Covers Series.

$38.99

~~$38.99~~ $38.99

Sold out

Shipping calculated at checkout.

Low stock: 6 left

Cable Diameter: 0.31 in (7.87 mm) 0.31 in (7.87 mm) 0.44 in (11.18 mm) 0.56 in (14.22 mm)

Description

Blue Sea Systems CableClam Stainless Steel Covers

Models:

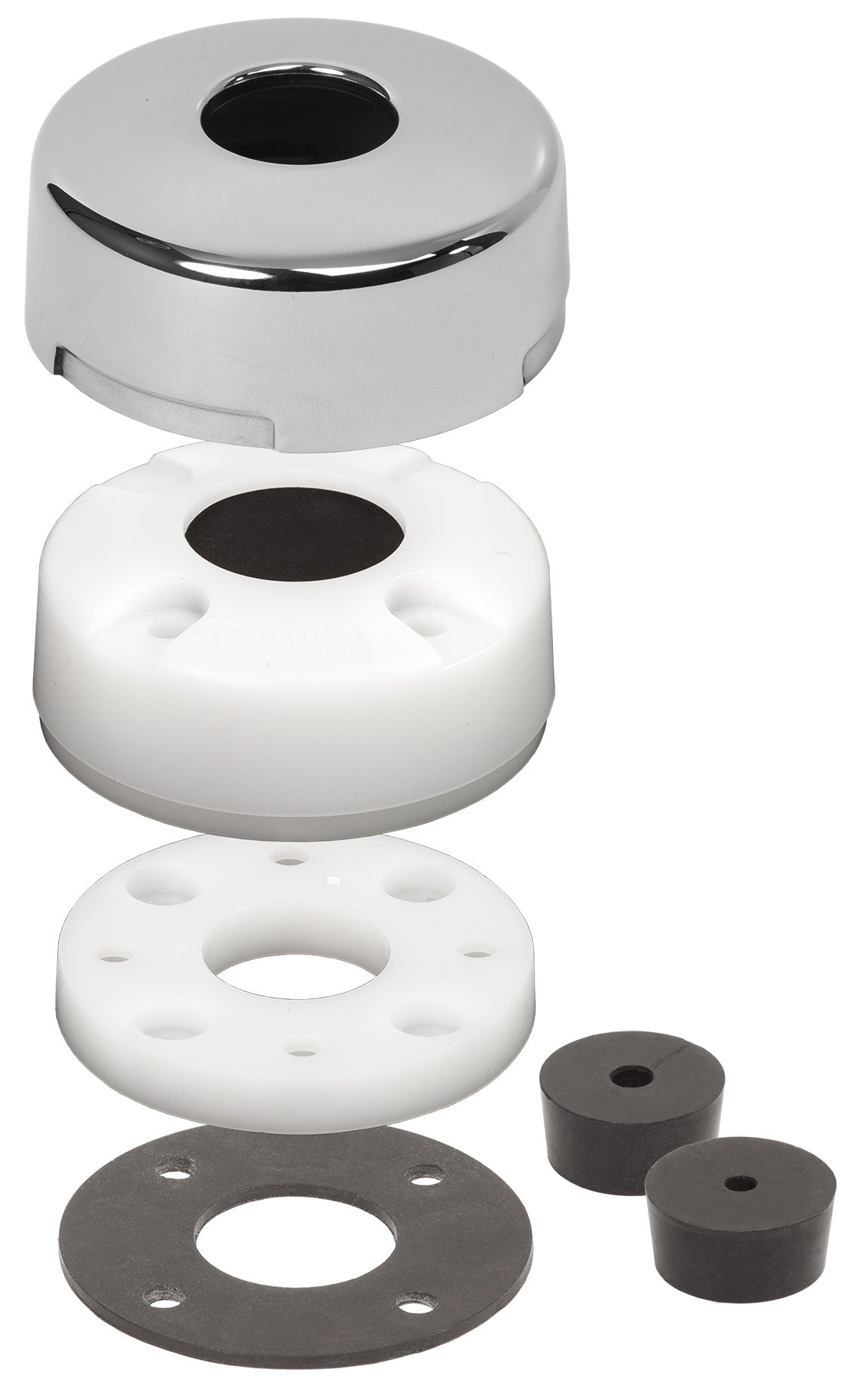

0.68" Stainless Steel Cover: 1001100-BSS

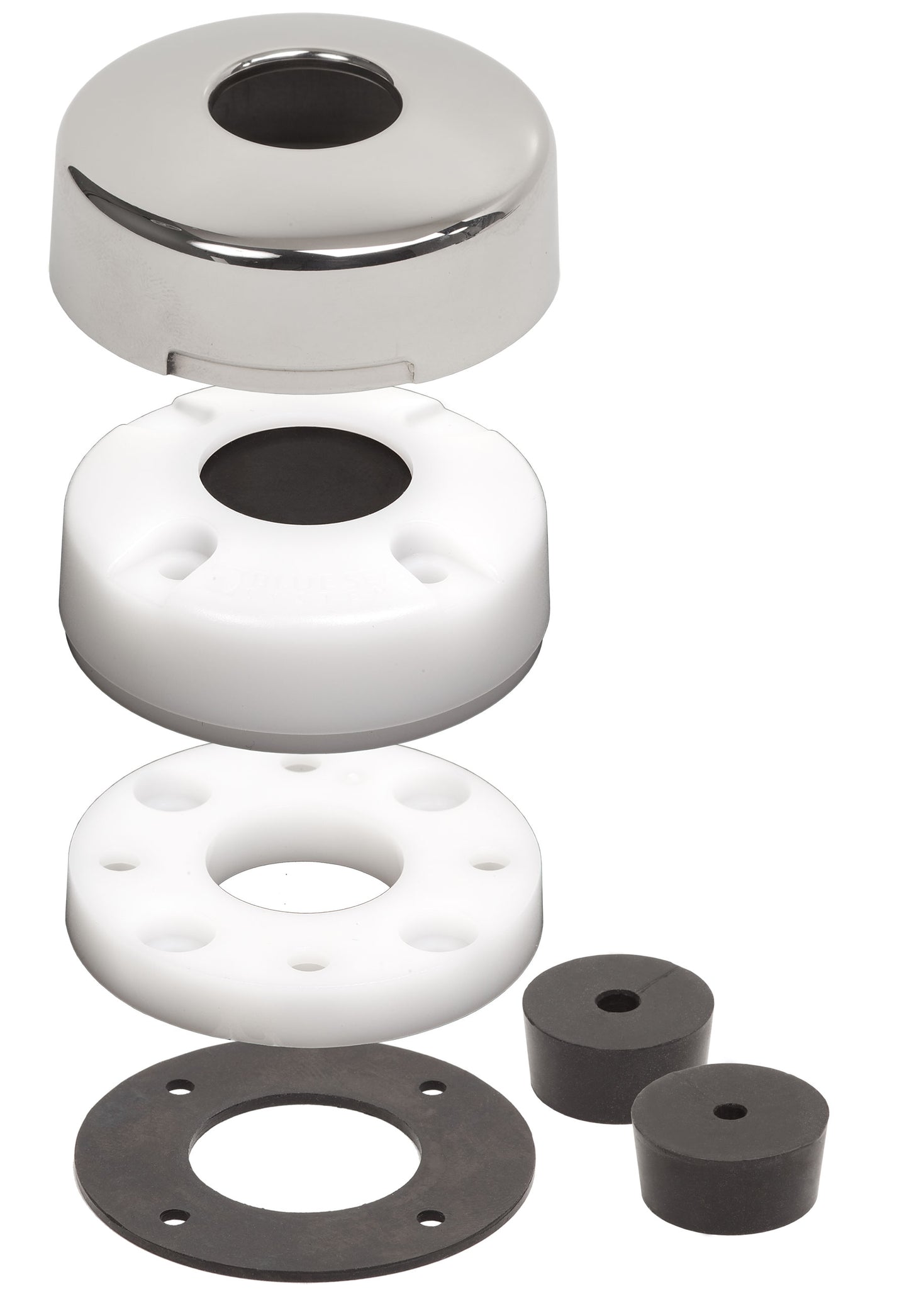

0.83" Stainless Steel Cover: 1002100-BSS

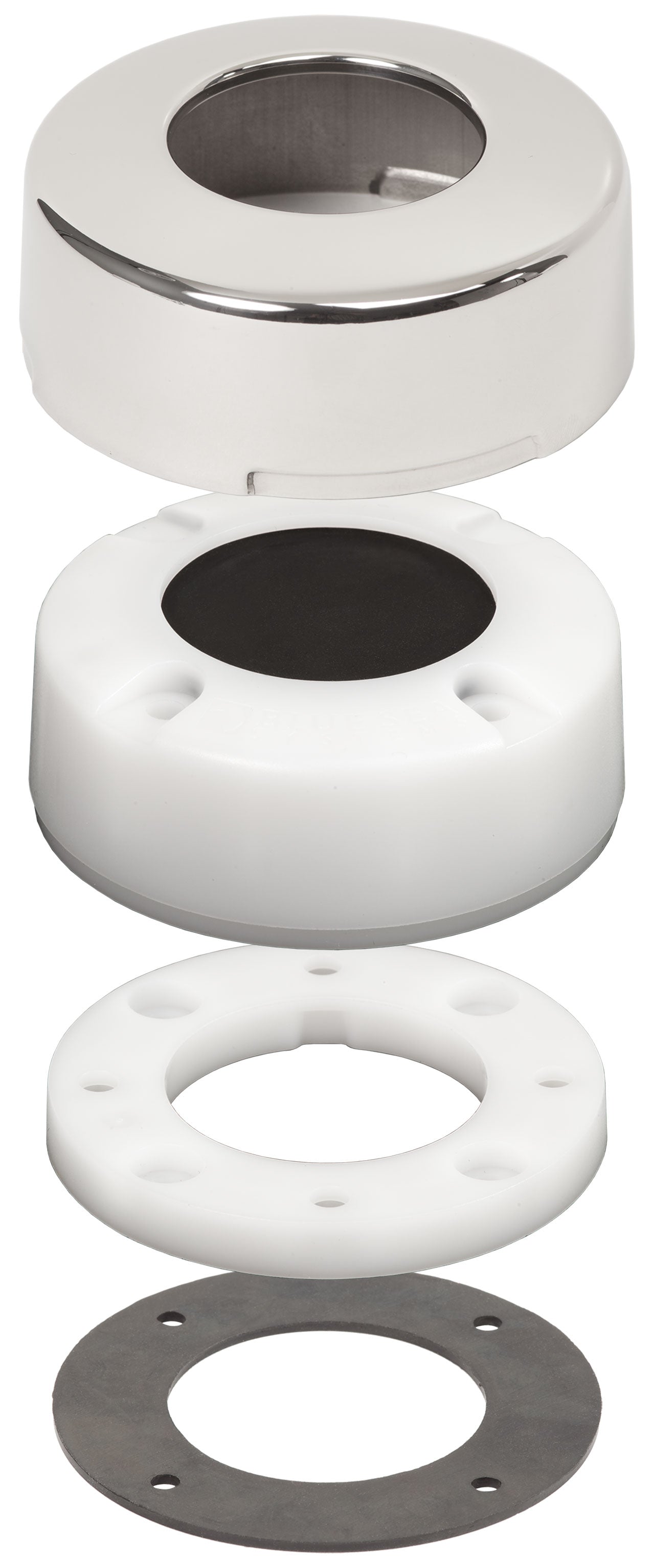

1.40" Stainless Steel Cover: 1003100-BSS

Overview

Blue Sea Systems CableClam Stainless Steel Covers provide waterproof pass-through solutions for antenna cables above the waterline without requiring connector removal. These polished stainless steel dress caps conceal mounting hardware, complement other deck hardware, and protect from UV damage. The provided stainless steel fasteners ensure corrosion resistance and long-term durability.

Key Features

Pre-drilled and slit rubber seals for easier installation
Polished 316 stainless steel dress caps for corrosion resistance and aesthetic matching to marine hardware
Stainless steel fasteners included for secure mounting
Designed for use above the waterline only
Provides waterproof cable pass-through without removing factory connectors

Specifications Comparison

Feature	1001100-BSS	1002100-BSS	1003100-BSS
Max Cable Diameter	0.31 in (7.87 mm)	0.44 in (11.18 mm)	0.56 in (14.22 mm)
Max Connector Diameter	0.68 in (17.27 mm)	0.83 in (21.08 mm)	1.40 in (35.56 mm)
Dress Cap Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Mounting Hole Size	Accept #6 x 7/8" Screws	Accept #8 x 7/8" Screws	Accept #8 x 7/8" Screws
Ring Material	UV-Stabilized Thermoplastic	UV-Stabilized Thermoplastic	UV-Stabilized Thermoplastic
Seal Hole Diameter	0.165 in (4.19 mm) & 0.220 in (5.59 mm)	0.220 in (5.59 mm) & 0.375 in (9.53 mm)	(Not specified)
Seal Material	UV-Stabilized Buna-N Rubber	UV-Stabilized Buna-N Rubber	UV-Stabilized Buna-N Rubber

Typical Use

Ideal for providing a waterproof, UV-protected cable and connector pass-through for marine antennas and similar applications above the waterline. Ensures easy installation and long-lasting performance in harsh marine environments.
