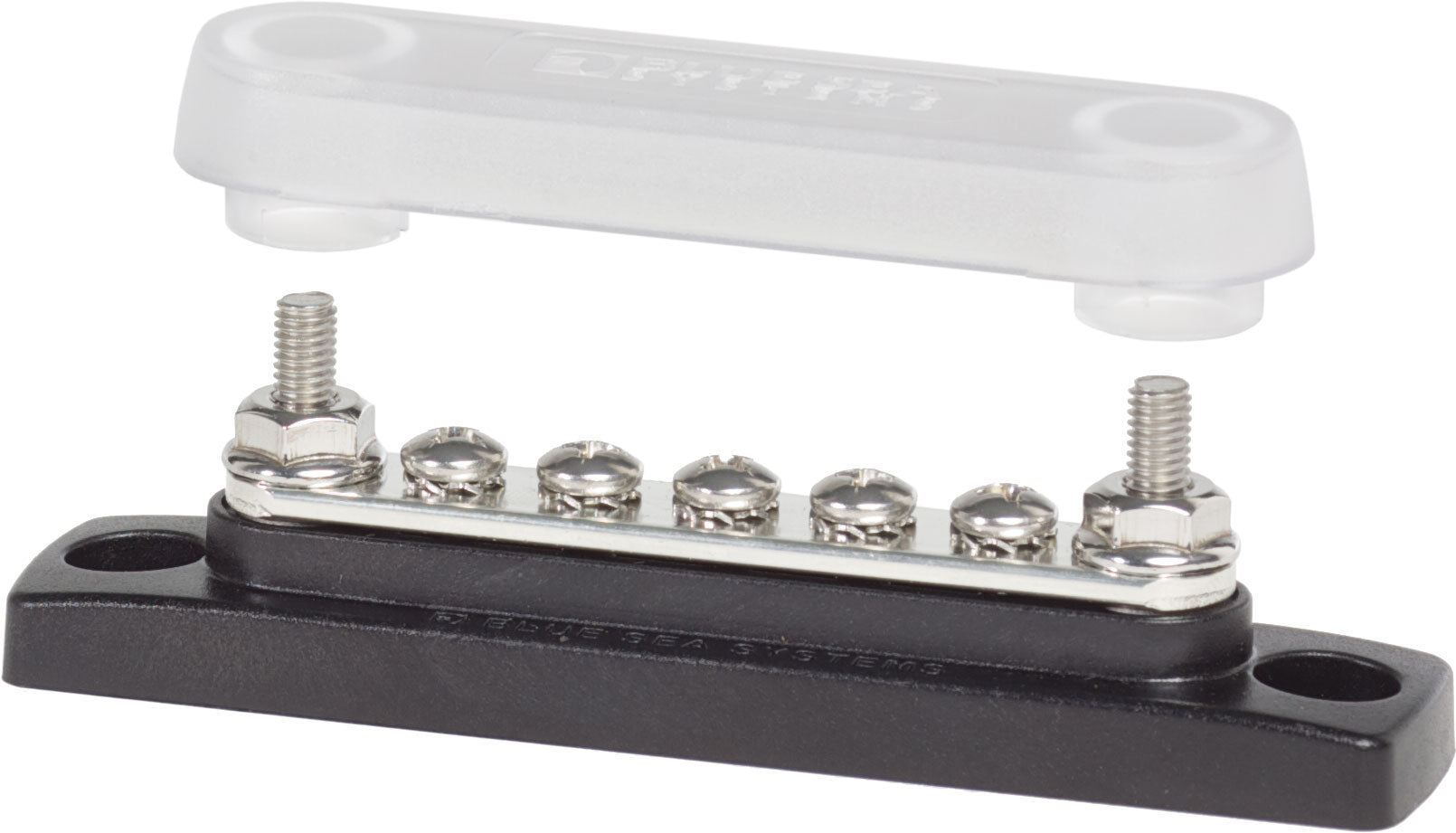

Common 100A Mini BusBar - 5 Gang with Cover: 2314-BSS
These 5-gang busbars are designed for limited space electrical distribution applications, offering organized and robust connectivity. They feature tin-plated copper bus material for excellent conductivity and corrosion resistance. The base material is UL 94-V0 rated, glass reinforced thermoplastics, ensuring flame retardance and durability. The 2314-BSS variant includes a clear polycarbonate cover for protection against dust, moisture, and incidental contact.
Key Features
Ideal for compact, space-constrained electrical installations
Tin-plated copper bus (CDA 110/UNS 11000) offers superior conductivity
UL 94-V0 rated glass reinforced thermoplastics base provides strength and fire resistance
Rated maximum voltage of 300V AC and 48V DC
Five screw terminals (#10-32 stud) plus two terminal studs (#8-32 screw) for flexible wiring options
Optional clear polycarbonate cover on 2314-BSS model for environmental protection
Specifications Comparison
Feature
2304-BSS BusBar 5 Gang
2314-BSS BusBar 5 Gang with Cover
Maximum Voltage
300V AC, 48V DC
300V AC, 48V DC
Number of Screw Terminals
5
5
Number of Terminal Studs
2
2
Terminal Type
#10-32 Stud, #8-32 Screw
#10-32 Stud, #8-32 Screw
Continuous Rating
100A
100A
Base Material
UL 94-V0 Rated Glass Reinforced Thermoplastics
UL 94-V0 Rated Glass Reinforced Thermoplastics
Bus Material
Tin-Plated Copper CDA 110 / UNS 11000
Tin-Plated Copper CDA 110 / UNS 11000
Cover Material
None
Clear Polycarbonate
What’s in the Box

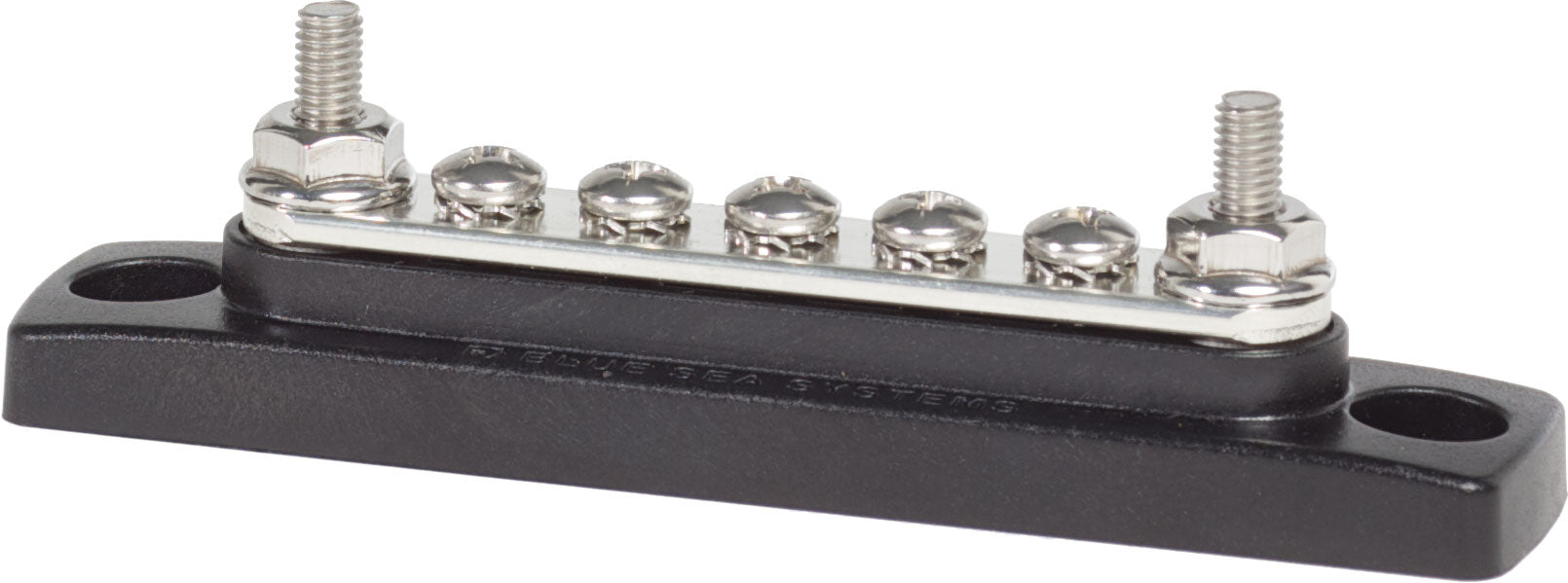

2304-BSS: 5-gang mini BusBar
2314-BSS: 5-gang mini BusBar with Clear Polycarbonate Cover
