Blue Sea Dual Battery Bank Management Panel.
Couldn't load pickup availability
Description
Description
Blue Sea Dual Battery Bank Management Panels
Models:
-

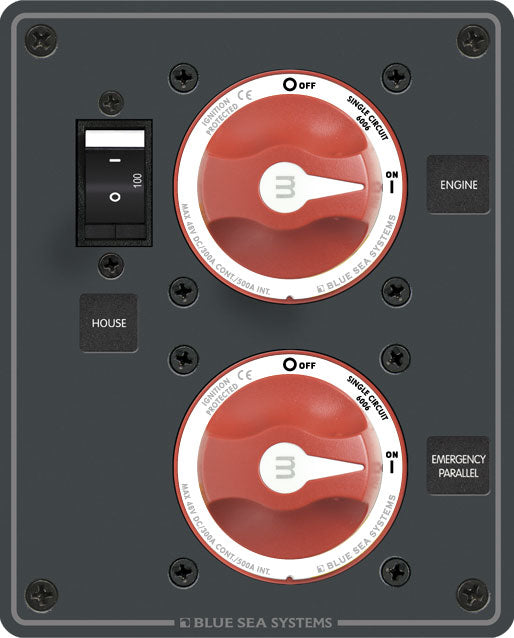

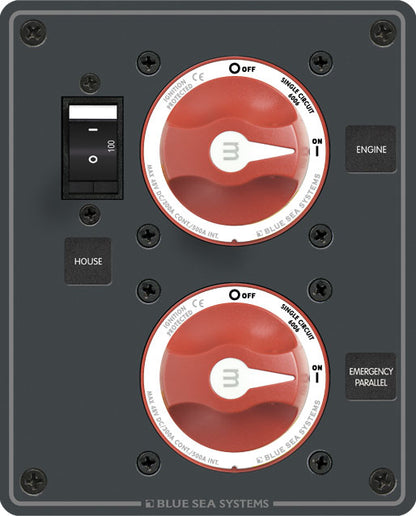

Dual Battery Bank Management Panel (32V DC): 8080-BSS
-

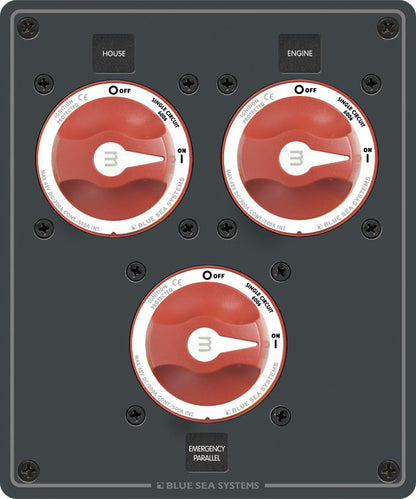

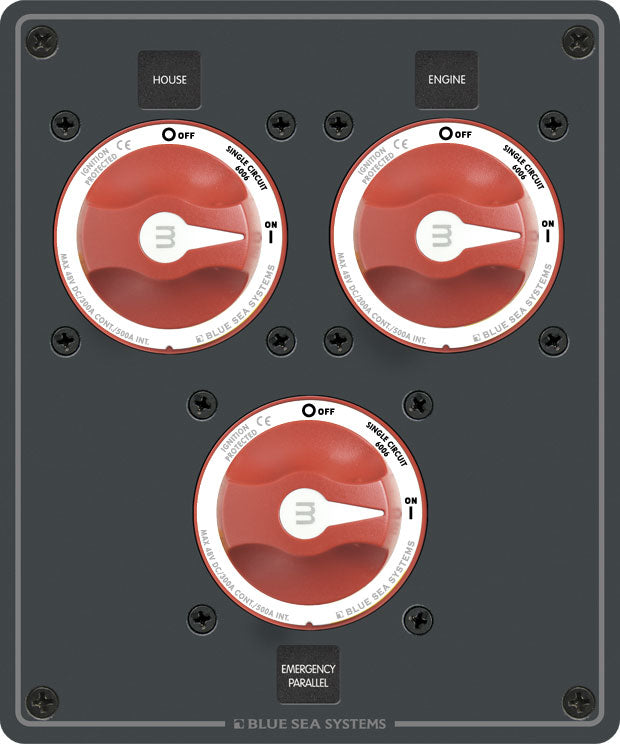

Traditional Metal Dual Bank Battery Management Panel (48V DC): 8280-BSS
Blue Sea Dual Battery Bank Management Panels provide reliable isolation between engine and house circuits, enabling emergency cross-connection of battery banks when needed. They protect sensitive electronics from voltage sags and spikes caused by engine cranking, supporting high current ratings for demanding marine power systems.
Key Features
-
Isolates engine circuit from house circuit
-
Allows emergency cross-connect between isolated battery banks
-
Protects electronics from sags and spikes during engine start
-
Robust construction suited for heavy-duty marine applications
Specifications Comparison
| Feature | 8080-BSS | 8280-BSS |
|---|---|---|
| Maximum Voltage | 32V DC | 48V DC |
| Continuous Rating | 300A | 300A |
| Intermittent Rating | 500A (5 minutes) | 500A (5 minutes) |
| Cranking Rating 10 sec | 1500A | 1500A |
| Cranking Rating 1 min | 775A | 775A |
| Dimensions (HxWxD) | 6.50" x 5.25" x 3.00" (165.1 x 133.35 x 76.2 mm) | 7.50" x 6.25" x 2.25" (190.5 x 158.75 x 57.15 mm) |
| Weight | 2.20 lb (1.00 kg) | 3.20 lb (1.45 kg) |
What’s in the Box
-
Battery Bank Management Panel (model specific)
-
Instruction manual
