Vendor: Blue Sea Systems
Sku:
BSS9004E
Blue Sea E-Series Battery Switch On-Off With AFD
Regular price
$83.99
Regular price
Sale price
$83.99
Unit price
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Description
Description

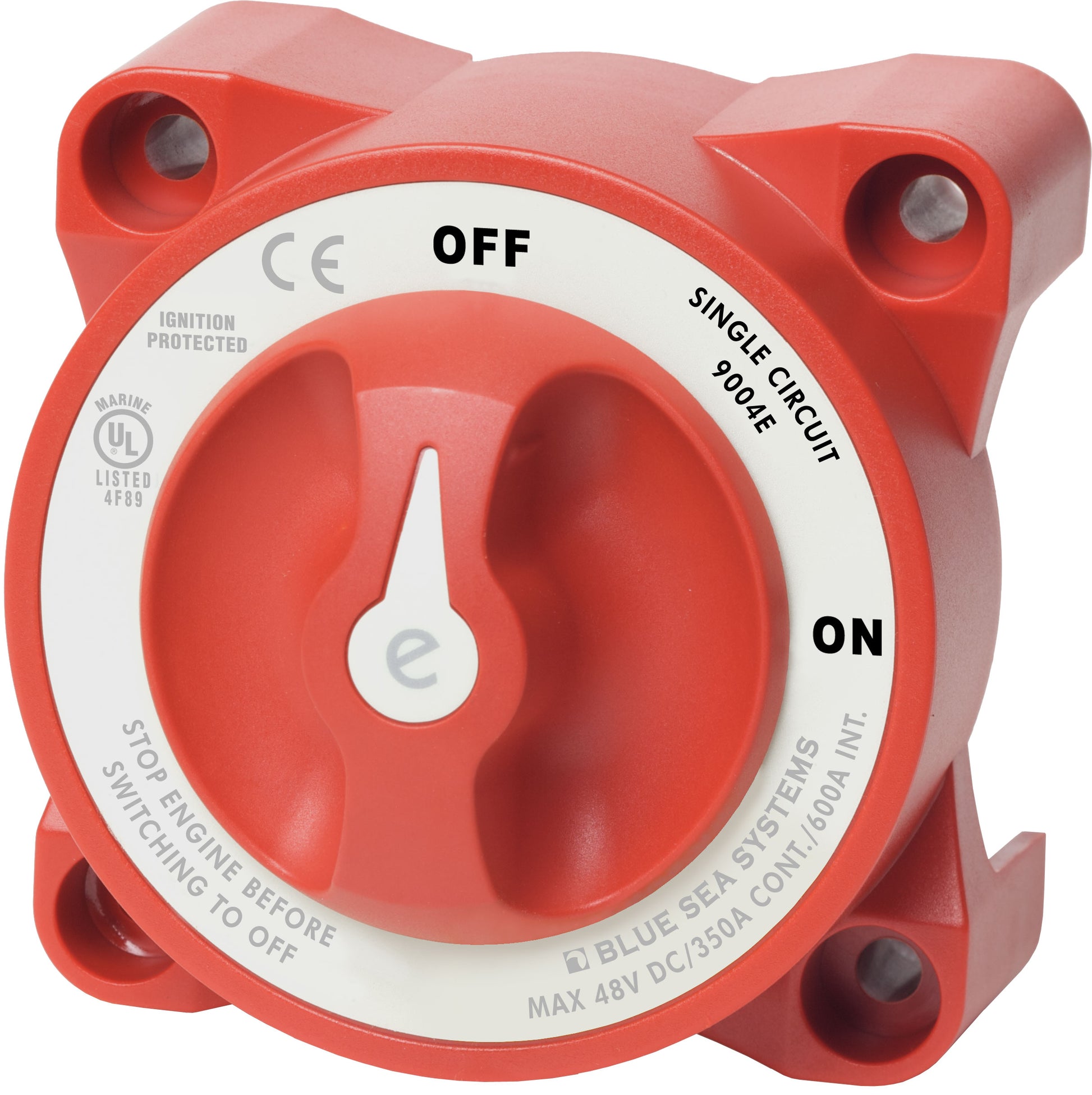

Blue Sea Systems e-Series On-Off Battery Switch with AFD
Model: 9004E-BSS
- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface or rear panel mounting
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
- Ignition protected—safe for installation aboard gasoline powered boats
- Includes AFD (Alternator Field Disconnect)
Switches a single battery to a single load group
Specifications
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A per circuit |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
