Blue Sea M-Series Single Circuit On/Off Battery Switches -Black.

Blue Sea Systems Single Circuit ON-OFF Battery Switches - Black

Models:

• Single Circuit ON-OFF with Locking Key: 6004200-BSS

• m-Series Mini On-Off Battery Switch with Key: 6005200-BSS

• m-Series Mini On-Off Battery Switch with Knob: 6006200-BSS

Overview

These Blue Sea Systems battery switches offer safe, reliable single circuit on-off control with various actuator options for marine and industrial uses. They feature tin-plated copper studs for maximum conductivity and corrosion resistance. The studs accept 3/8" (M10) ring terminals and have a 7/8" (22 mm) stud length to accommodate multiple cable terminals. The switches include isolating covers with snap-on sections protecting rear contacts and allow wire access in any direction. The switches are waterproof rated IP66 to withstand direct water jets and provide durable, corrosion-resistant operation.

Key Features

• Tin-plated copper studs, 3/8" (M10) accepting large cable terminals

• Isolating cover with snap-on sections protects rear contacts

• Case design supports surface, rear, or front panel mounting

• Waterproof driveway rated at IP66 against powerful water jets

• One-piece stainless flange nuts ensure secure connections

• Breakout tabs provide multi-direction wire access

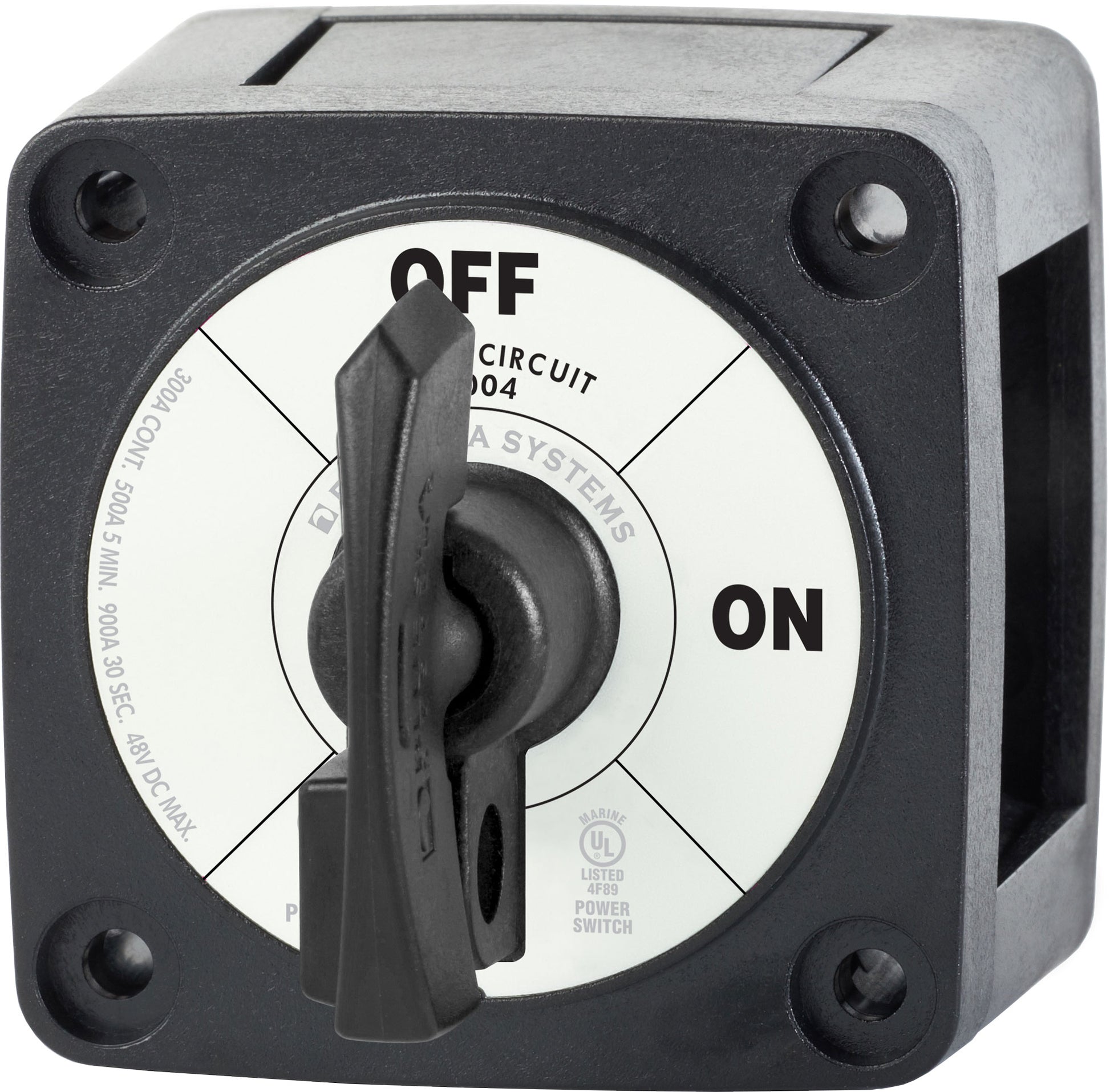

6004200-BSS

• Switch Type: Single Circuit ON-OFF with locking key

• Maximum Voltage: 48 V DC

• Continuous Rating: 300 A

• Intermittent Rating: 500 A

• Cranking Rating (30 sec): 900 A

• Stud Torque: 120 in-lb (13.56 Nm)

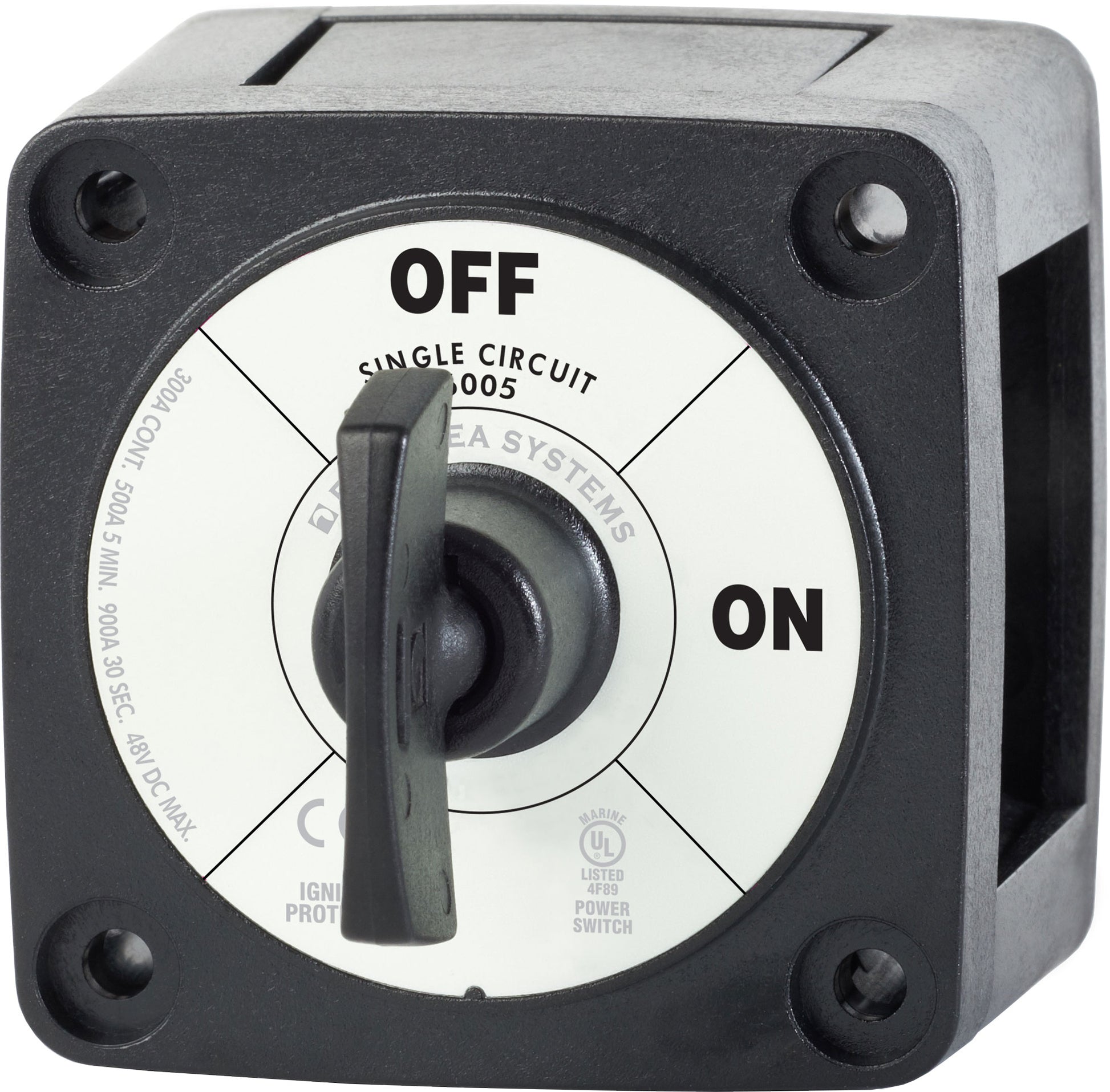

6005200-BSS

• Switch Type: Single Circuit ON-OFF with key

• Switch Positions: 2

• Battery Combine: No

• Ignition protected for gasoline-powered boats

• Continuous Rating: 300 A

• Intermittent Rating: 500 A (5 min)

• Cranking Rating (30 sec): 900 A

• Mounting accepts #10 screw

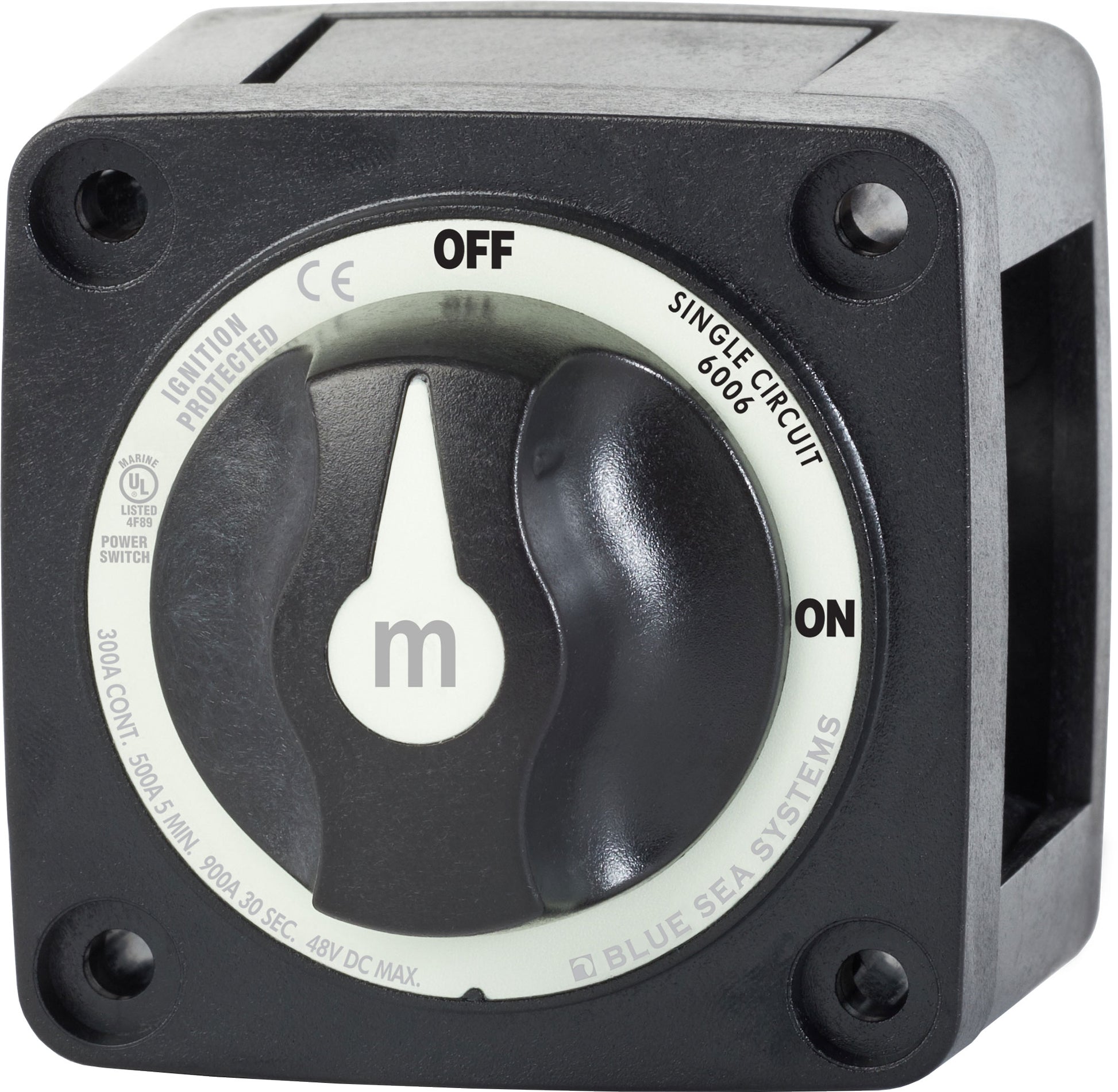

6006200-BSS

• Switch Type: Single Circuit ON-OFF with knob

• Switch Positions: 2

• Battery Combine: No

• Ignition protected for gasoline-powered boats

• Continuous Rating: 300 A

• Intermittent Rating: 500 A (5 min)

• Cranking Rating (30 sec): 900 A

• Mounting accepts #10 screw

Specifications Comparison

What’s in the Box

• 1 × Battery Switch (model-specific)
