Blue Sea M-Series Battery Switches On/Off/ Dual Circuit.

Blue Sea Systems m-Series Mini Dual Circuit Battery Switches

Models:

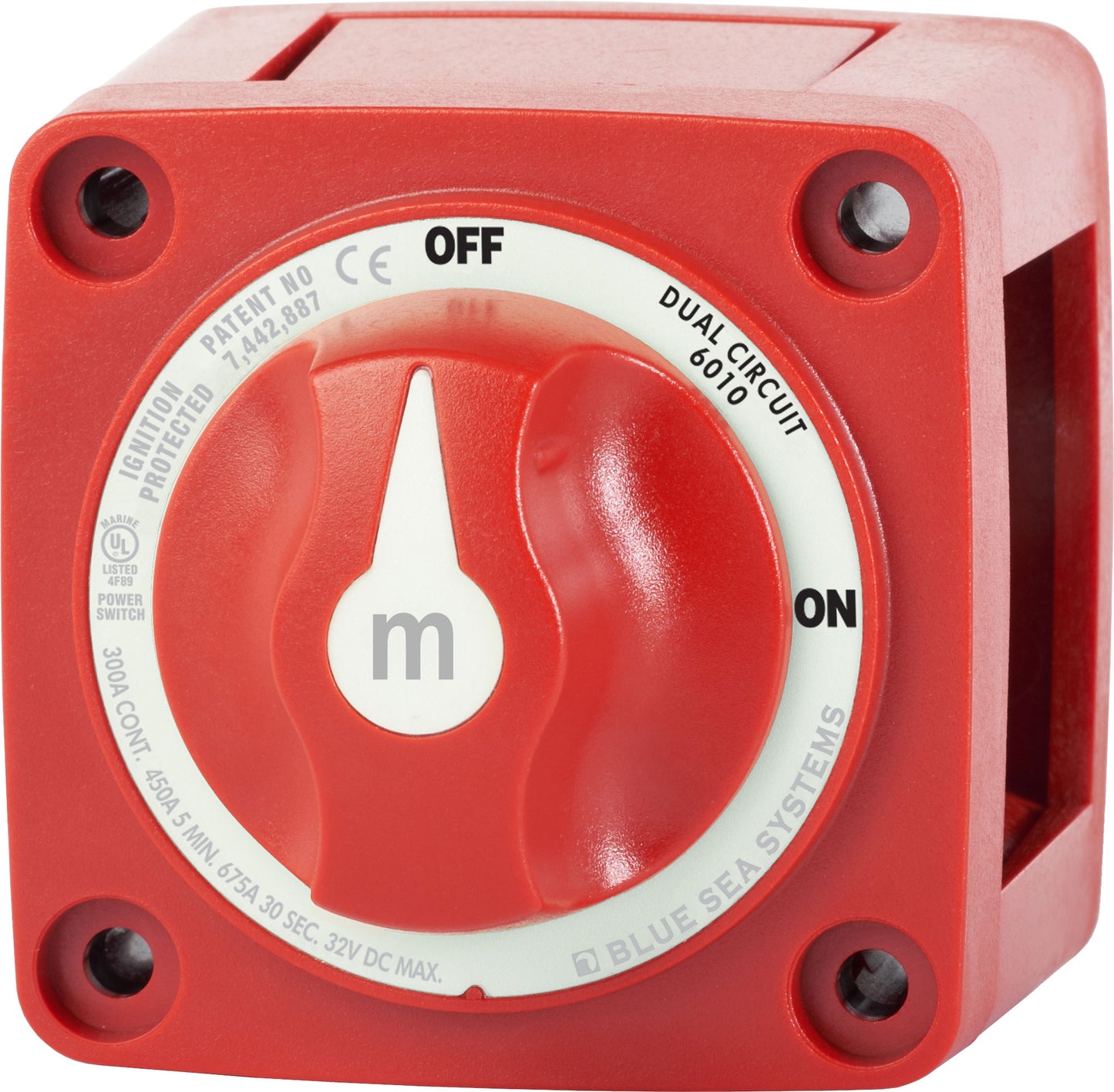

• Mini Dual Circuit Battery Switch: 6010-BSS

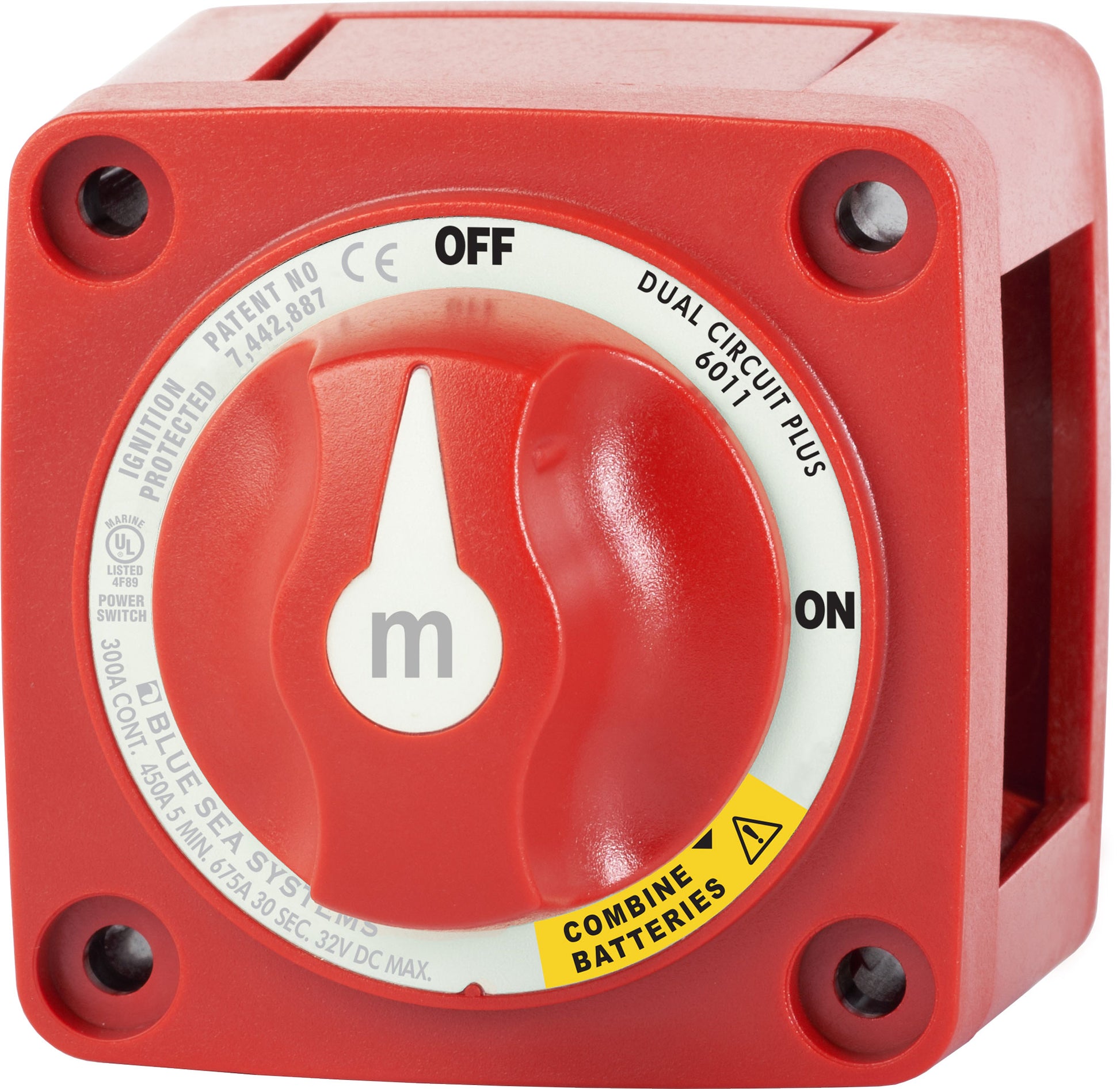

• Mini Dual Circuit Plus™ Battery Switch: 6011-BSS

These m-Series mini dual battery switches deliver reliable switching between two isolated battery banks. The Dual Circuit model switches the batteries independently without combining them, while the Dual Circuit Plus™ model provides the added functionality of combining battery banks to all loads with a make-before-break contact design, allowing seamless switching without power interruption. Both models feature tin-plated copper studs for excellent conductivity and corrosion resistance.

Key Features

• Continuous rating of 300 Amps with high intermittent and cranking ratings

• Switching of two isolated battery banks (6010-BSS) or additive combination ability (6011-BSS)

• Tin-plated copper studs accepting large 4/0 AWG battery cables

• Stud length of 7/8" (22 mm) to accommodate multiple cable terminals

• One-piece terminal stud design for secure, lasting connections

• Isolating cover with snap-on sections to protect rear contacts

• Waterproof and rugged, rated IP66 against powerful water jets

• Case design suitable for surface or rear panel mounting

• Breakout tabs allowing wire access in multiple directions

• Ignition protected for safe installation aboard gasoline-powered boats

Specifications Comparison

What’s in the Box

• Mini Dual Circuit Battery Switch or Mini Dual Circuit Plus™ Battery Switch (model specific)

• Installation instructions
