Blue Sea M-Series Battery Switch On/Off Dual Circuit- Black.

Blue Sea Systems M-Series Mini Dual Circuit Battery Switches - Black

Models:

• Mini Dual Circuit Plus: 6011200-BSS

• Mini Dual Circuit: 6010200-BSS

Overview

Blue Sea Systems m-Series Mini Dual Circuit Battery Switches are designed for high-performance dual battery management in compact form factors. Both models feature tin-plated copper studs with a 7/8" (22 mm) stud length to accept multiple cable terminals, ensuring maximum conductivity and corrosion resistance. The one-piece terminal stud design prevents loosening over time. The isolating cover with snap-on sections protects rear contacts, while the case supports both surface and rear panel mounting. Rated IP66, these switches provide waterproof protection against powerful water jets.

Key Features

• Tin-plated copper studs accepting 3/8" (M10) ring terminals, 7/8" (22 mm) length

• One-piece terminal stud design that never loosens

• Isolating cover with snap-on sections protects rear contacts

• Case design for flexible surface or rear panel mounting

• Waterproof, IP66 rated against water jets

• One-piece stainless flange nuts for secure connections

• Breakout tabs allow wire access in any direction

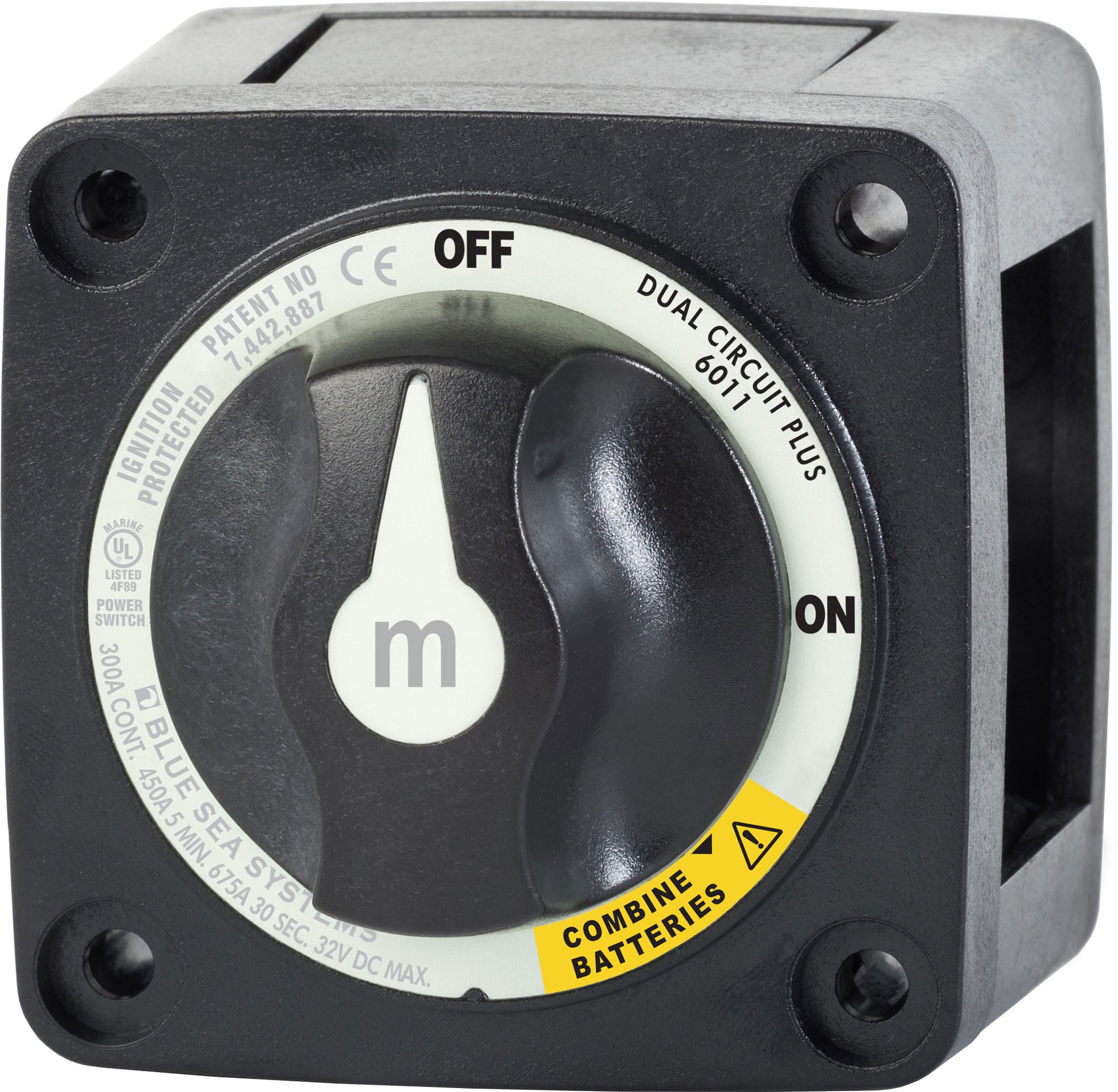

Dual Circuit Plus Model (6011200-BSS)

• Switch type: Dual Circuit Plus

• Switch positions: 3

• Battery combine: Yes — simultaneously switches two isolated battery banks or combines battery banks to all loads

• Maximum voltage: 32 V DC

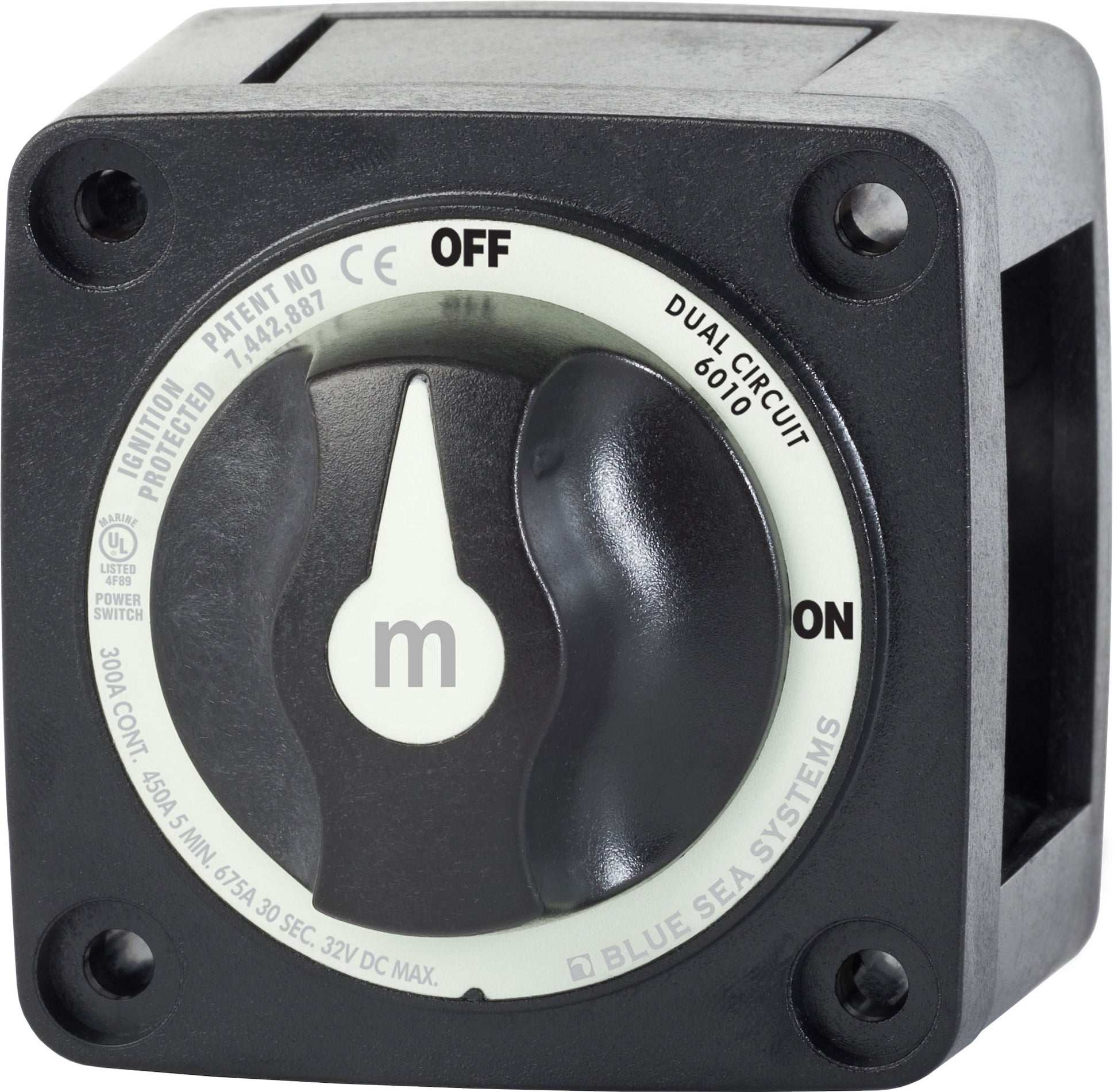

Dual Circuit Model (6010200-BSS)

• Switch type: Dual Circuit

• Switch positions: 2

• Battery combine: No — simultaneously switches two isolated battery banks

• Maximum voltage: 32 V DC

Specifications Comparison

What’s in the Box

• 1 × m-Series Mini Dual Circuit Battery Switch (model-specific)
