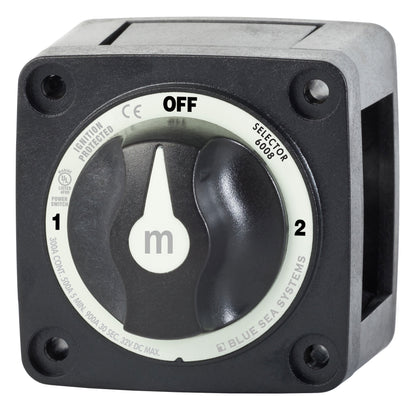

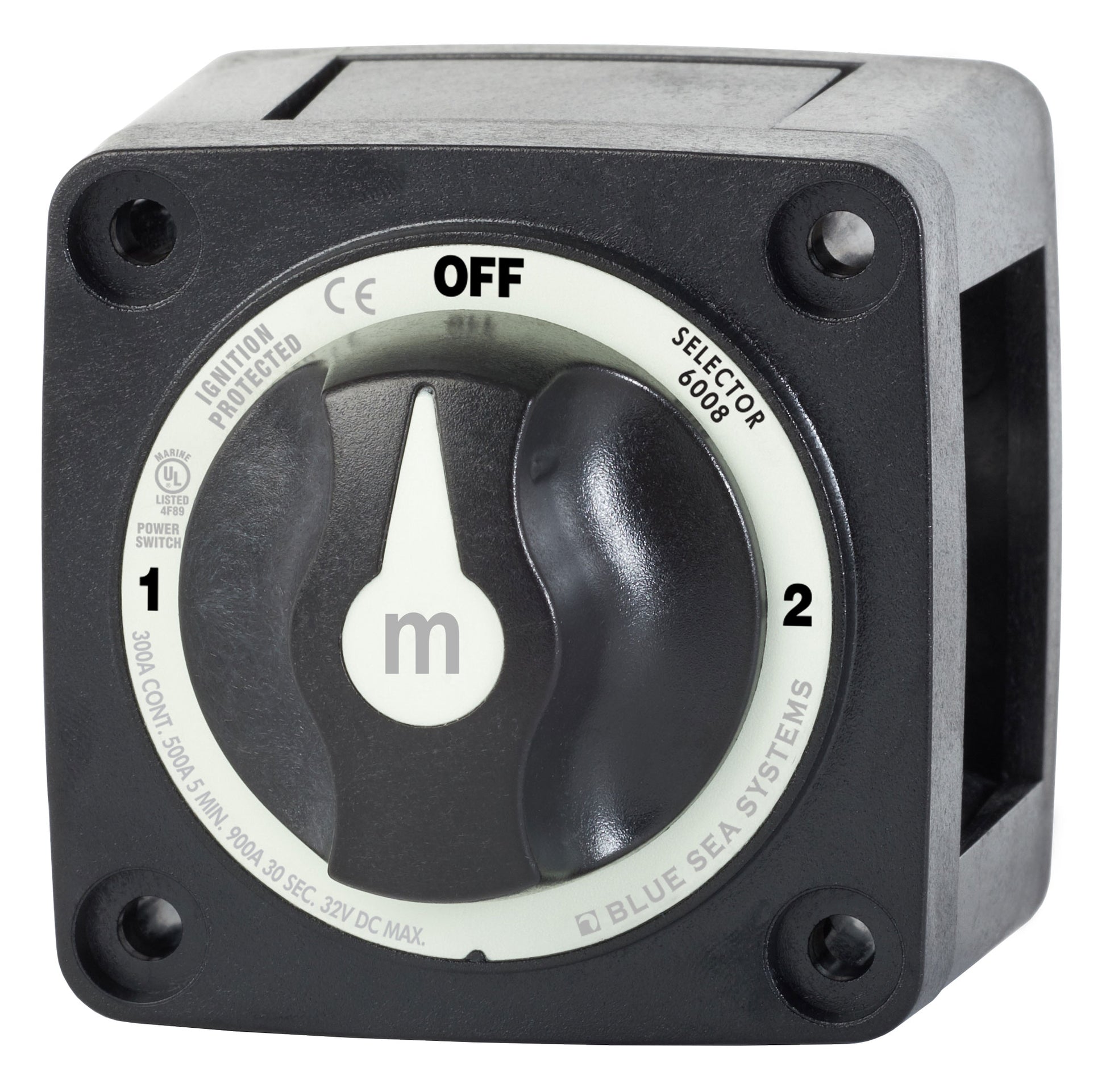

Blue Sea M-Series Selector Battery Switches On/Off with Knob Black.

Blue Sea Systems M-Series Mini Selector Battery Switches - Black

Models:

• Mini Selector Battery Switch, 4 Position: 6007200-BSS

• Selector Battery Switch, 3 Position: 6008200-BSS

Overview

Blue Sea Systems m-Series Mini Selector Battery Switches offer high-performance battery management with compact size and versatile mounting options. Both switches feature tin-plated copper studs for exceptional conductivity and corrosion resistance, with a 7/8" (22 mm) stud length to fit multiple cable terminals. The one-piece terminal stud design ensures reliable, long-term connections that never loosen. The isolating cover with snap-on sections shields rear contacts, and the waterproof IP66 rating provides protection against powerful water jets, making these switches suitable for marine environments. These switches are ignition protected, safe for gasoline-powered boats.

Key Features

• Tin-plated copper studs, 3/8" (M10), 7/8" length

• One-piece terminal stud design that never loosens

• Isolating cover protects rear contacts

• Case design supports surface, rear, or front panel mounting

• Waterproof rated IP66, protecting against powerful water jets

• One-piece stainless flange nuts for secure connections

• Breakout tabs allow multi-directional wire access

• Ignition protected for marine gasoline-powered boats

6007200-BSS (4 Position)

• Switch Type: Selector 4 Position

• Switch Positions: 4

• Battery Combine: Yes — switches isolated battery banks to all loads or combines battery banks to all loads

• Maximum Voltage: 32 V DC

6008200-BSS (3 Position)

• Switch Type: Selector 3 Position

• Switch Positions: 3

• Battery Combine: No — switches a single battery to a single load group

• Maximum Voltage: 32 V DC

Specifications Comparison

What’s in the Box

• 1 × m-Series Mini Selector Battery Switch (model-specific)
