Blue Sea M-Series Battery Switches On/Off with Key - RED.

Blue Sea Systems m-Series Mini On-Off Battery Switches with Key

Models:

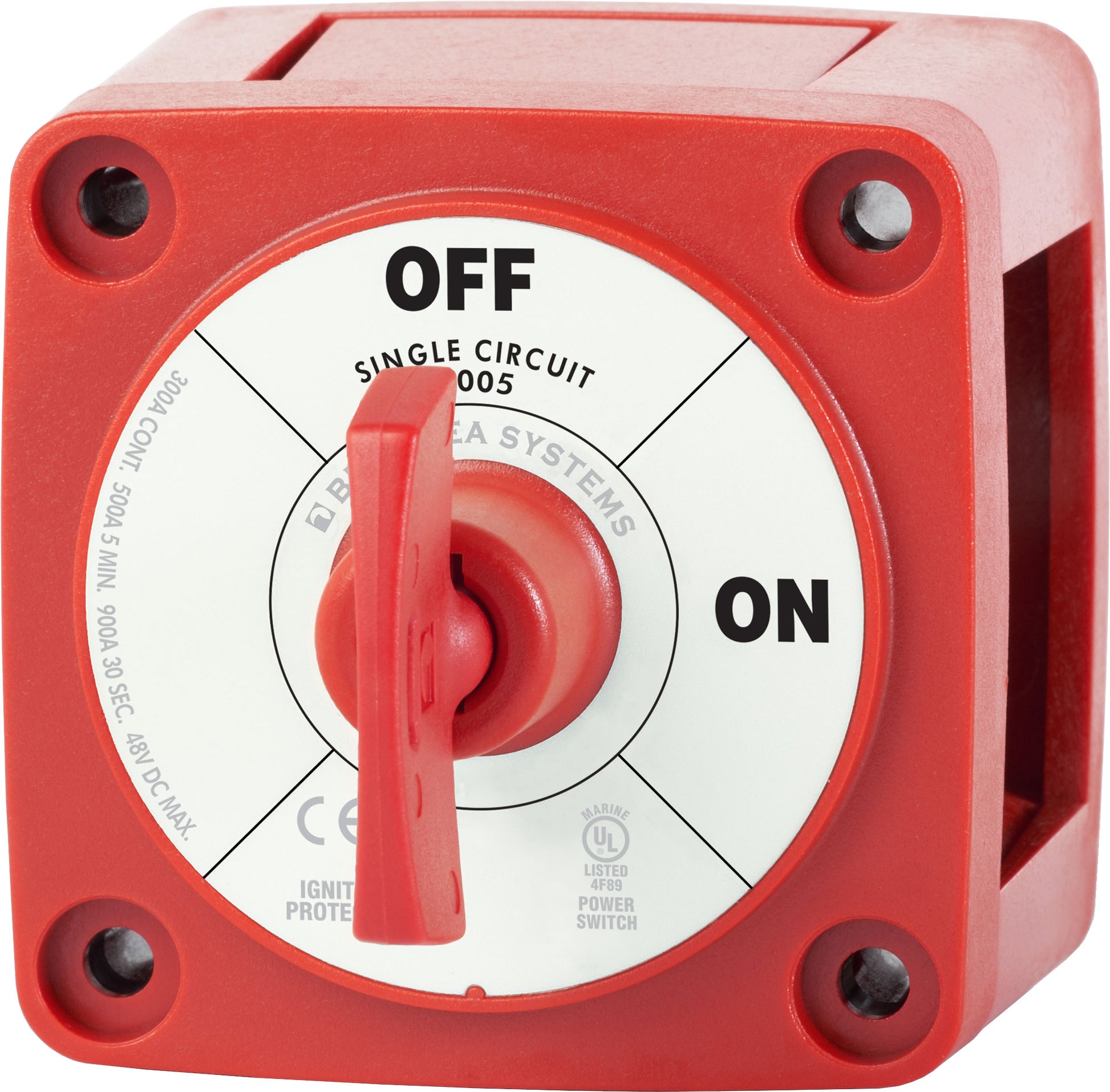

• Mini On-Off Battery Switch with Key - Red: 6005-BSS

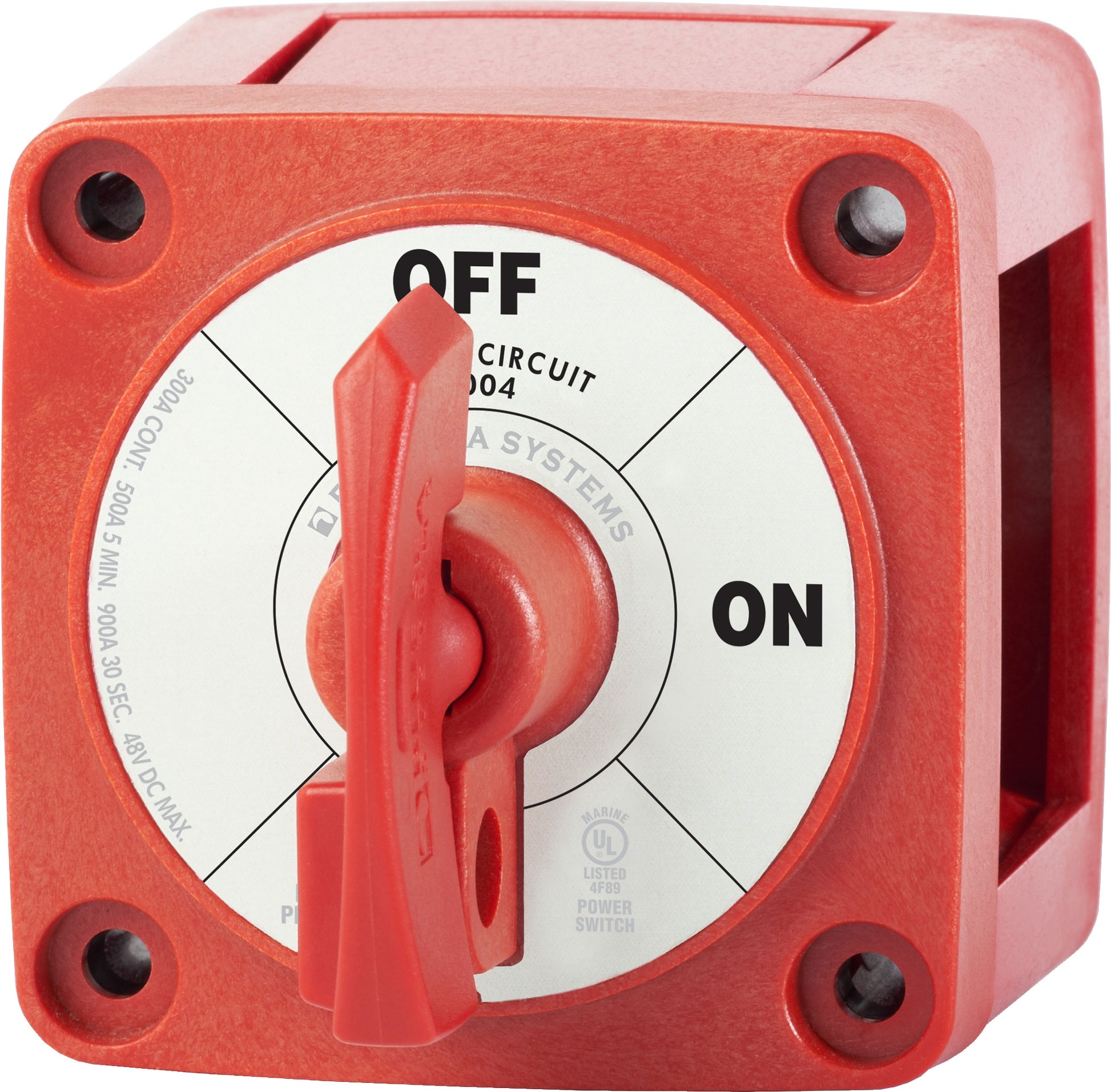

• Single Circuit ON-OFF with Locking Key - Red: 6004-BSS

These m-Series Mini On-Off Battery Switches provide reliable single battery to single load switching for outboard and small gasoline or diesel engines. Featuring tin-plated copper studs for maximum conductivity and corrosion resistance, they accommodate large battery cables up to 4/0 AWG. They include isolating covers for rear contact protection and are designed for versatile panel mounting. Waterproof rated IP66 and ignition protected, these switches are ideal for marine environments.

Key Features

• Tin-plated copper studs for maximum conductivity and corrosion resistance

• Studs accept 3/8" (M10) ring terminals and multiple cable terminals with 7/8" (22 mm) stud length

• One-piece terminal stud design that never loosens over time

• Isolating cover with snap-on sections for rear contact protection

• Case design supports surface, rear, or front panel mounting

• Waterproof — rated IP66 against water jets

• Ignition protected—safe for gasoline powered boat installations

• Tactile indicator with a locking key switch design (6004-BSS and 6005-BSS)

• Switches a single battery to a single load group

Specifications Comparison

What’s in the Box

• Mini On-Off Battery Switch with Key - Red (model specific)

• Locking key for switch operation
