Blue Sea M-Series Battery Switches On/Off with Knob - RED.

$39.99

~~$39.99~~ $39.99

Sold out

Shipping calculated at checkout.

Low stock: 7 left

Switch Type: Single Circuit ON-OFF Single Circuit ON-OFF Selector 4 Position Selector 3 Position

Description

Blue Sea Systems m-Series Mini Battery Switches - Red

Models:

Mini On-Off Battery Switch with Knob: 6006-BSS

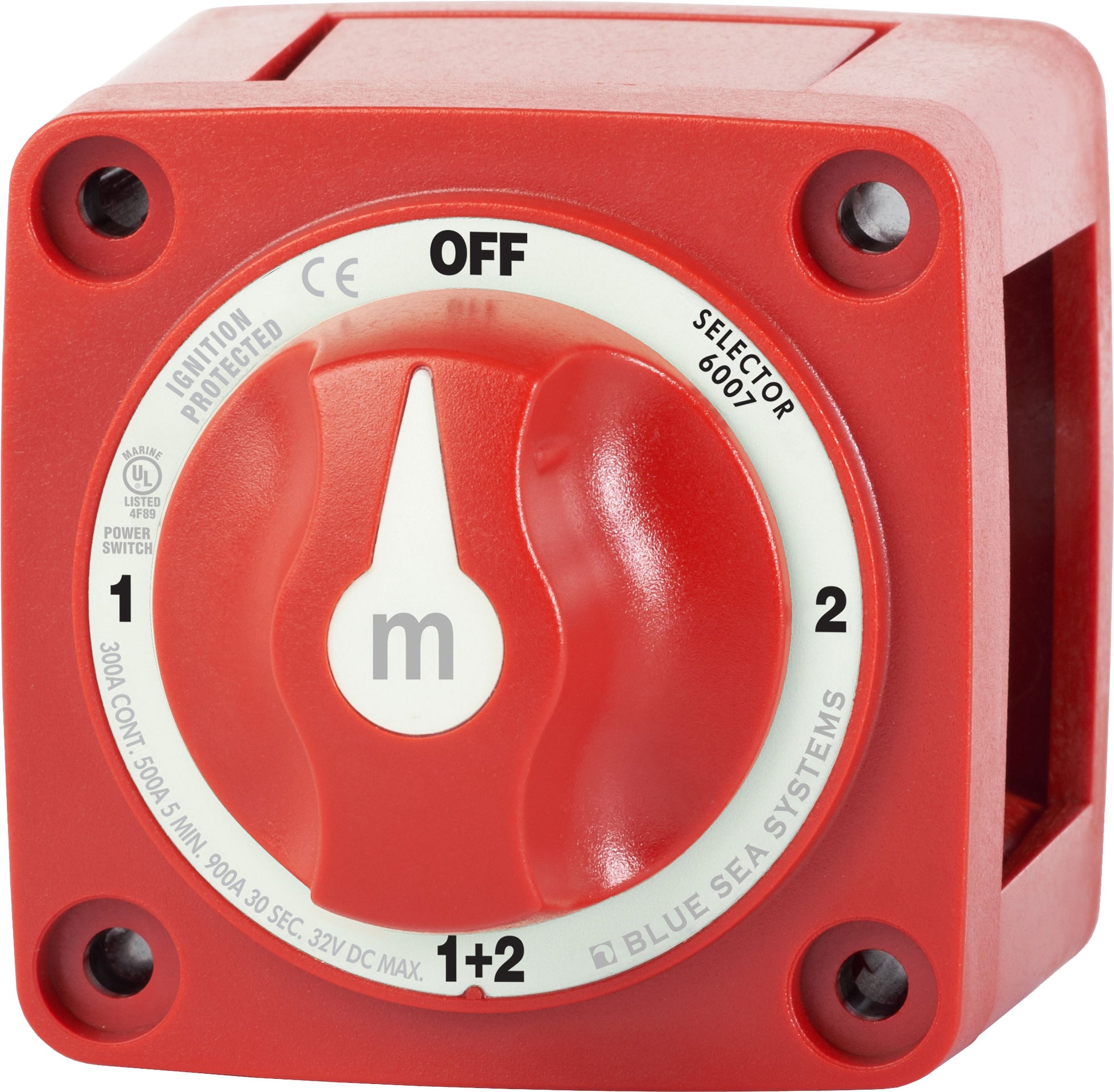

Mini Selector Battery Switch (4 Position): 6007-BSS
Mini Selector 3 Position Battery Switch: 6008-BSS

These m-Series battery switches provide reliable battery control for marine applications, featuring tin-plated copper studs for excellent conductivity and corrosion resistance. Designed to accommodate heavy gauge cables (up to 4/0 AWG), they offer robust marine-grade construction, multiple mounting options, tactile instruction with isolating covers, and are rated waterproof and ignition protected.

Key Features

Tin-plated copper studs accepting 3/8" (M10) ring terminals
7/8" (22 mm) stud length for multiple cable terminals
One-piece terminal stud designs that maintain tight connections
Isolating covers with snap-on sections for rear contact protection
Versatile mounting options: surface, rear, or front panel
Waterproof rated IP66 against powerful water jets
Ignition protected, safe for installation aboard gasoline-powered boats
Breakout tabs for wire access in multiple directions
Tactile knob indicators with locking keys (where applicable)

Specifications Comparison

Feature	6006-BSS Mini On-Off	6007-BSS Mini Selector 4 Pos	6008-BSS Mini Selector 3 Pos
Switch Type	Single Circuit ON-OFF	Selector 4 Position	Selector 3 Position
Switch Positions	2	4	3
Battery Combine	No	Yes	No
Alternator Field Disconnect	No	No	No
Maximum Voltage	48V DC	32V DC	32V DC
Stud Size	3/8" - 16 (M10)	3/8" - 16 (M10)	3/8" - 16 (M10)
Terminal Stud Torque	120 in-lb (13.56 Nm)	120 in-lb (13.56 Nm)	120 in-lb (13.56 Nm)
Continuous Rating	300A	300A	300A
Intermittent Rating	500A (5 min)	500A (5 min)	500A (5 min)
Cranking Rating (30 sec)	900A	900A	900A
Battery Inputs	1	2	2
Cable Clearance For 4/0 AWG	1.12 in (28.45 mm)	1.12 in (28.45 mm)	1.12 in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120 mm²)	4/0 AWG (120 mm²)	4/0 AWG (120 mm²)
Mounting Holes	Accept #10 Screw	Accept #10 Screw	Accept #10 Screw
Stud Material	Tinned Copper	Tinned Copper	Tinned Copper

What’s in the Box

Mini On-Off Battery Switch with Knob (6006-BSS) or Mini Selector Battery Switches (6007-BSS, 6008-BSS)
Locking key on applicable models
Installation instructions
