Vendor: Blue Sea Systems
Sku:
BSS1830

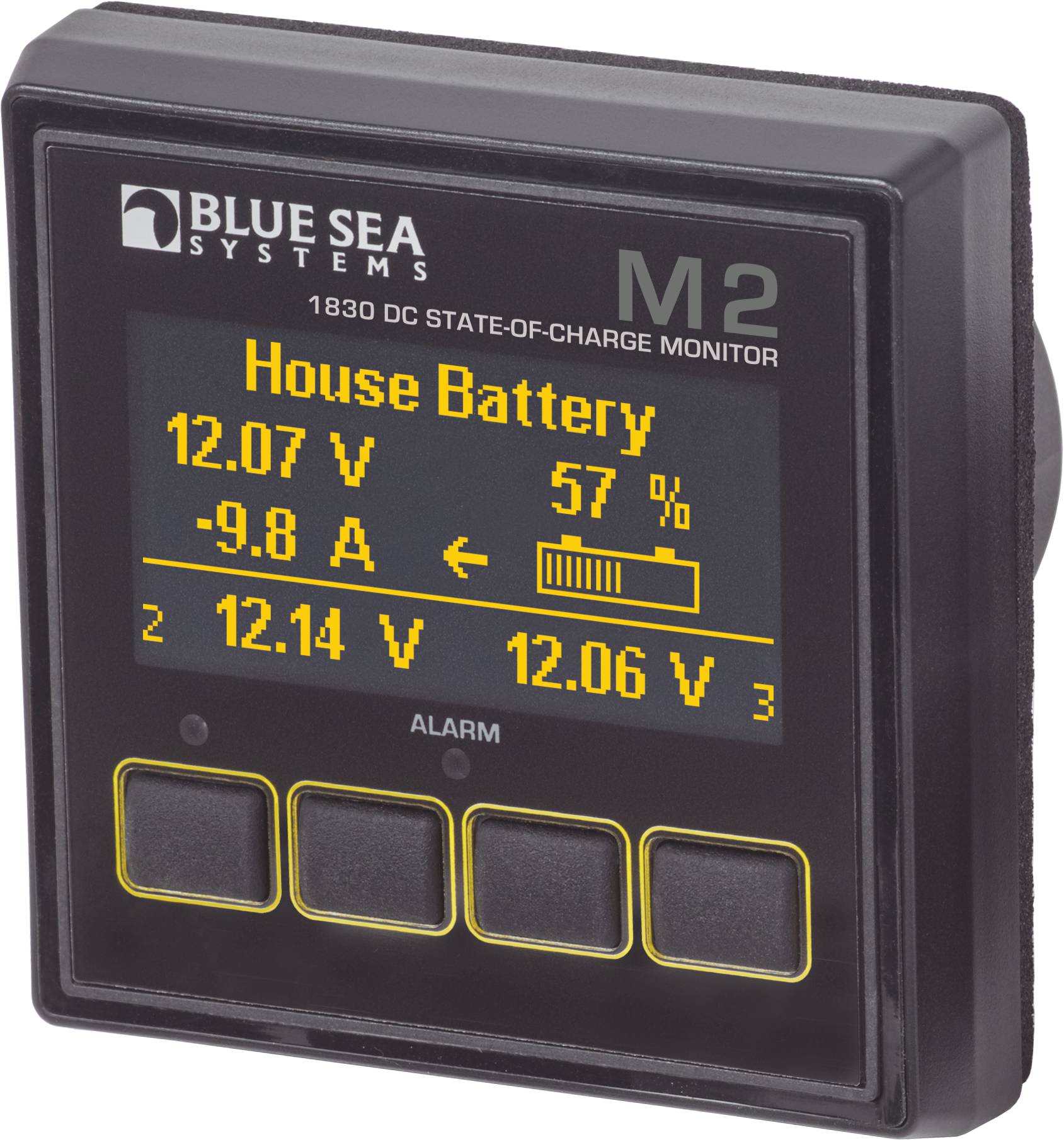

Blue Sea M2 DC Multimeter with State of Charge
Regular price
$349.95
Regular price
Sale price
$349.95
Unit price
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
Description
Description
Blue Sea M2 DC Multimeter with State of Charge
Model: 1830-BSS
- Accurately measures and monitors State-of-Charge of 1 bank
- Measures 3 voltages and 1 current
- Supports programmable shunt ratios
- External relay activation
Specifications
| Meter | Current State-of-Charge Voltage |
| Function | 8 to 70V to 5000A |
| Maximum Voltage | 12V, 24V, 48V |
| Resolution | 0.01V DC |
| Input Voltage | 7-70V DC |
| Alarms | High Curret High/Low Voltage Low Battery |
| Current Range | -500 to 500A |
| Display Size | 55mm x 28mm |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Voltage Accuracy | +/- 1.0% |
What's in the Box:
- M2 Head unit
- Surface Mount Cover
- Mounting Ring
- Connector
- Surface mount bezel
- Flush mount bezel
- Mounting nut
- Screwdriver
- Surface mount gasket
- Flush mount clamp
- Shunt #8255
