Blue Sea MaxiBus 250A BusBar 5/16in-18 Studs.

Blue Sea MaxiBus 250A BusBars

Models:

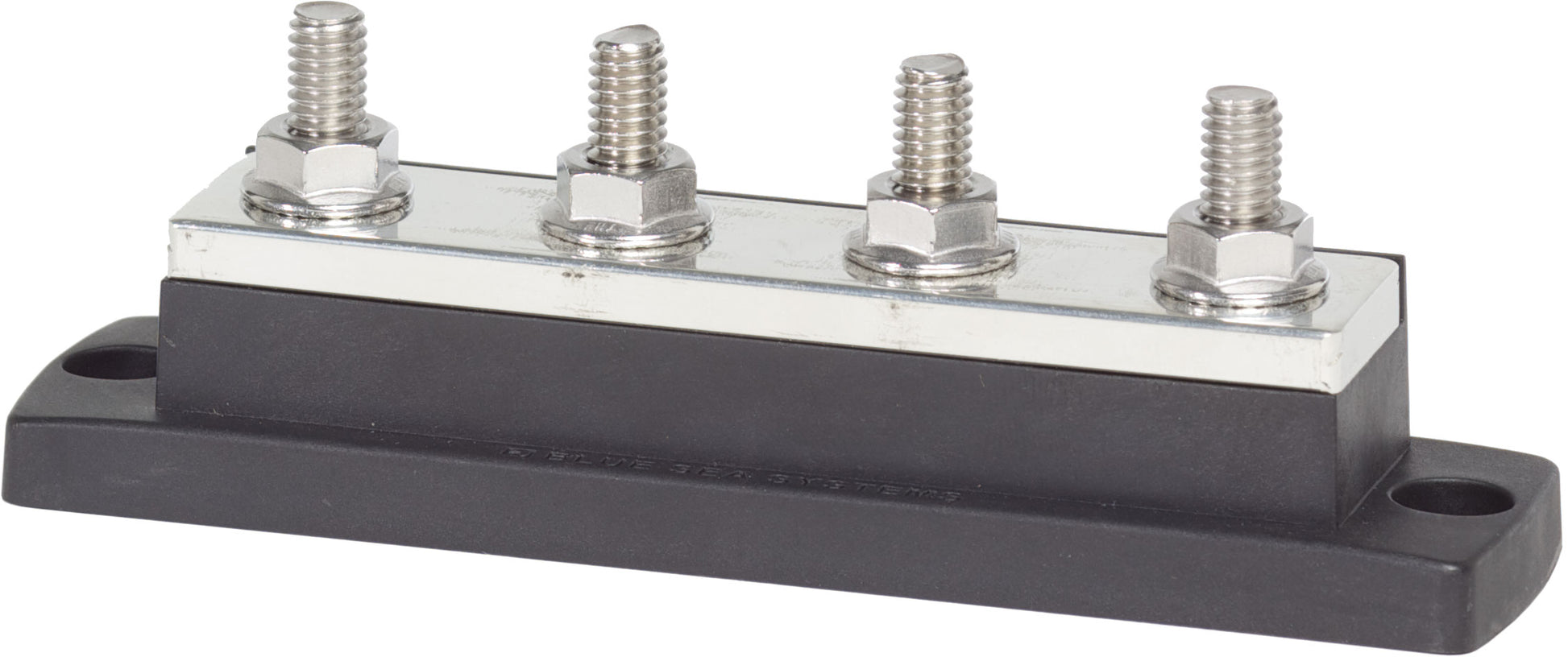

• 4 Stud: 2127-BSS

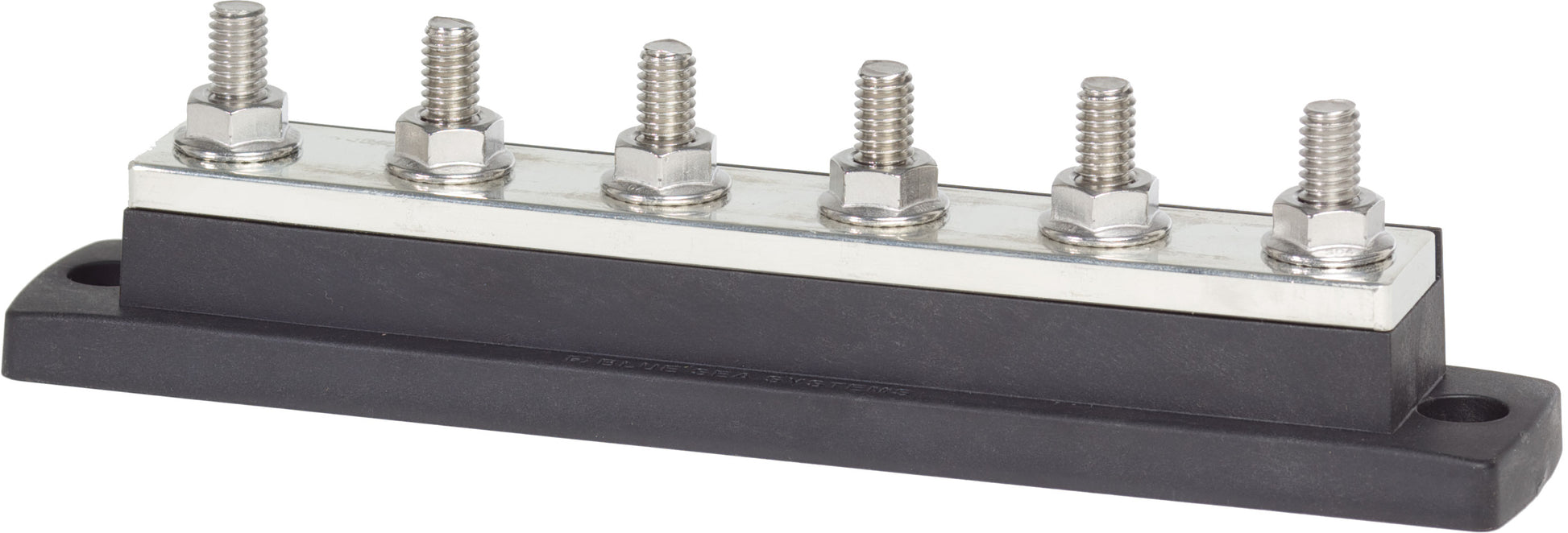

• 6 Stud: 2126-BSS

Overview

Blue Sea Systems MaxiBus BusBars are designed to consolidate multiple wires or feed multiple circuits, providing a centralized, high-capacity electrical distribution point. The busbars feature insert molded stainless steel studs that eliminate the need for a securing nut while allowing high torque for excellent electrical contact. The raised bus design allows easy access for attaching multiple wires on a single stud.

Constructed with UL 94-V0 rated glass reinforced thermoplastic base material, these busbars resist high heat and have recessed mounting holes that help prevent accidental electrical shorts to metal mounting surfaces such as aluminum or steel.

Key Features

• Insert molded stainless steel studs eliminate need for securing nuts and enable high torque for reliable electrical connection

• Raised bus design facilitates easy wire access on each stud

• Base material is UL 94-V0 rated, glass reinforced thermoplastic for heat resistance

• Recessed mounting holes prevent accidental short circuits on metal mounting surfaces

• Used widely to consolidate wiring or feed multiple circuits from a single busbar

Specifications Comparison

Typical Use

Ideal for marine and industrial electrical applications where multiple wires need to be consolidated or multiple circuits distributed efficiently and safely, with high current capacity and reliable electrical contact.
