Vendor: Blue Sea Systems
Sku:
BSS2126
Blue Sea MaxiBus 250A BusBar Six 5/16in-18 Studs
Regular price
$99.95
Regular price
Sale price
$99.95
Unit price
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Description
Description

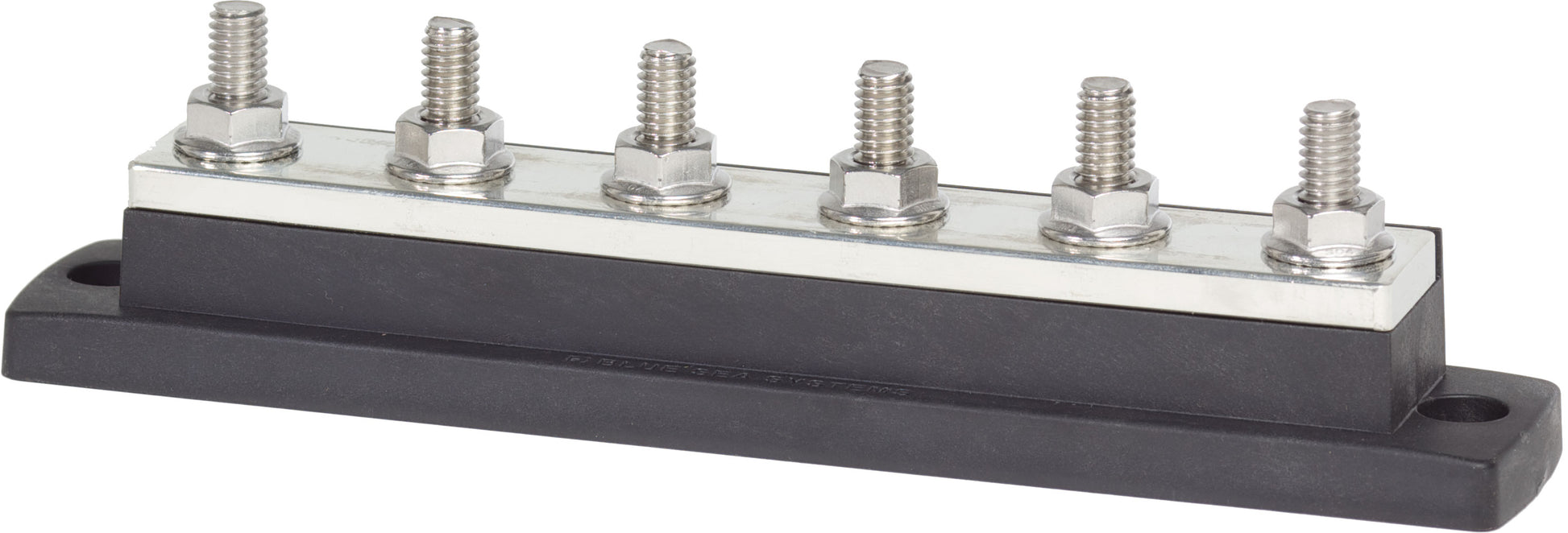

Blue Sea 2126 MaxiBus 250A BusBar - Six 5/16"-18 Studs
Model: 2126-BSS
- Insert moulded stainless steel studs eliminate the need for securing nuts and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminium and steel mounting surfaces
Busbars are used to consolidate multiple wires or feed multiple circuits
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 6 |
| Terminal Type | 5/16"-18 Stud |
| Continuous Rating | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
