Blue Sea ML-RBS Remote Battery Switch with Manual Control
Models:
-

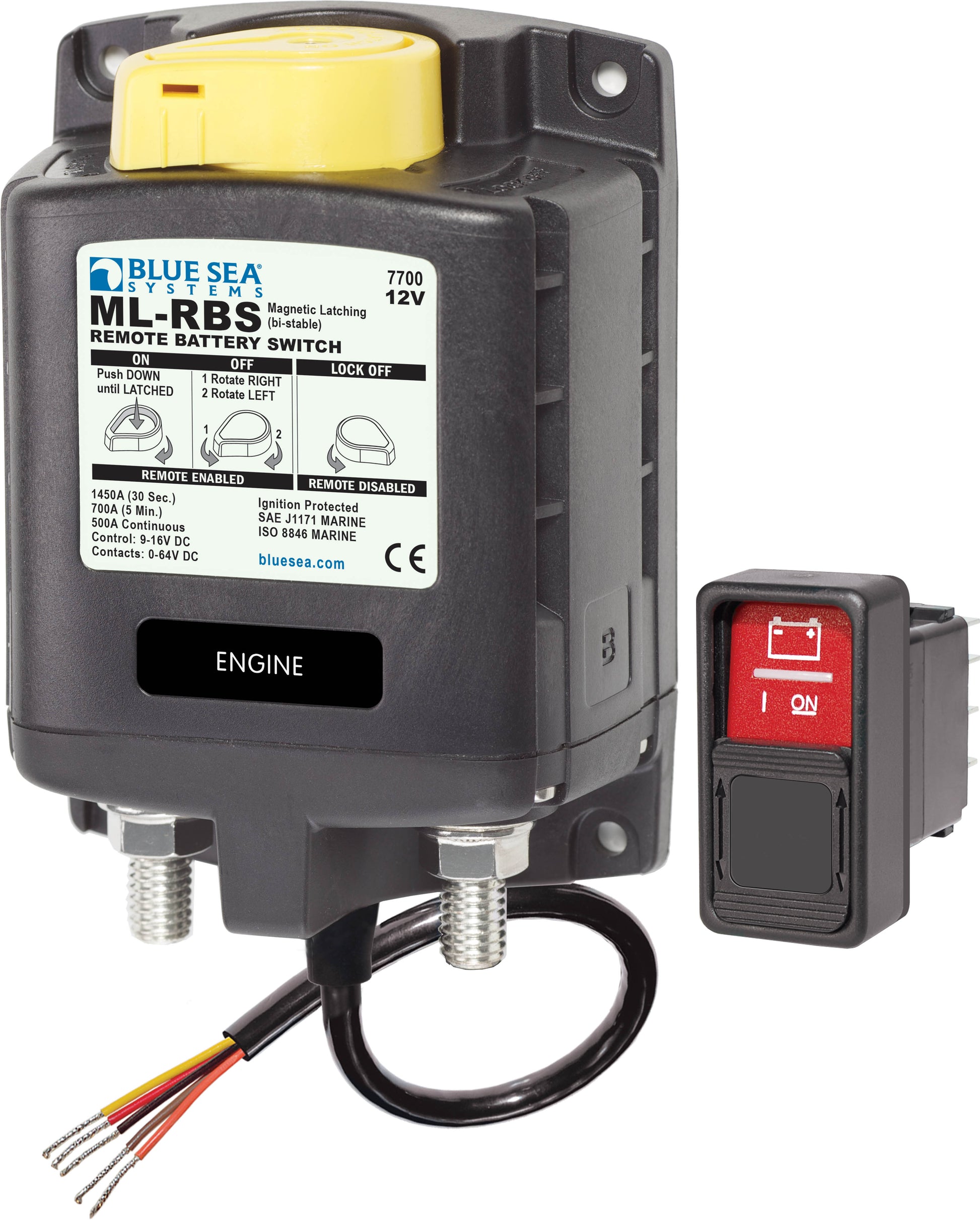

7700-BSS (12V DC)
-

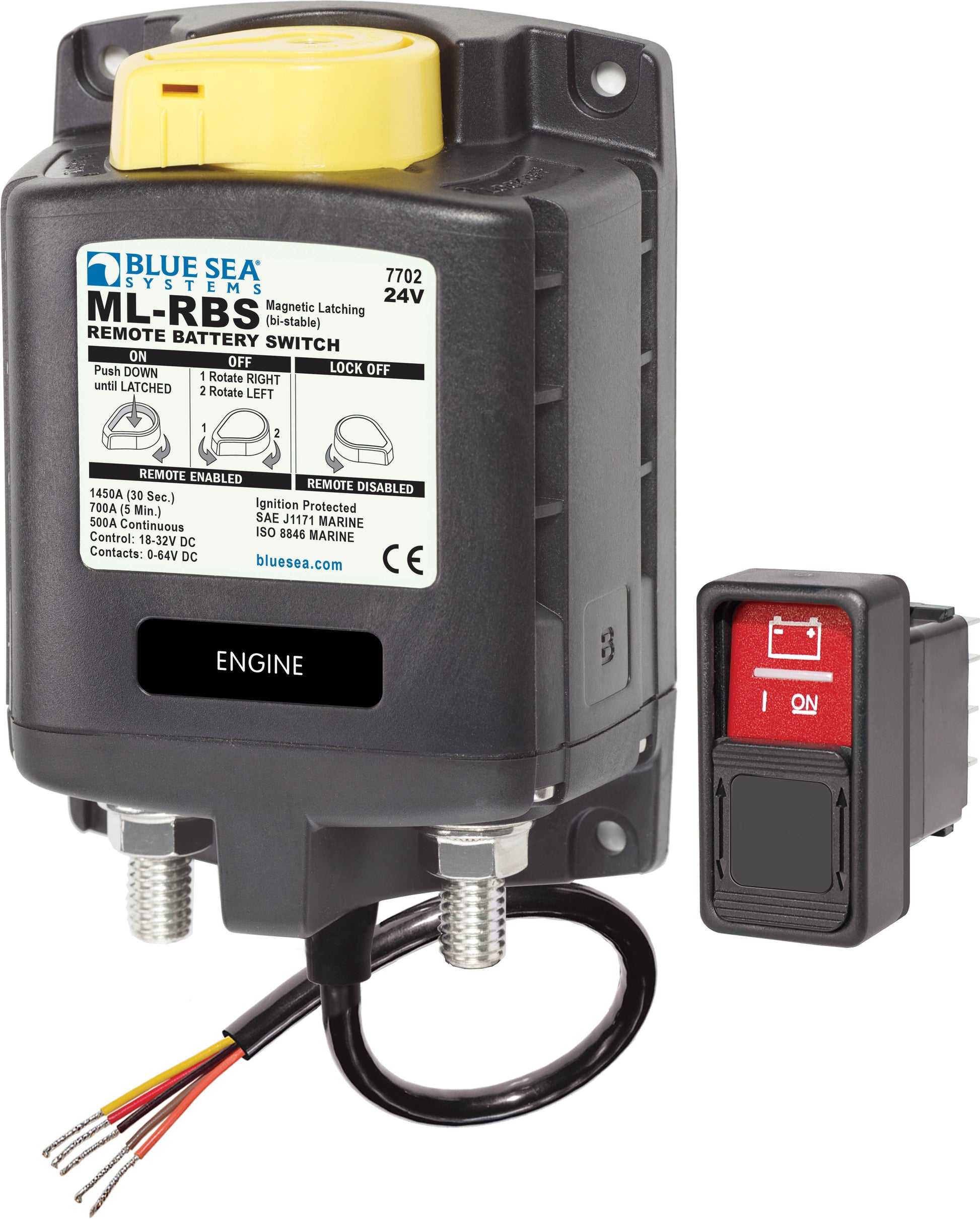

7702-BSS (24V DC)
Overview
Blue Sea ML-RBS Remote Battery Switches with manual control provide safe, high-amperage switching under load. Featuring a manual override knob with LOCKED OFF capability for servicing, these switches ensure operational safety both locally and remotely. The switches include tin-plated copper studs for excellent conductivity and corrosion resistance, accepting large battery cables up to 4/0 AWG.
Key Features
-
Manual override knob with LOCKED OFF mode for service safety and control with or without power
-
LED output available separately to indicate switch state remotely
-
3/8"-16 tin-plated copper studs with 7/8" (22 mm) stud length to accommodate multiple cable terminals
-
Label recesses for clear circuit identification
-
Silver alloy contacts ensure high reliability for switching live loads
-
500 Amp magnetic latching switch offers high current switching capability under load
-
Bi-Stable coil function with zero continuous coil current for efficient operation
-
Mechanical endurance rated for 100,000 cycles
Specifications Comparison
| Feature | 7700-BSS (12V) | 7702-BSS (24V) |
|---|---|---|
| Control Circuit Voltage | 9-16 V DC | 18-32 V DC |
| Control Circuit Connection | Tinned Wire | Tinned Wire |
| Nominal Voltage | 12 V DC | 24 V DC |
| Manual Control | Yes | Yes |
| Coil Function | Bi-Stable | Bi-Stable |
| Amperage Operating Current | 0 mA | 0 mA |
| Amperage Operating Current Changing State | <7A (40 ms) | <4A (40 ms) |
| Continuous Rating | 500 A | 500 A |
| Intermittent Rating | 700 A (5 minutes) | 700 A (5 minutes) |
| Cranking Rating (30 sec) | 1450 A DC | 1450 A DC |
| Cable Size to Meet Ratings | 2x (4/0) AWG | 2x (4/0) AWG |
| Live Current Switching | 300 A @ 12V DC | 300 A @ 12V DC, 150 A @ 24V DC |
| Master Control Switch Capability | No | No |
| Mechanical Endurance | 100,000 cycles | 100,000 cycles |
| Terminal Ring Diameter Clearance | 1.18 in (29.97 mm) | 1.18 in (29.97 mm) |
| Terminal Stud Length | 0.875 in (22.23 mm) | 0.875 in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) | 3/8" - 16 (M10) |
| Weight | 2.05 lb (0.93 kg) | 2.05 lb (0.93 kg) |
What’s in the Box
-
1 × ML-RBS Remote Battery Switch (Model 7700-BSS or 7702-BSS)
