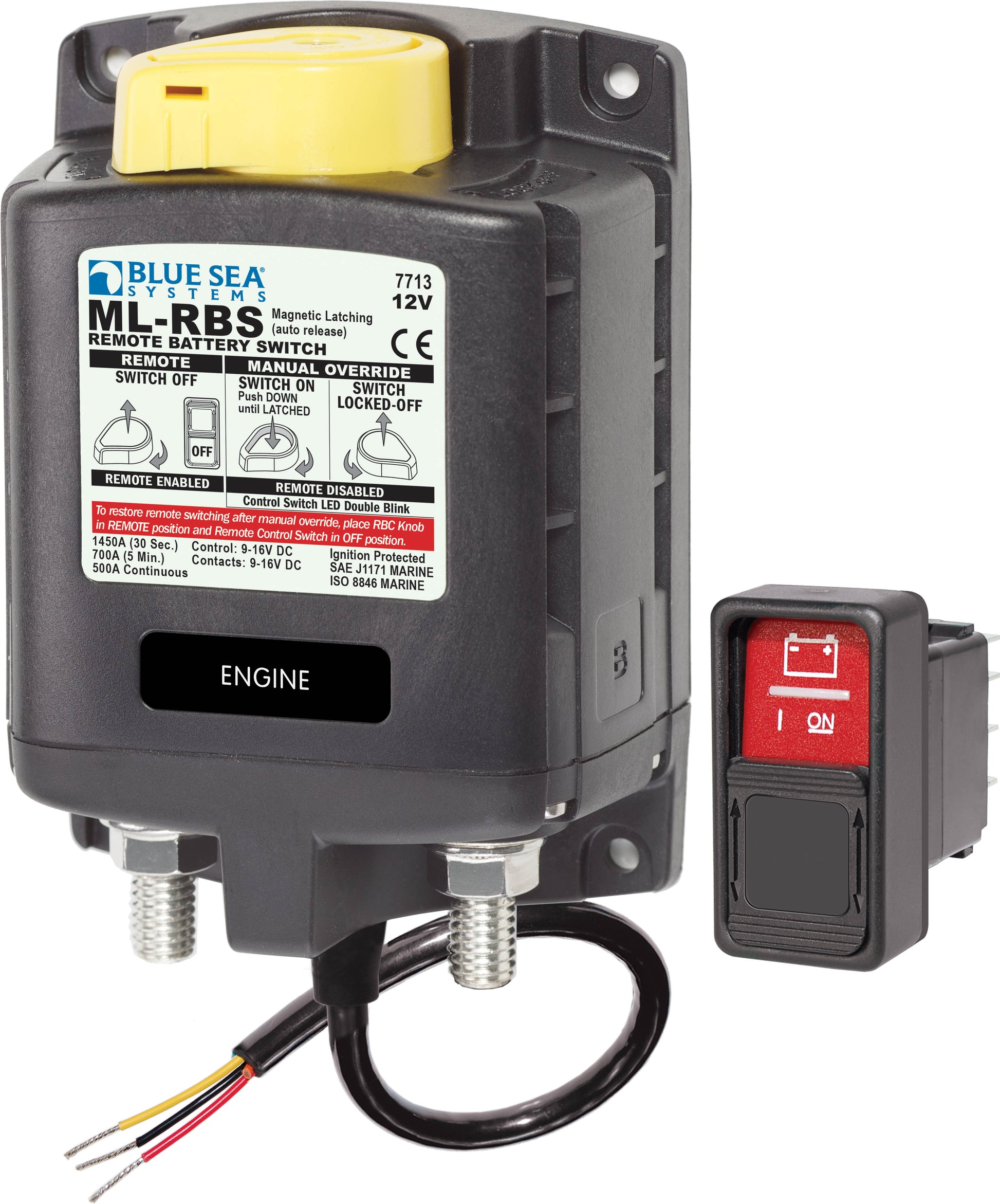

Blue Sea ML-RBS 500A Remote Battery Switch With Manual Control Auto Release.

Blue Sea ML-RBS Remote Battery Switch with Manual Control Auto-Release

Models:

• 7713-BSS (12V DC)

• 7717-BSS (24V DC)

Overview

Blue Sea Systems ML-RBS switches provide high-amperage switching under load, suitable for marine and industrial use. They include a manual override knob for safety, allowing control with or without power and offering a LOCKED OFF mode for service. Featuring magnetic latching technology, these switches can be controlled locally or remotely, with optional LED for remote switch state indication.

Key Features

• Manual override knob offers LOCKED OFF functionality for servicing and control with or without power

• LED output to remotely indicate switch state (optional LED required)

• 3/8"-16 tin-plated copper studs ensure maximum conductivity and resist corrosion

• 7/8" (22 mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability switching of live loads

• 500 Amp magnetic latching enables high-amperage switching manually or remotely

• Auto-releasing coil function compatible with SPST or SPDT control switches

• Master control switch capable with mechanical endurance rating of 100,000 cycles

Specifications Comparison

What’s in the Box

• 1 × ML-RBS Remote Battery Switch (Model 7713-BSS or 7717-BSS)

• Optional accessory: Remote Control Switch (sold separately for remote operation)
