Blue Sea P12 Battery Charger 12v Output 120/230V Input 3 Bank.

$795.95

~~$812.99~~ $795.95

Sold out

-2%

Shipping calculated at checkout.

Low stock: 3 left

Output Current: 25Amp 25Amp 40Amp

Description

Blue Sea Systems P12 Battery Chargers

Models:

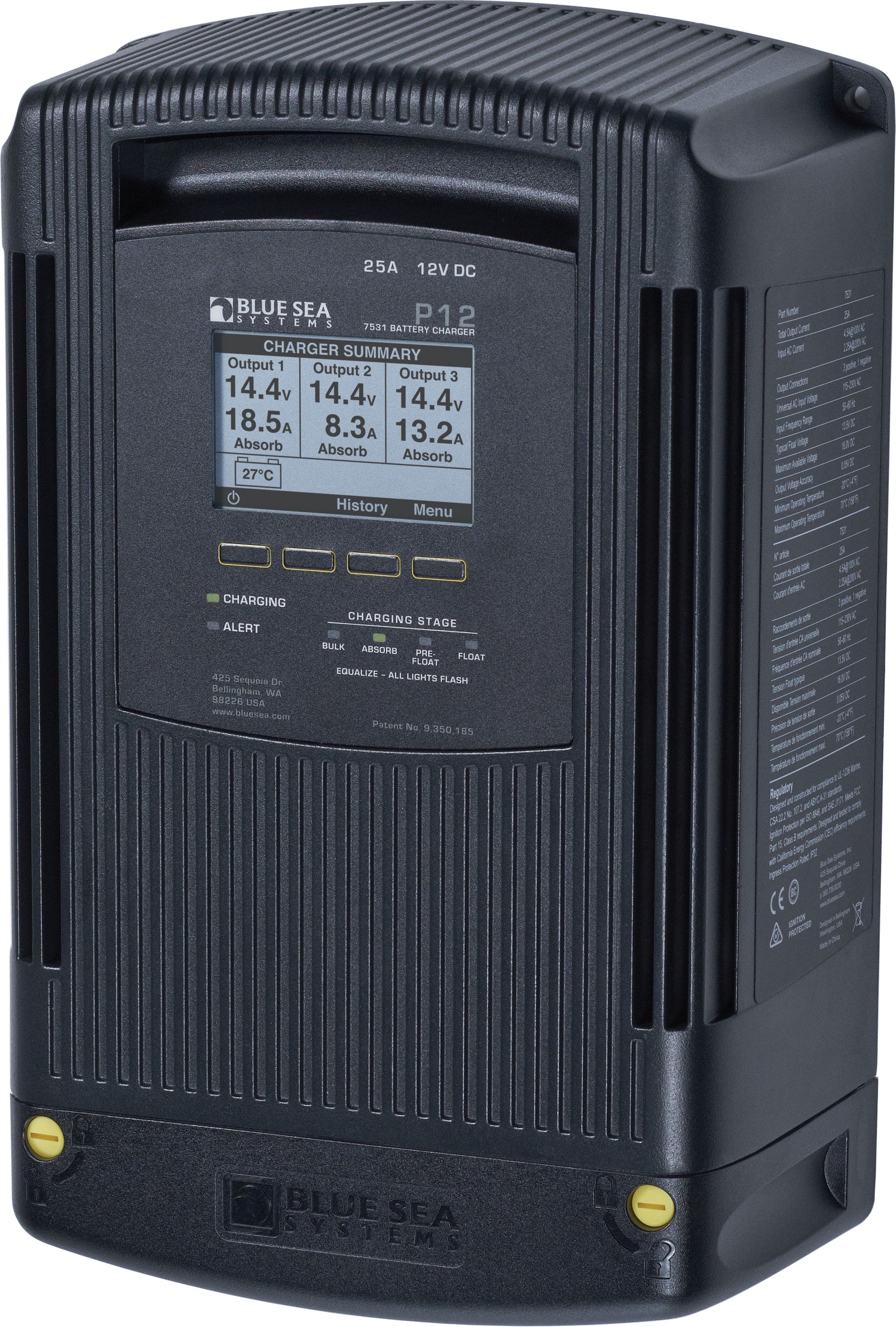

P12 25A 12V DC Battery Charger: 7531-BSS
P12 40A 12V DC Battery Charger: 7532-BSS

Overview

Blue Sea Systems P12 Battery Chargers are rugged, multi-stage battery charging units designed for harsh marine environments. Encased in a finned aluminum case for heat dissipation, these chargers feature advanced charging management including power factor correction, temperature compensation, and AC over/under voltage protection for enhanced battery life and safety. The chargers support simultaneous charging of up to three battery banks with user-defined charge profiles, customizable settings, and multi-language intuitive diagnostic screens.

Key Features

Rugged finned aluminum case for durability and cooling
Power factor corrected for efficient AC usage
Intuitive multi-language diagnostic screens
User-defined charge profiles and customizable settings
Charges up to three battery banks simultaneously
Charge coordination with Blue Sea Automatic Charging Relays (ACR) with float stage control
Battery temperature compensation adjusts the charge voltage dynamically
AC over/under voltage shut down and automatic restart
Over/under battery temperature protection to prevent damage
DC over-voltage and reverse polarity protection
Surge and short circuit protection

Specifications Comparison

Feature	7531-BSS (25A)	7532-BSS (40A)
Total Output Current	25 A	40 A
Input AC Current	4.5 A @ 100V AC, 2.25 A @ 200V AC	7.5 A @ 100V AC, 3.75 A @ 200V AC
Maximum Output Voltage	16 V DC	16 V DC
Nominal Voltage	12 V DC	12 V DC
Ignition Protected	Yes	Yes
Number of Outputs	1 negative, 3 positive	1 negative, 3 positive
Stud Size	M6	M6
Universal AC Input Voltage	115-230V AC	115-230V AC
AC Input Frequency	45-65 Hz	45-65 Hz
Output Voltage Accuracy	0.05 V	0.05 V
Typical Float Voltage	13.5 V DC	13.5 V DC
Max Operating Temperature	70°C	70°C
Min Storage Temperature	-30°C	-30°C
Max Storage Temperature	80°C	80°C
Battery Types	AGM, Flooded Lead Acid, Gel, TPPL (Thin Plate Pure Lead)	AGM, Flooded Lead Acid, Gel, TPPL (Thin Plate Pure Lead)
Recommended Battery Bank Sizes	330 Ah max, 60 Ah min	330 Ah max, 60 Ah min
Screw Terminal Torque	10 in-lb (1.13 Nm) M3, 15 in-lb (1.69 Nm) M4	10 in-lb (1.13 Nm) M3, 15 in-lb (1.69 Nm) M4
Stud Torque	80 in-lb (9.04 Nm)	80 in-lb (9.04 Nm)
Dimensions (H x W x D)	13.03 in x 8.46 in x 3.66 in	13.03 in x 8.46 in x 3.66 in
Warranty	5 years	5 years
Weight	Approx. 12 lb (5.44 kg)	Approx. 12 lb (5.44 kg)
