Vendor: Blue Sea Systems
Sku: BSS3113

Blue Sea Panel Enclosure Circuits Surface Mount System.

$224.95
$247.99 $224.95
Sold out
-9%
Shipping calculated at checkout.
Low stock: 7 left
Circuit Positions: 6 (all blank)

Description

Caret Down

Blue Sea SMS Surface Mount System Panel Enclosures

Models:

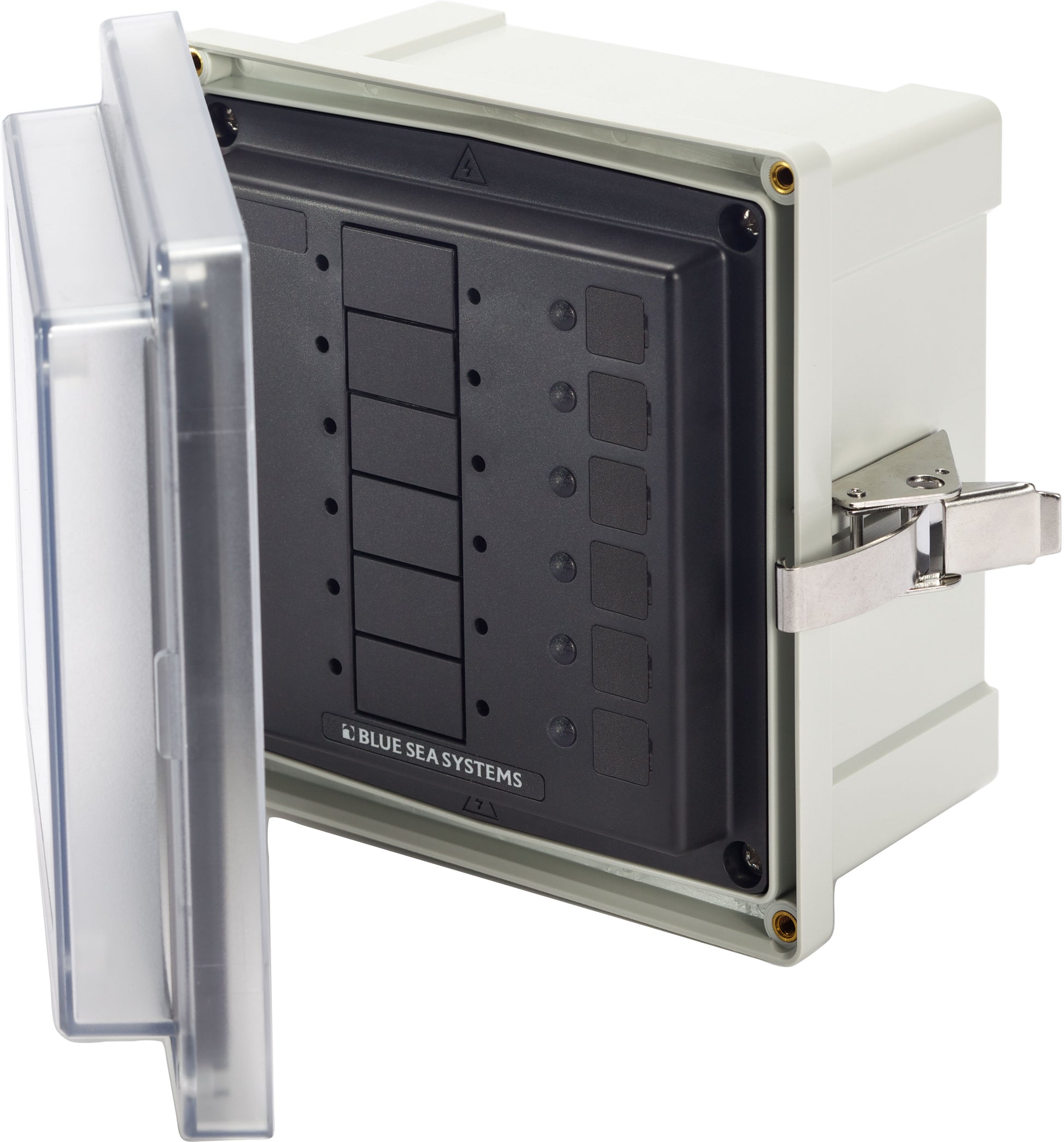

  • 3113-BSS: 6 Circuit Blank

  • 3116-BSS: 120V AC / 30A ELCI Main with 3 Blank Circuits

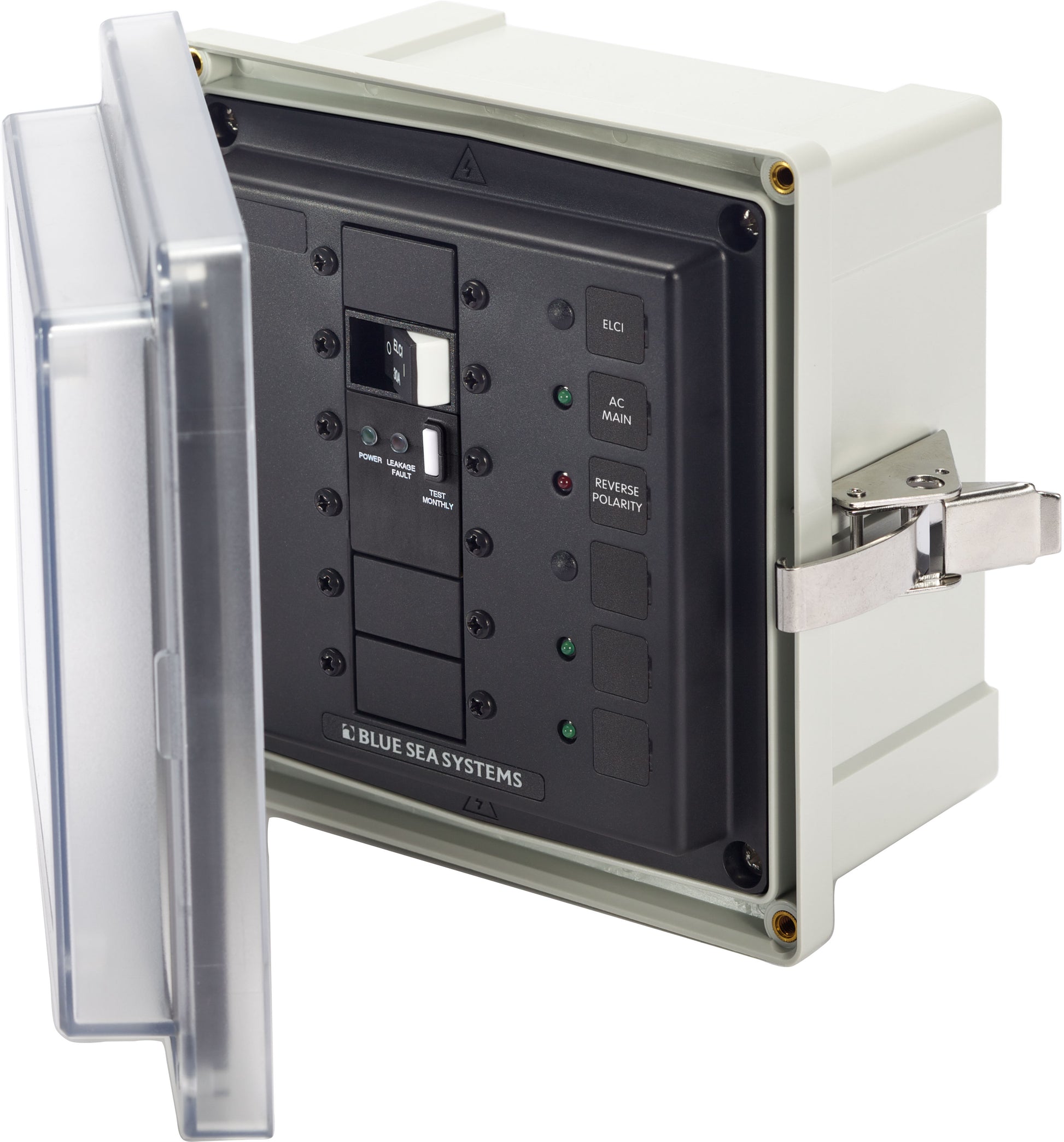

  • 3118-BSS: 120V AC / 50A ELCI Main with 2 Blank Circuits

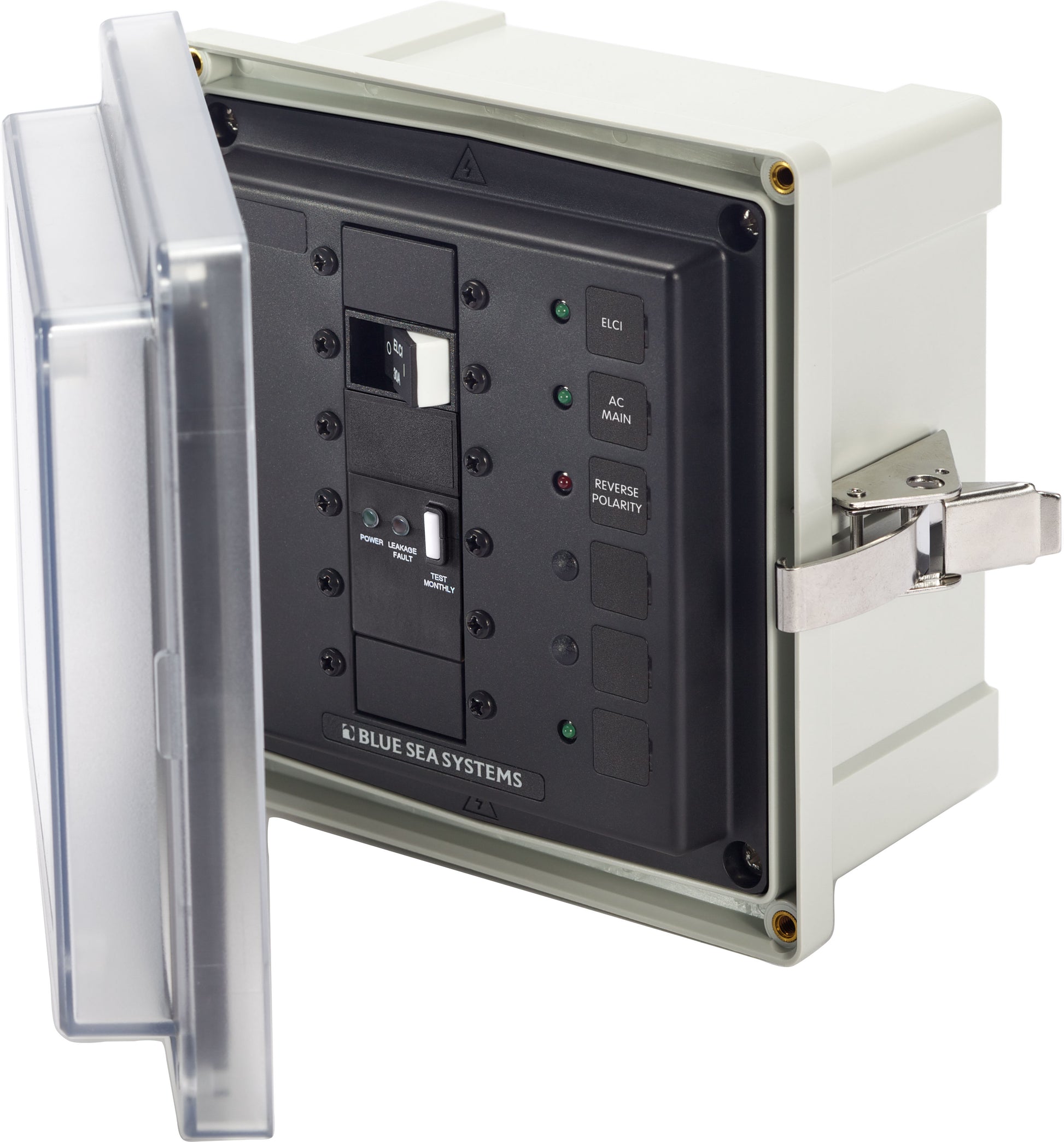

  • 3119-BSS: 120/240V AC / 50A ELCI Main with 1 Blank Circuit



Overview

Blue Sea SMS Surface Mount System Panel Enclosures are modular, durable mounting boxes designed for flexible circuit breaker loading and clear breaker status viewing. Made from glass-filled polycarbonate with clear covers, these enclosures provide strong protection with oversized seamless PUR gaskets. Stainless steel hardware and easy-to-remove hinge pins assist quick, unobstructed installation. They accommodate Carling Technologies™ A- and C-Series Flat Rocker and ELCI Main circuit breakers and meet ABYC E-11 standards when paired with ELCI mains and shore power installation.

Key Features

  • Blank apertures allow custom breaker loading

  • Glass-filled polycarbonate mounting box with clear cover for visual breaker status

  • Overlapping cover design for enhanced strength and gasket protection

  • Oversized, seamless PUR gasket for waterproof sealing

  • Easily removable stainless steel hinge pin for access during installation

  • Stainless steel latch secures cover without enclosure penetration

  • Includes stainless steel mounting hardware

  • Waterproof glands included on ELCI main models for wiring protection

  • LEDs for backlighting and ON indication included on ELCI main models

  • Meets ABYC E-11 when used with ELCI Main breakers within 10 feet of shore power inlet

Specifications

Feature 3113-BSS 3116-BSS 3118-BSS 3119-BSS
Circuit Positions 6 (all blank) 3 blank + 1 ELCI Main (30A) 2 blank + 1 ELCI Main (50A) 1 blank + 1 ELCI Main (50A, 120/240V AC)
Enclosure Size 6.0" x 6.0" x 4.0" 6.0" x 6.0" x 4.0" 6.0" x 6.0" x 4.0" 6.0" x 6.0" x 4.0"
Exterior Dimensions 7.6" x 7.4" x 4.7" 7.6" x 7.4" x 4.7" 7.6" x 7.4" x 4.7" 7.6" x 7.4" x 4.7"
Operating Temp Range -40° C to 85° C -40° C to 85° C -40° C to 85° C -40° C to 85° C
Cover & Hardware 10-32 Stainless Steel screws 10-32 Stainless Steel screws 10-32 Stainless Steel screws 10-32 Stainless Steel screws
Mounting Hardware 1/4" Diameter, #12 (6 mm) 1/4" Diameter, #12 (6 mm) 1/4" Diameter, #12 (6 mm) 1/4" Diameter, #12 (6 mm)
Weight ~7.00 lb (3.18 kg) ~7.00 lb (3.18 kg) ~7.00 lb (3.18 kg) ~7.00 lb (3.18 kg)


What’s in the Box

  • For 3113-BSS:

    • SMS Panel Enclosure

    • 6 LED plugs

    • 12 circuit breaker mounting screws

    • Label kits with Basic DC & AC labels and Panel Voltage ID labels

  • For 3116-BSS:

    • SMS Enclosure

    • 120V AC / 30A ELCI Main breaker

    • Waterproof wire glands for varying wire sizes

    • LED lights for ON and Reverse Polarity indication

    • Circuit breaker mounting screws and various labeled indicators

  • For 3118-BSS:

    • SMS Panel Enclosure

    • 120V AC / 50A ELCI Main breaker

    • Wire glands for small/medium/large wires

    • Green and red LEDs for status indication

    • Circuit breaker mounting screws and multiple labeling kits

  • For 3119-BSS:

    • SMS Panel Enclosure

    • 120/240V AC / 50A ELCI Main breaker

    • Wire glands

    • Green and red LEDs for ON/Reversed Polarity

    • Circuit breaker mounting screws and label kits
