Blue Sea PowerBar 600A BussBar 3/8in - 16 Studs.
Couldn't load pickup availability
Description
Description
Blue Sea PowerBar 600A BusBars
Models:
-

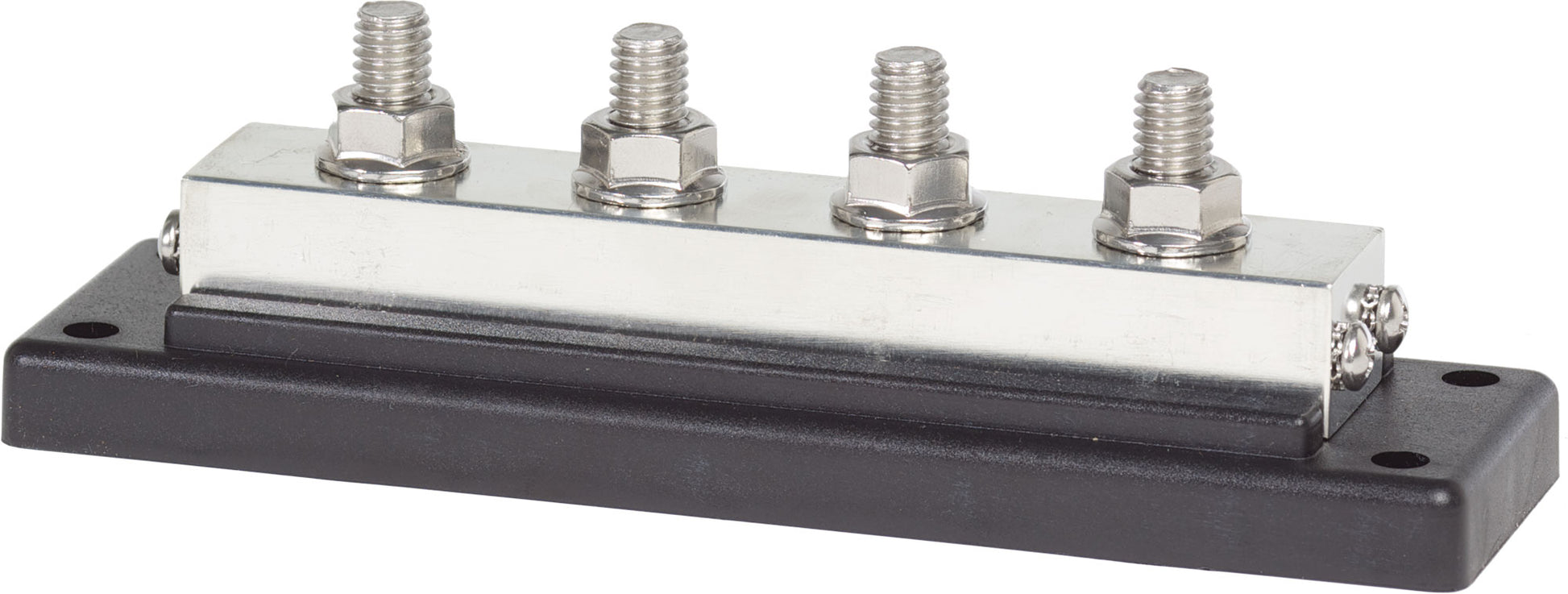

Four 3/8"-16 Studs: 2104-BSS
-

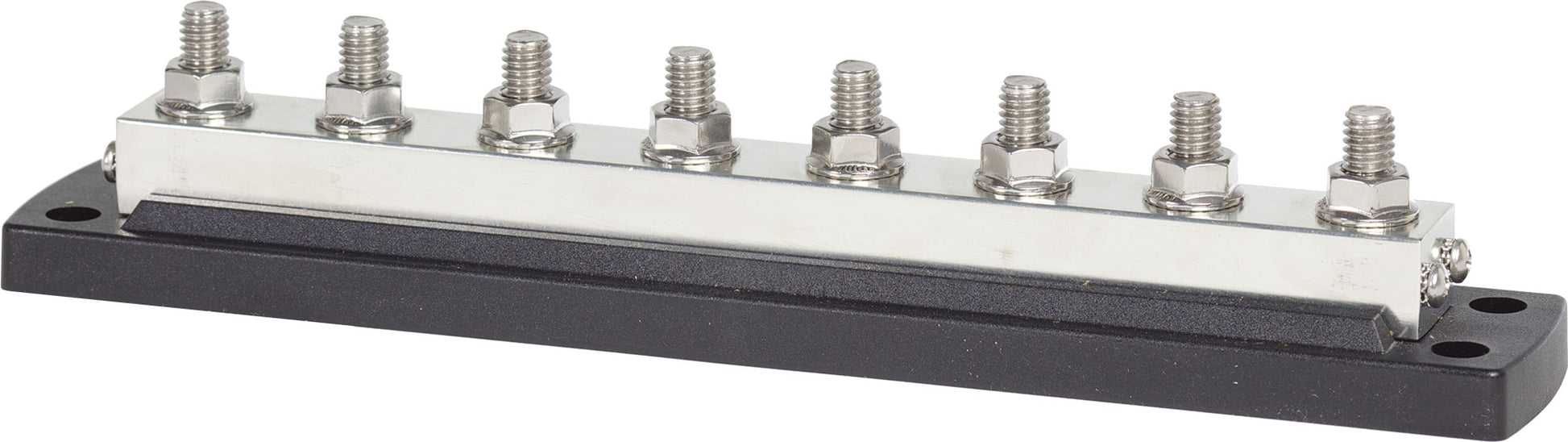

Eight 3/8"-16 Studs: 2107-BSS
Overview
Blue Sea Systems PowerBar BusBars are heavy-duty electrical distribution busbars designed for applications requiring high continuous amperage capacity. Constructed with UL 94-V0 rated, glass reinforced thermoplastic base material and tin-plated copper bus for excellent conductivity and corrosion resistance, these busbars provide reliable, high-current power distribution.
Key Features
-
High continuous rating suitable for demanding marine and industrial power needs
-
Ultra-durable UL 94-V0 rated, glass reinforced thermoplastic base resists heat and impact
-
Tin-plated copper bus material ensures excellent conductivity and corrosion resistance
-
Large terminal studs (3/8"-16) designed for high torque and secure connections
-
Recessed mounting to avoid accidental shorts and provide safety
Specifications Comparison
| Feature | 2104-BSS (4 Stud) | 2107-BSS (8 Stud) |
|---|---|---|
| Maximum Voltage | 300V AC, 48V DC | 300V AC, 48V DC |
| Number of Terminal Studs | 4 | 8 |
| Terminal Type | 3/8"-16 Stud | 3/8"-16 Stud |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) | 140 in-lb (15.82 Nm) |
| Continuous Current Rating | 545A AC, 600A DC | 545A AC, 600A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS11000 | Tin-Plated Copper CDA 110 / UNS11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) | 15 in-lb (1.69 Nm) |
| Weight | 1.71 lb (0.78 kg) | 2.75 lb (1.25 kg) |
Typical Use
These PowerBar busbars are ideal for high-current power distribution in marine electrical systems, battery banks, and industrial applications requiring stable, reliable bus connection points with high load capacity and durable construction.
