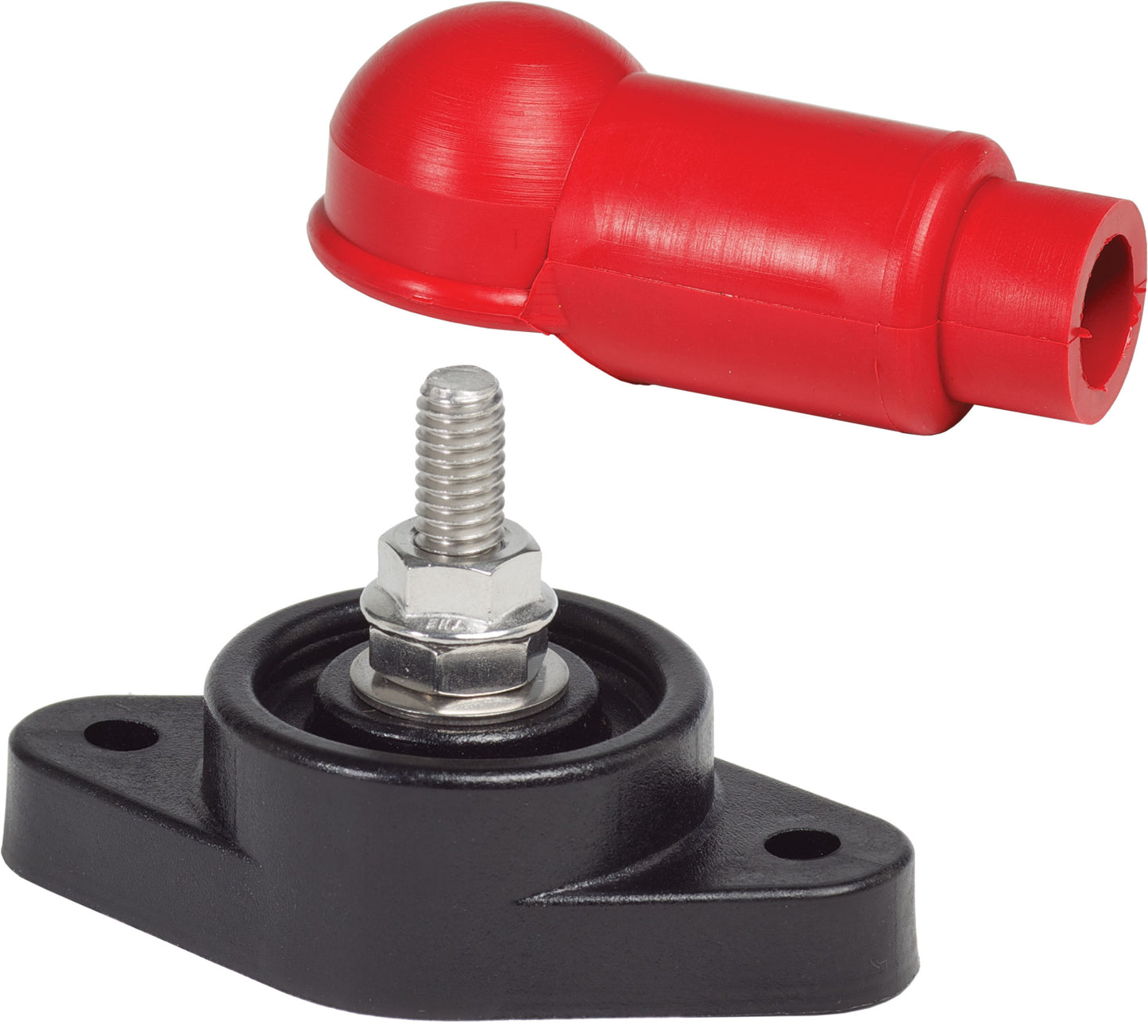

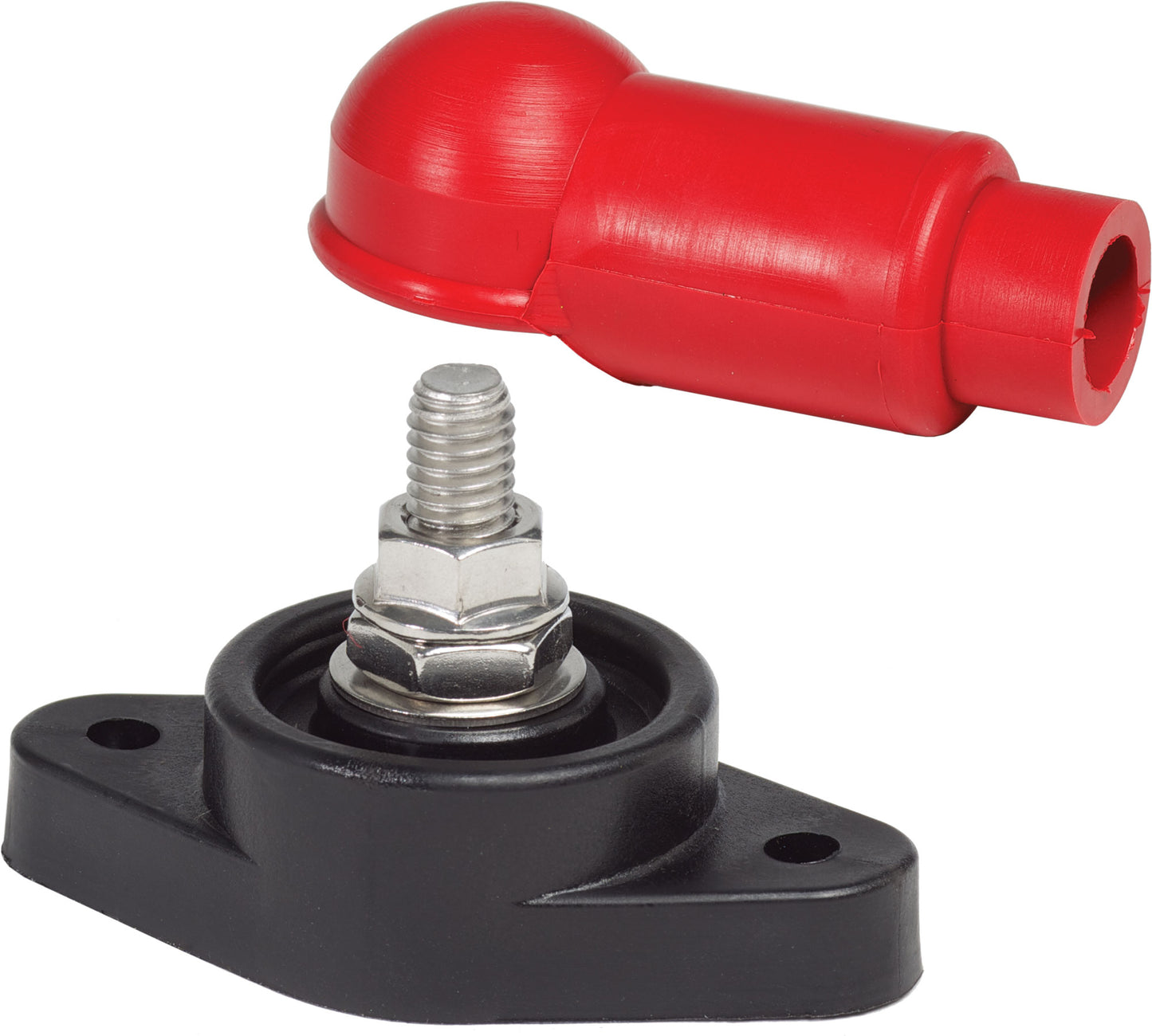

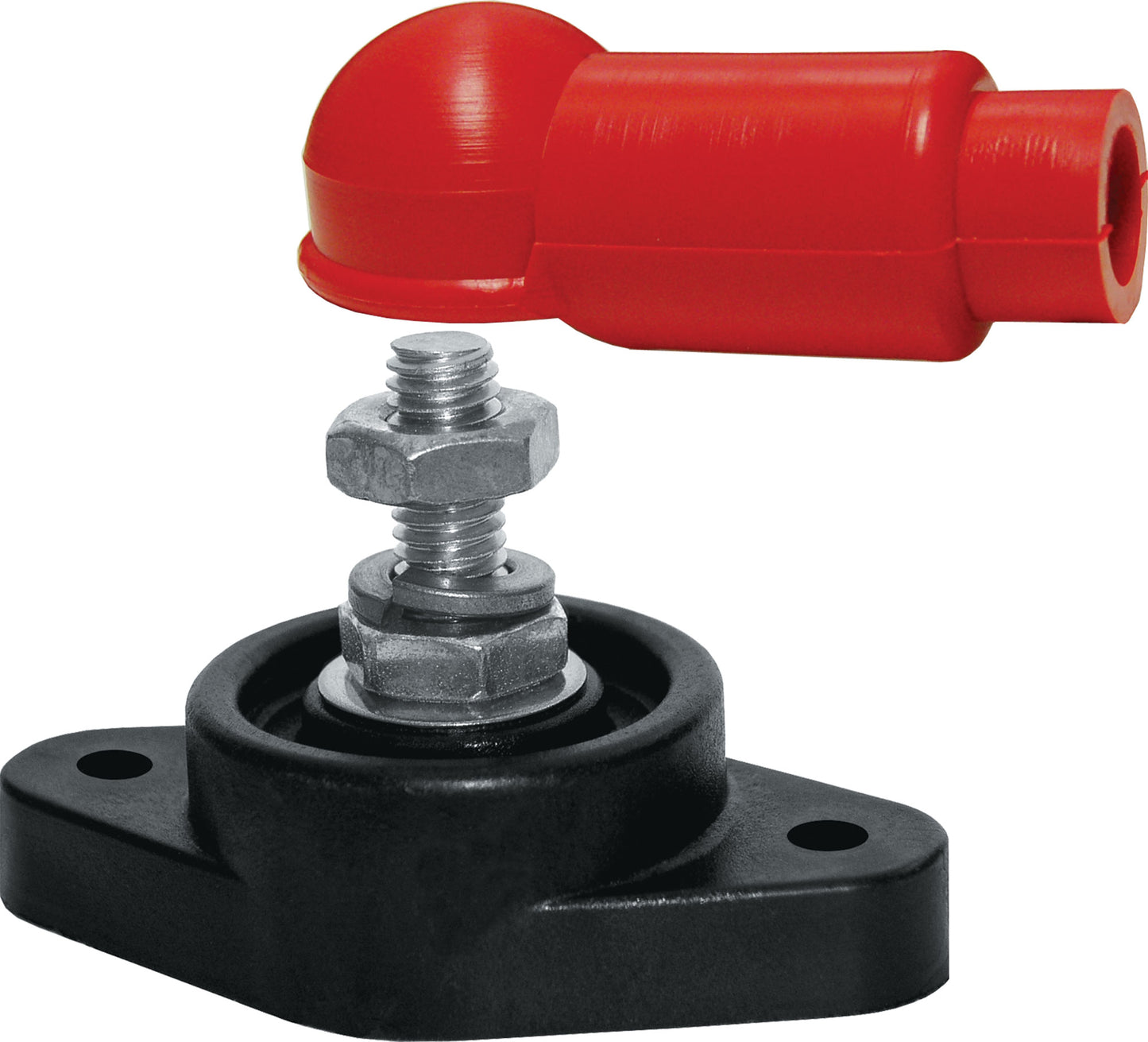

Blue Sea Systems PowerPost Studs
Models:
-
1/4"-20 Stud: 2001-BSS
-
5/16"-18 Stud: 2002-BSS
-
3/8"-16 Stud: 2003-BSS
Blue Sea Systems PowerPost Studs provide secure connections for high amperage cables designed for marine and industrial electrical systems. These units feature insulated single stainless steel studs capable of terminating multiple large conductors. The base material is PBT, UL 94 V0 rated reinforced thermoplastic, ensuring durability and flame resistance.
Key Features
-
Secure connection of high amperage cables
-
Insulated single stainless steel stud for multiple conductor termination
-
Durable PBT UL 94 V0 rated reinforced thermoplastic base
-
Stud dimensions sized for various cable requirements
-
Designed for 48V DC systems
Specifications Comparison
| Feature | 2001-BSS (1/4"-20 Stud) | 2002-BSS (5/16"-18 Stud) | 2003-BSS (3/8"-16 Stud) |
|---|---|---|---|
| Color | Red | Red | Red |
| Maximum Voltage | 48V DC | 48V DC | 48V DC |
| Stud Size | 1/4"-20 x 1-1/16" | 5/16"-18 x 7/8" | 3/8"-16 x 7/8" |
| Base Material | Reinforced Thermoplastic (PBT UL94 V0) | Reinforced Thermoplastic (PBT UL94 V0) | Reinforced Thermoplastic (PBT UL94 V0) |
| Recommended Torque | 70 in-lb (7.91 N·m) | Not specified | 140 in-lb (15.82 N·m) |
Typical Use
Ideal for terminating and securely connecting multiple large conductors and high current cables in confined or demanding electrical setups.
