Blue Sea Dual PowerPost With Insulators.
Couldn't load pickup availability
Description
Description
Blue Sea Systems Dual PowerPost With Insulators
Models:
-

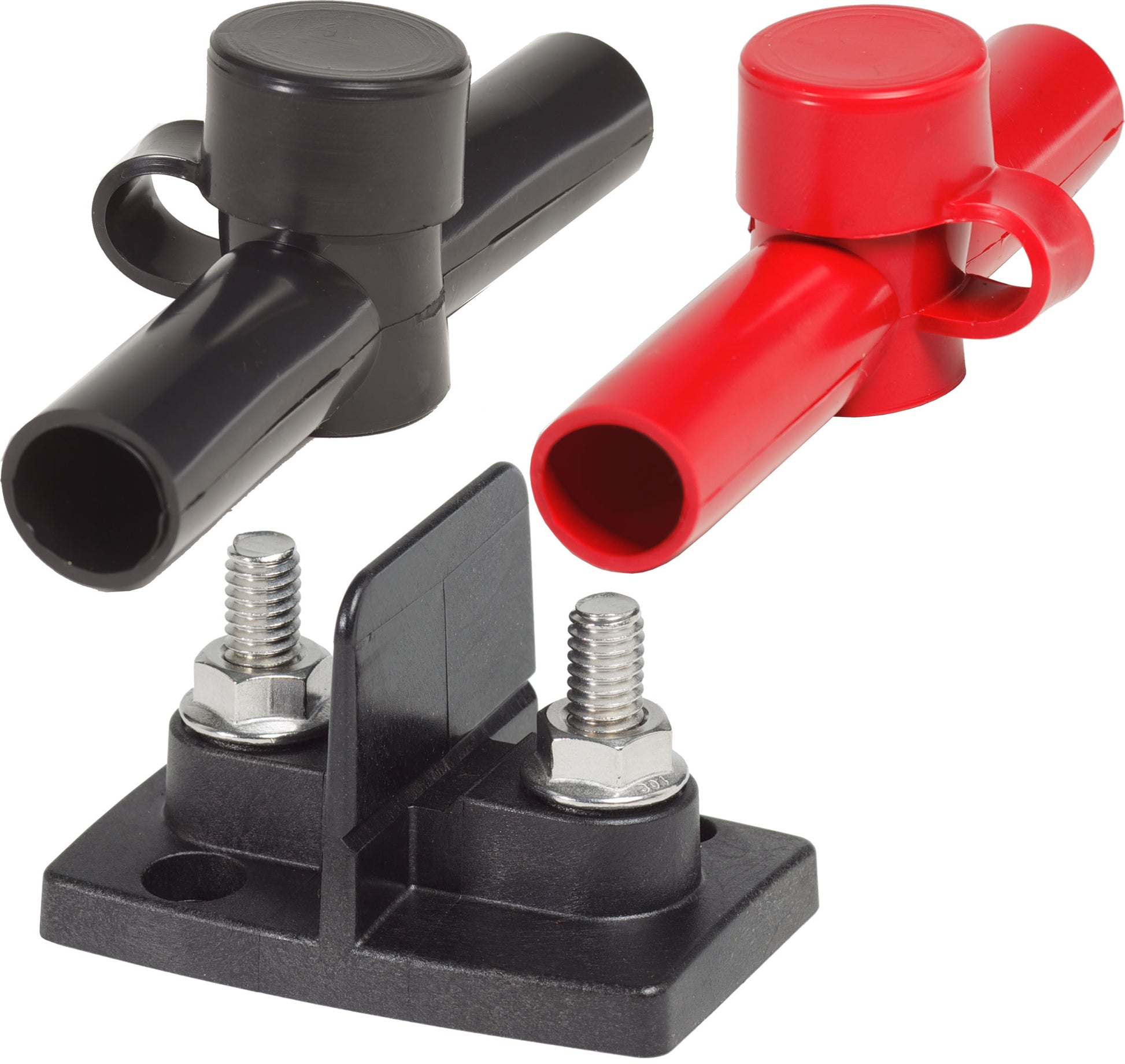

Two 5/16"-18 Studs: 2016-BSS
-

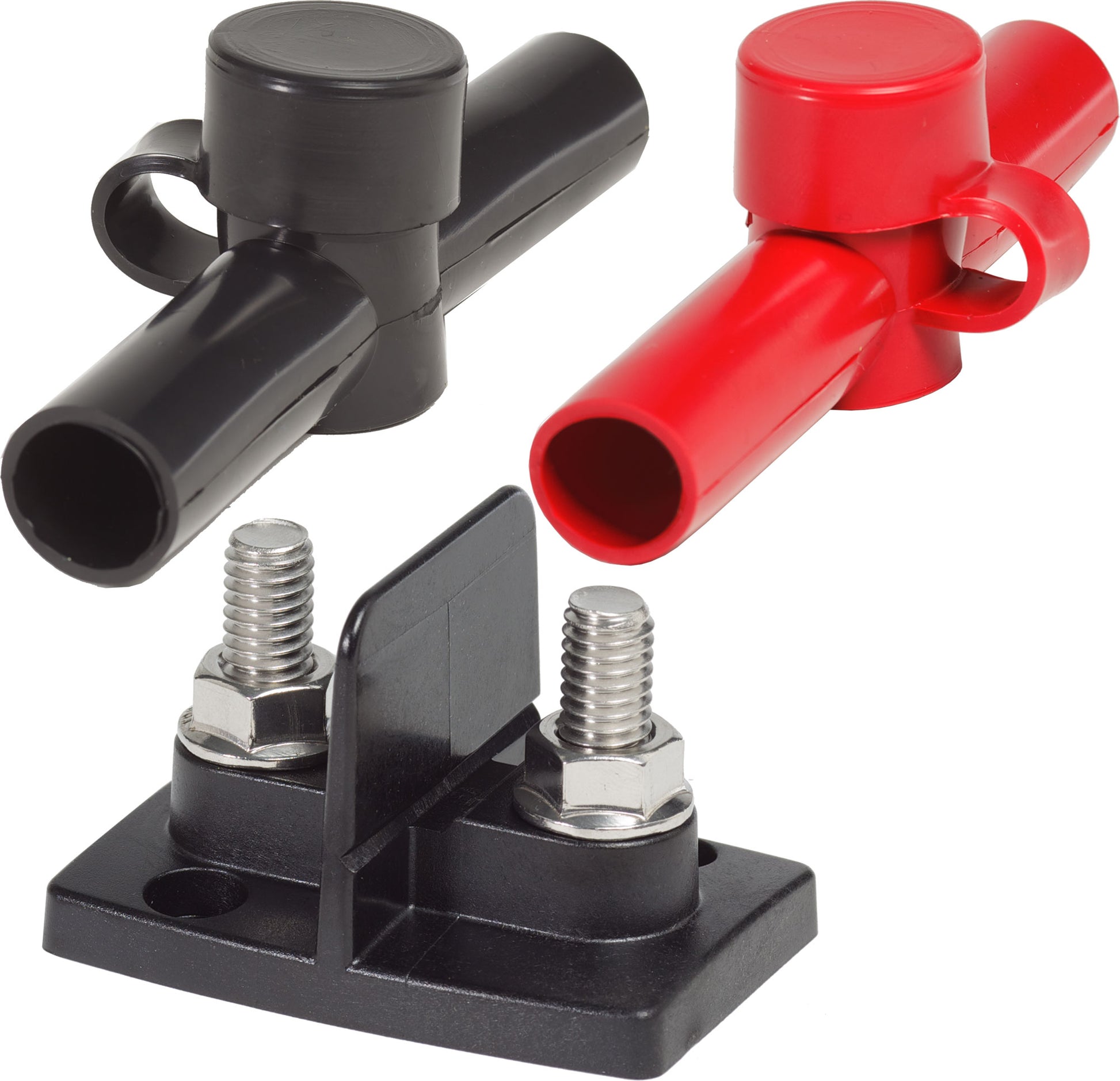

Two 3/8"-16 Studs: 2017-BSS
-

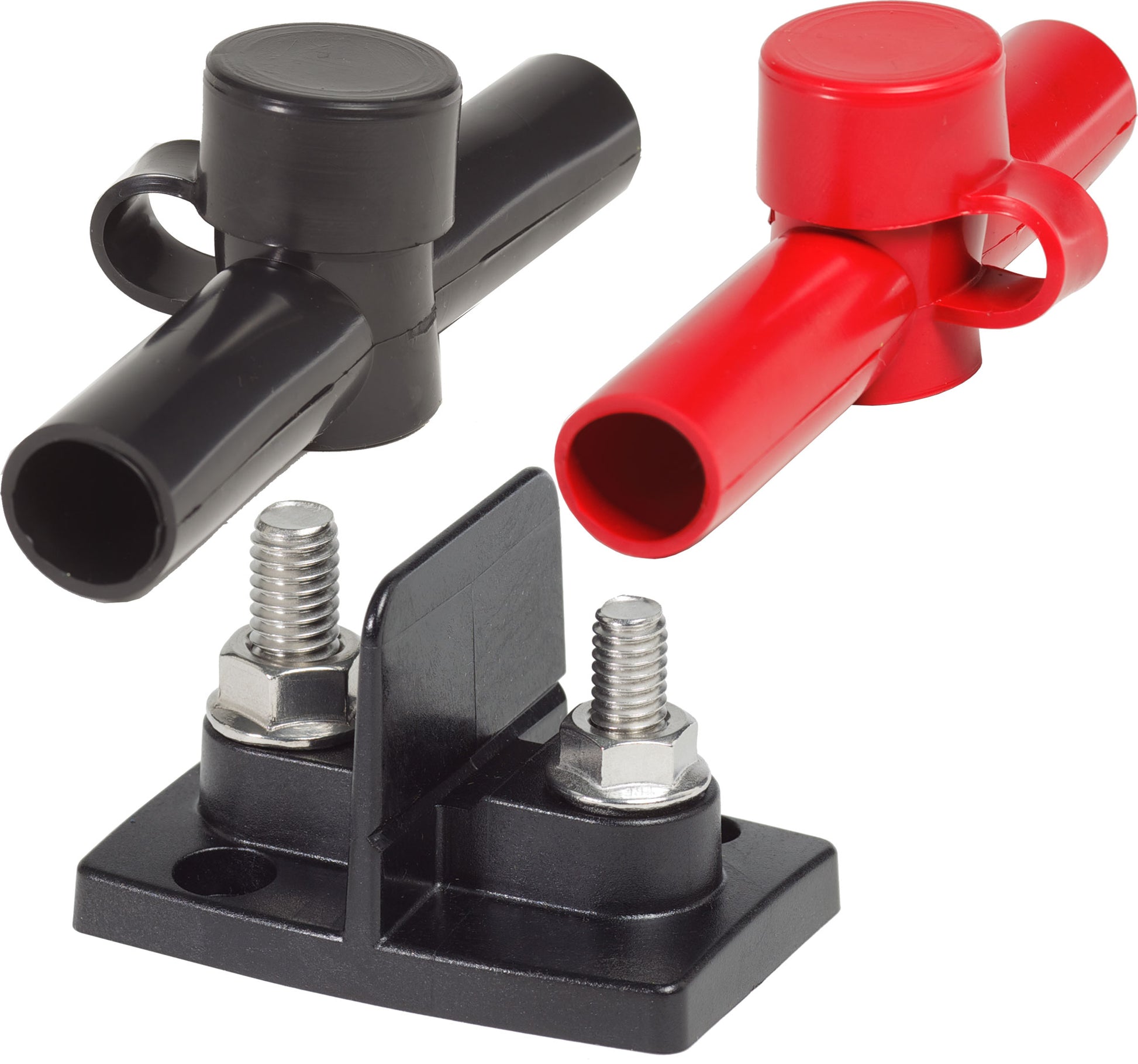

One 5/16"-18 and One 3/8"-16 Studs: 2018-BSS
Blue Sea Systems Dual PowerPosts are designed for securely connecting high amperage conductors with dual stud configurations. Each includes one black and one red insulator, providing a convenient termination point for extending outboard harnesses or other conductors in marine and industrial applications.
Key Features
-
Connects high amperage conductors reliably
-
Dual stud design with color-coded black and red insulators for polarity identification
-
Provides termination points for harness extensions or conductor joining
-
Rated for 48V DC systems
Specifications Comparison
| Feature | 2016-BSS (Two 5/16"-18 Studs) | 2017-BSS (Two 3/8"-16 Studs) | 2018-BSS (One 5/16"-18 and One 3/8"-16 Stud) |
|---|---|---|---|
| Color | Red and Red | Red and Red | Red and Red |
| Maximum Voltage | 48V DC | 48V DC | 48V DC |
| Stud Size | 5/16"-18 | 3/8"-16 | One 5/16"-18 and One 3/8"-16 |
| Recommended Torque | 120 in-lb (13.56 Nm) | 140 in-lb (15.82 Nm) | 120–140 in-lb (13.56–15.82 Nm) |
Typical Use
Ideal for creating reliable, dual connection points for high amp electrical systems where extension or combination of harnesses is needed
