Blue Sea AC Rotary Switches 120V.

$150.99

~~$150.99~~ $150.99

Sold out

Shipping calculated at checkout.

Low stock: 5 left

Position & Amps: 2 +OFF 2 +OFF 3 +OFF 2 +OFF (65A)

Description

Blue Sea Systems 120V AC Rotary Switches

Models:

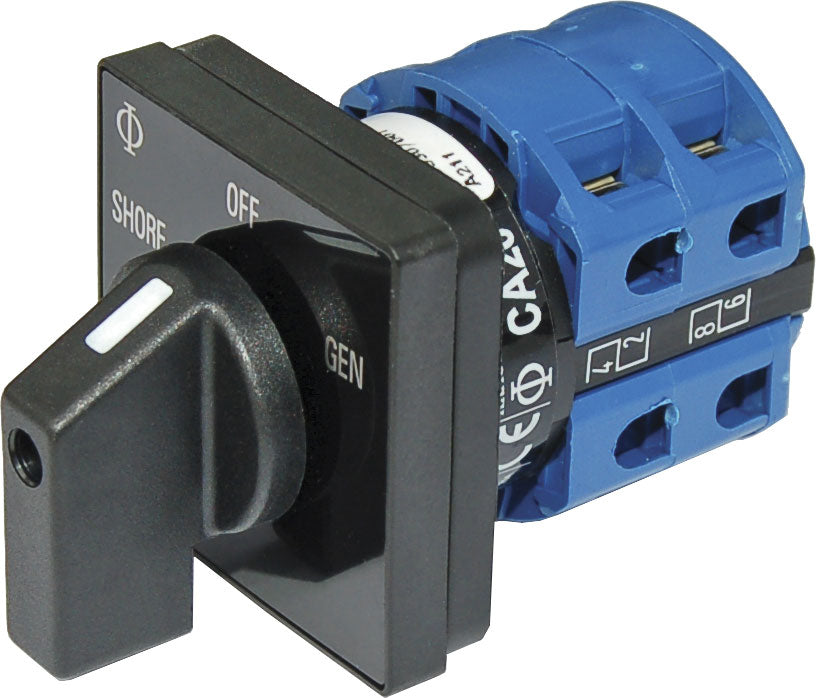

OFF + 2 Positions 120V AC 30A: 9009-BSS

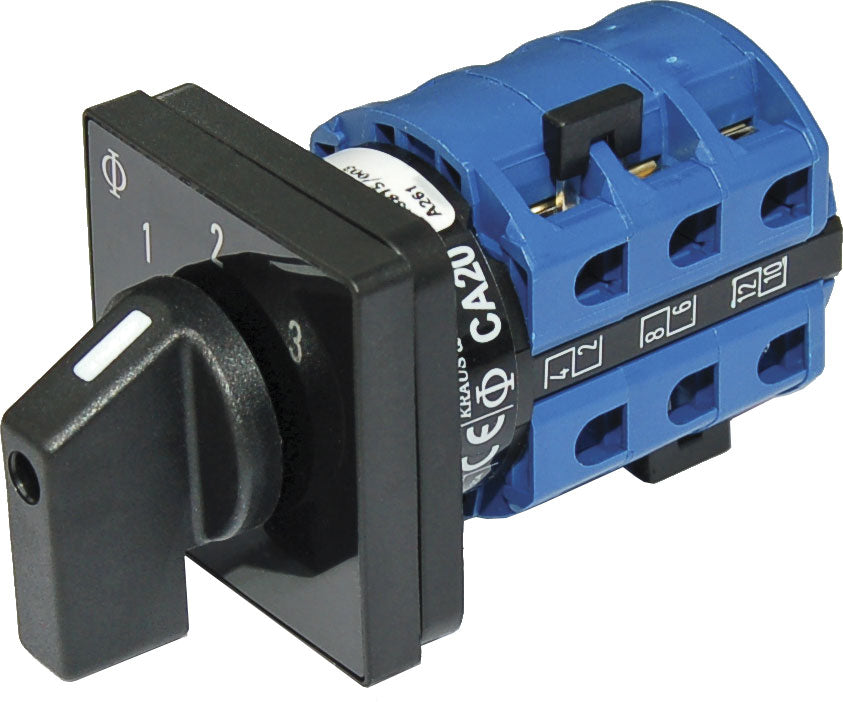

OFF + 3 Positions 120V AC 30A: 9010-BSS

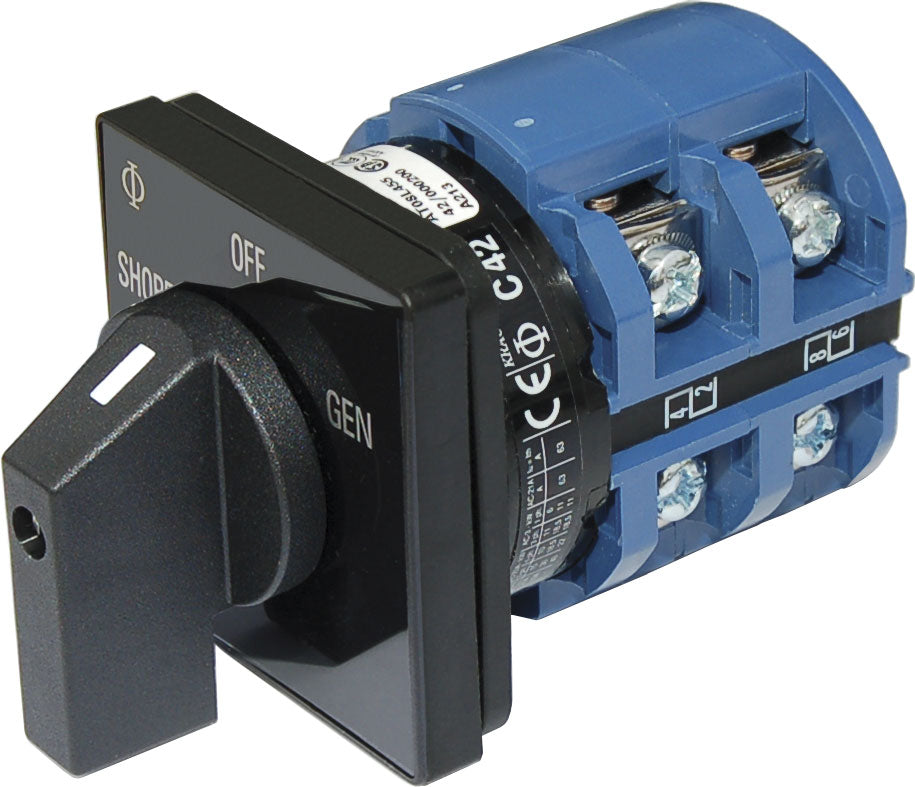

OFF + 2 Positions 120V AC 65A: 9011-BSS

These Blue Sea Systems AC Rotary Switches provide compact, heavy-duty solutions for safely managing multiple AC power sources. They allow connection and selection between two or three 120 or 230 Volt AC sources on a single circuit, ideal where circuit protection is implemented elsewhere. Designed for ease of use with intuitive one-handed operation, each switch is UL listed for safety and mounts in panels up to 0.16" (4.00 mm) thick.

Key Features

Switches multiple AC sources (2 or 3) with an OFF position
Compact design suitable for panel mounting
Heavy-duty industrial rating (especially for 65A model)
Intuitive one-hand operation
UL listed for safety compliance
Mounts in panels up to 0.16" (4 mm) thick

Specifications Comparison

Feature	9009-BSS (OFF + 2 Positions 30A)	9010-BSS (OFF + 3 Positions 30A)	9011-BSS (OFF + 2 Positions 65A)
Positions	2 + OFF	3 + OFF	2 + OFF
Source Selection	2	3	2
Nominal Voltage	120 V AC	120 V AC	120 V AC
Poles	2	2	2
Load Circuits Out	1	1	1
Maximum Amperage	30 A	30 A	65 A
Maximum Voltage	600 V AC	600 V AC	600 V AC
Source Inputs	2	3	2
Dimensions (HxWxD)	1.89" x 1.89" x 1.91"	1.89" x 1.89" x 2.41"	2.52" x 2.52" x 2.41"
UL Listed	Yes	Yes	Yes

Typical Use

Ideal for selecting among multiple AC power sources on boats, RVs, and industrial equipment where circuit protection is provided separately. Facilitates switching between shore power, generator, and inverter supplies.
