Blue Sea AC Rotary Switches 240V 65 Amp.

$430.99

~~$430.99~~ $430.99

Sold out

Shipping calculated at checkout.

Low stock: 3 left

Position: 2 + OFF 2 + OFF 3 + OFF

Description

Blue Sea Systems AC Rotary Switches - 240V AC 65A

Models:

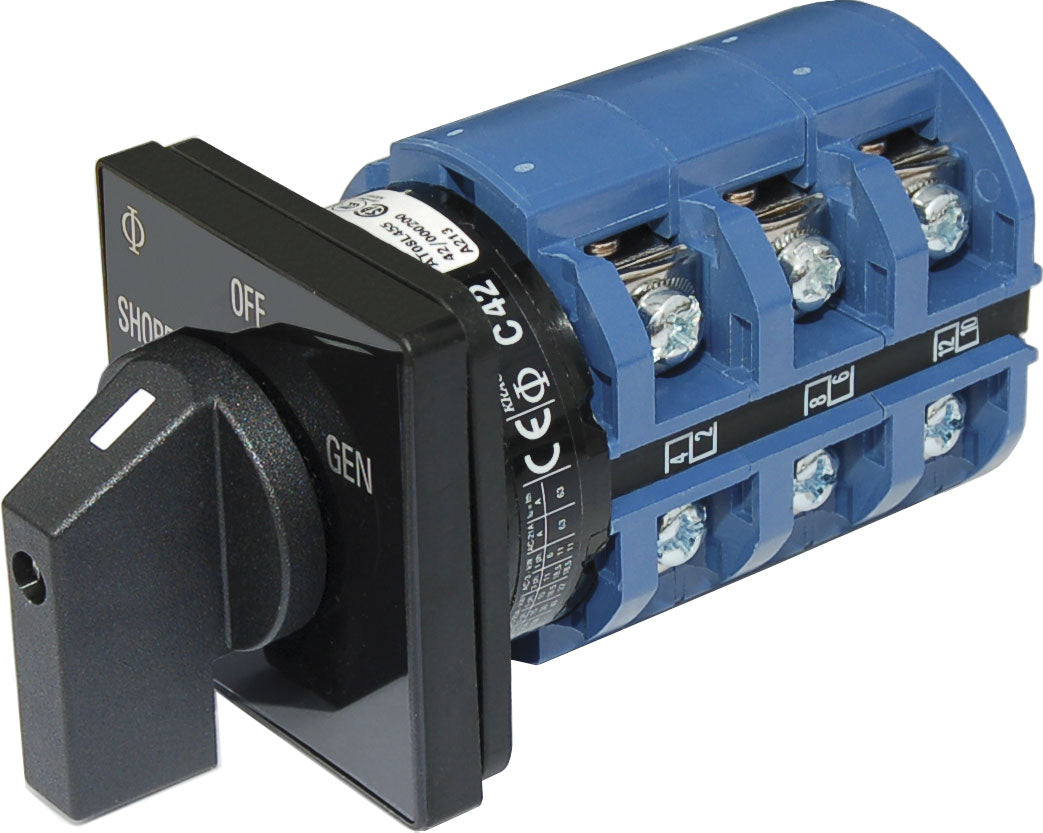

OFF + 2 Positions: 9019-BSS

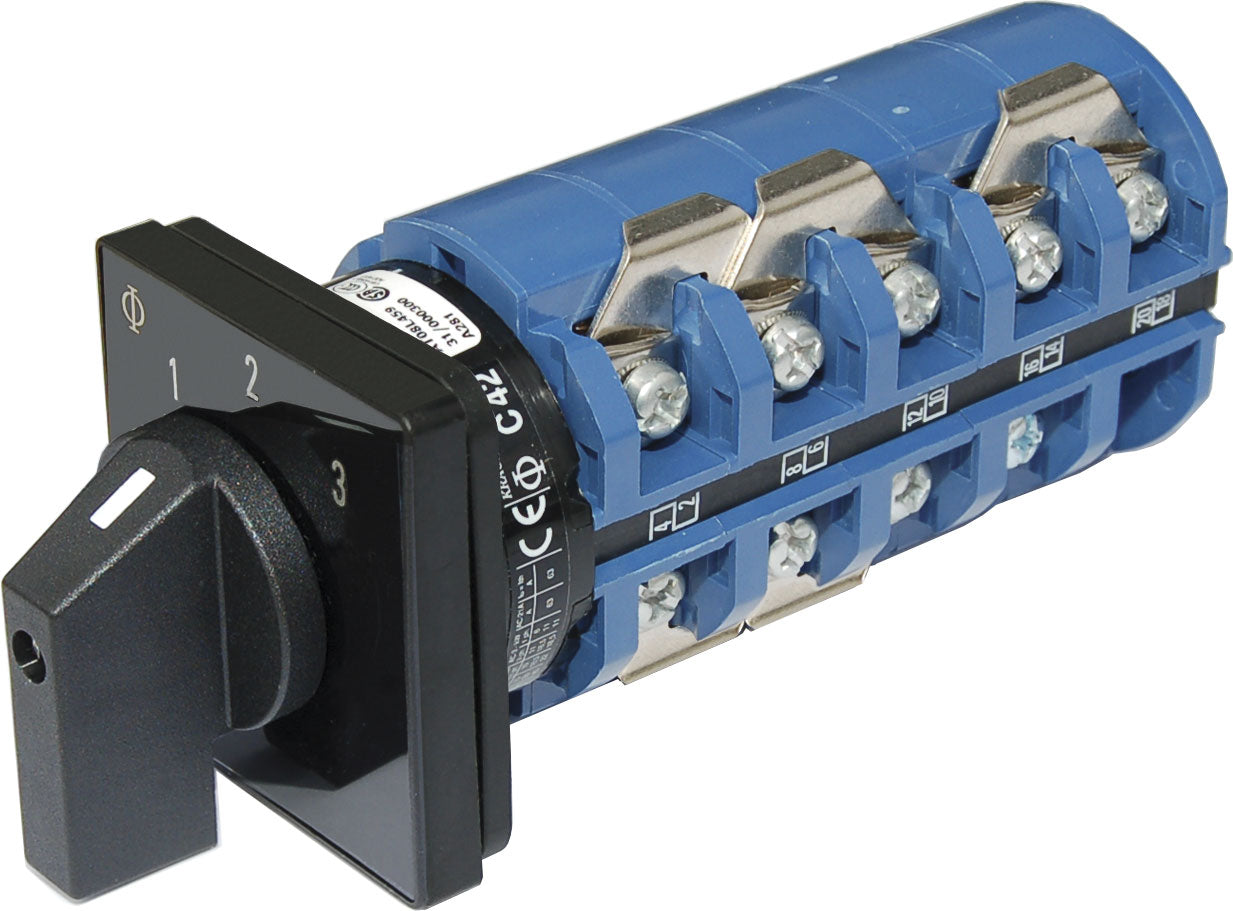

OFF + 3 Positions: 9077-BSS

These Blue Sea Systems AC Rotary Switches are heavy-duty, industrial-rated switches designed to select between multiple 120/240 Volt AC power sources, providing a compact solution where circuit protection is handled separately. Ideal for panel mounting up to 0.16" (4.00 mm) thick, they offer intuitive one-hand operation and are UL listed for safety and reliability.

Key Features

Switches between two or three AC sources with an OFF position
Designed for 120/240V AC power systems
Heavy-duty industrial rating for reliable operation
Compact size for panel mounting in 0.16" thick panels
Intuitive function with one-hand operation
UL listed for safety compliance

Specifications Comparison

Feature	9019-BSS (OFF + 2 Positions)	9077-BSS (OFF + 3 Positions)
Positions	2 + OFF	3 + OFF
Source Selection	2	3
Nominal Voltage	240 V AC	240 V AC
Poles	3	3
Load Circuits Out	1	1
Maximum Amperage	65 A	65 A
Maximum Voltage	600 V AC	600 V AC
Source Inputs	2	3
Dimensions (HxWxD)	2.52" x 2.52" x 3.5"	2.52" x 2.52" x 5.5"
UL Listed	Yes	Yes

Typical Use

Ideal for switching between multiple high-voltage AC power sources such as shore power, generator, and inverter systems in marine, RV, or industrial settings where safety and reliability are paramount.
