Vendor: Blue Sea Systems
Sku:
BSS7153

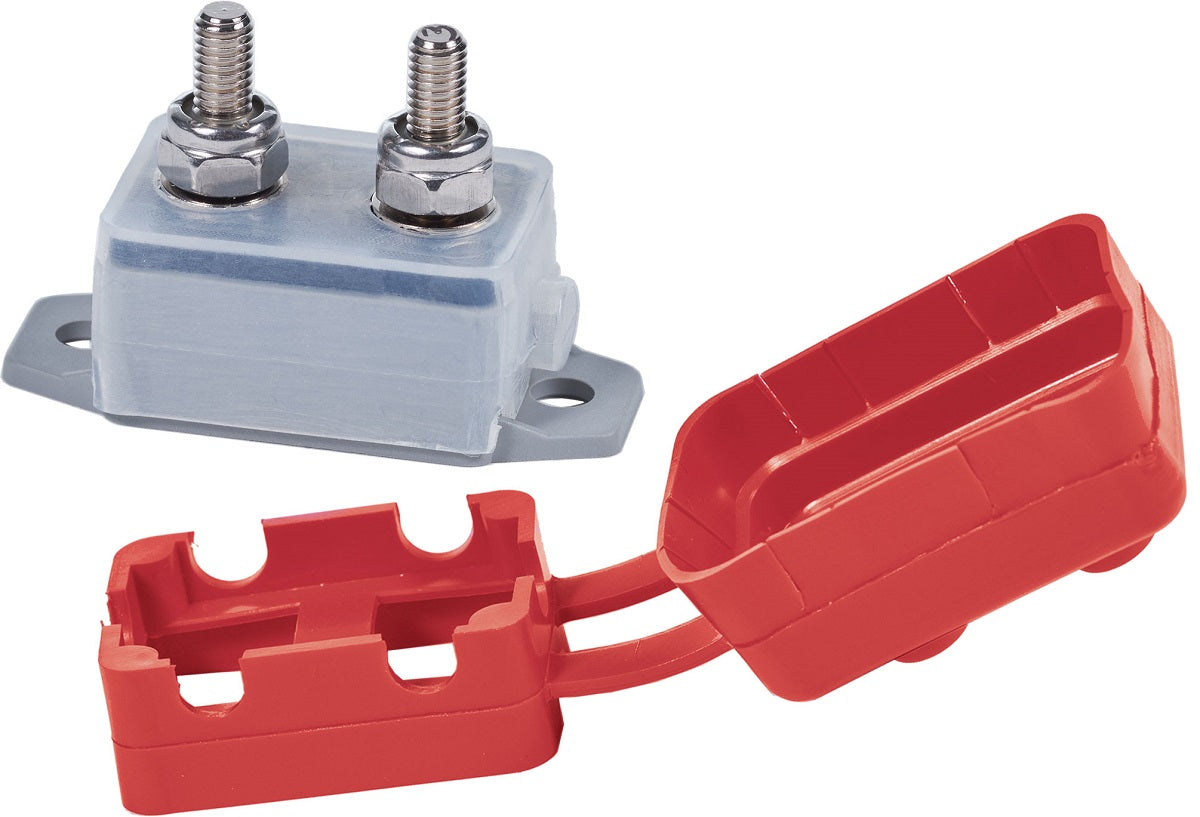

Blue Sea Short Stop 20 Amp Circuit Breaker Marine Grade
Regular price
$13.99
Regular price
Sale price
$13.99
Unit price
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Description
Description
Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 20A
Model: 7153-BSS
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts for secure connections
- Red insulating boot included (retail product only)
Specifications
| Amperage | 20A DC |
| Maximum Voltage | 28vDC |
| Circuit Breaker Type | Thermal trip, manual reset |
| Terminal Stud | #10-32 |
| Terminal Stud Torque | 20 in-lb (2.26 Nm) |
| Interrupt Capacity | 2500A @ 28V DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
What's in the Box:
- 20A Short Stop Circuit Breaker
- Short Stop Circuit Breaker Boot
