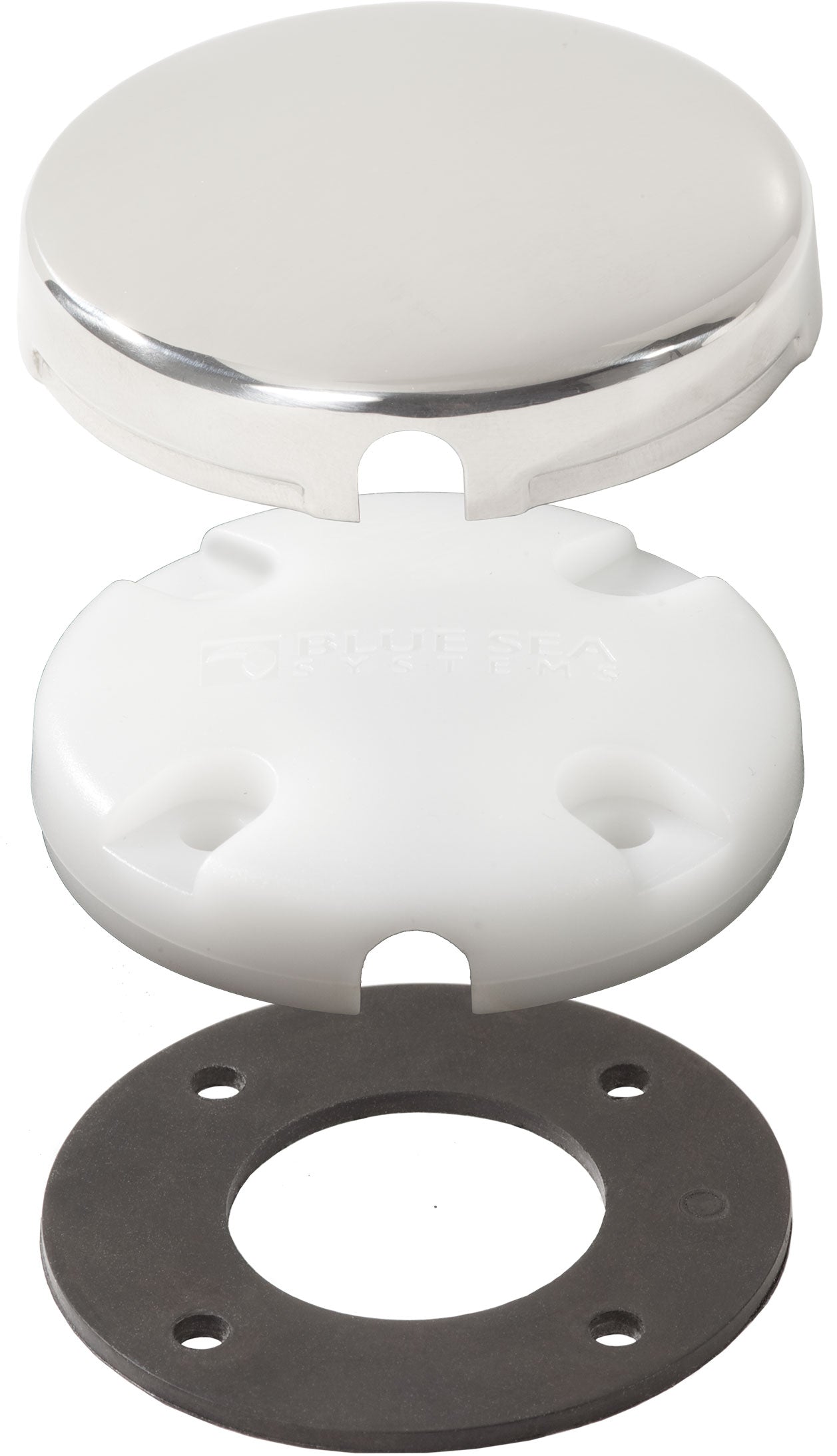

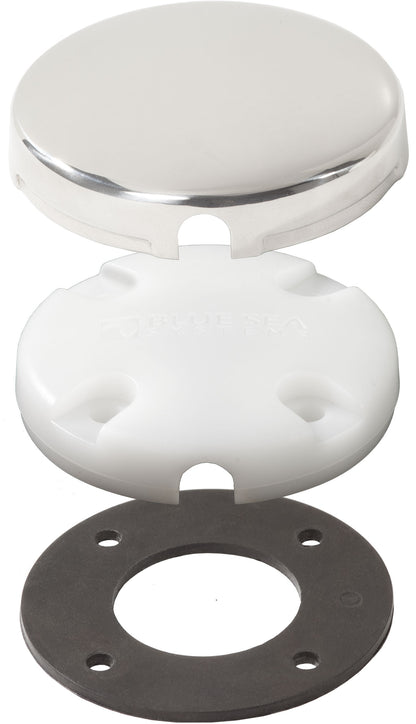

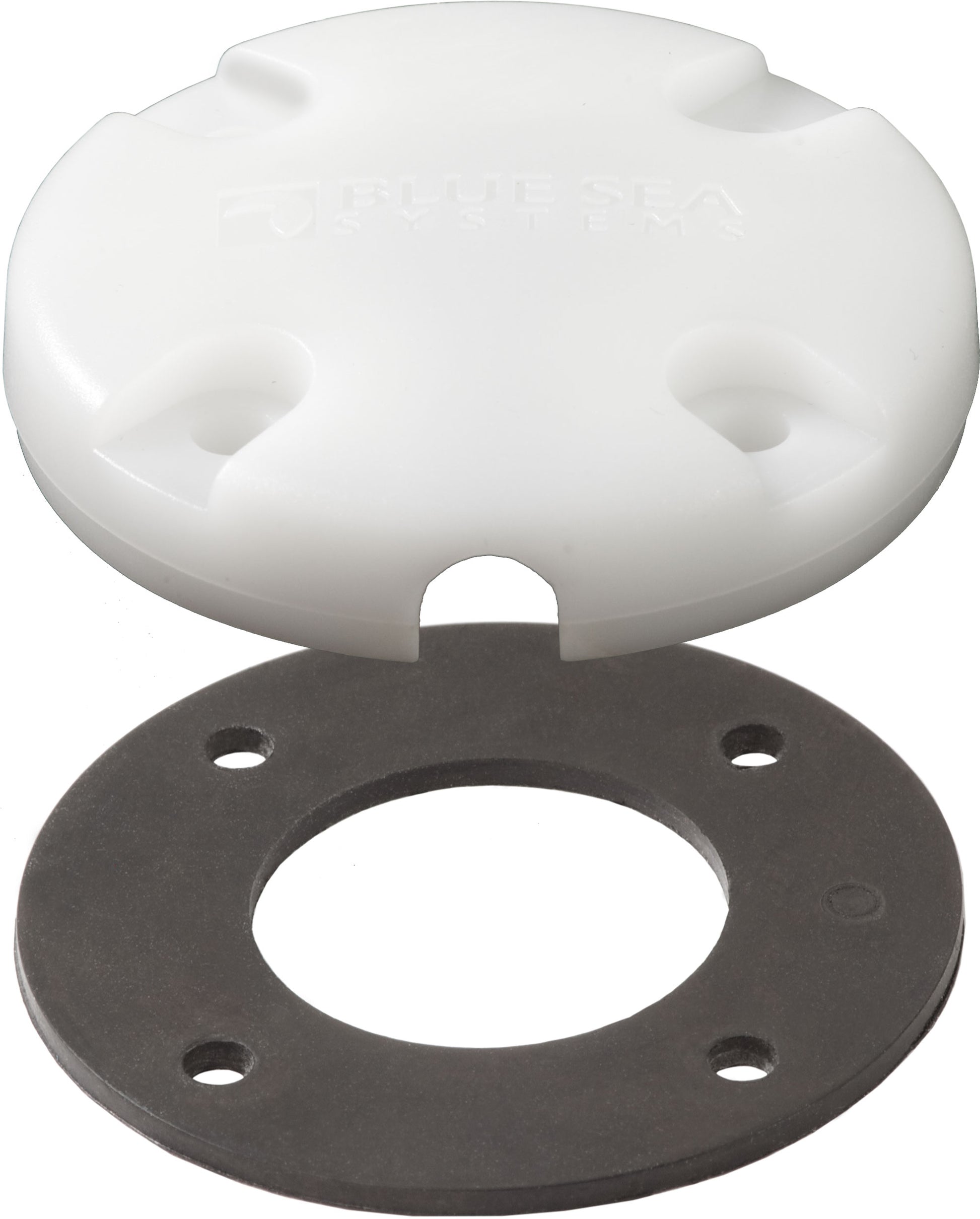

Side Entry CableClam with Stainless Steel Dress Cap: 1007-100BSS
Overview
Blue Sea Systems Side Entry Cable Clams offer simple, waterproof side entry solutions for antenna cables above the waterline, enabling installation without removing the factory-installed connector. Engineered for low-profile side mount installations, these clams reduce the risk of tangling lines with a contoured edge. The stainless steel dress cap variant adds an attractive, corrosion-resistant cover that matches other deck hardware while providing UV protection. Both models include all fasteners necessary for installation.
Key Features
Simple one-piece design for easy side mount installations
Low-profile, contoured edge to reduce tangling of lines
Waterproof side entry solution without requiring connector removal
Suitable for use above the waterline only
Includes all fasteners for installation
Stainless steel dress cap (model 1007-100BSS) conceals mounting hardware and matches deck hardware
Ring made from UV-stabilized thermoplastic
Seal made from UV-stabilized Buna-N rubber
Specifications
Feature
1007-BSS
1007-100BSS
Max Cable Diameter
0.28 in (7.11 mm)
0.28 in (7.11 mm)
Max Connector Diameter
1.00 in (25.4 mm)
1.00 in (25.4 mm)
Dress Cap Material
N/A
316 Stainless Steel
Ring Material
UV-Stabilized Thermoplastic
UV-Stabilized Thermoplastic
Seal Material
UV-Stabilized Buna-N Rubber
UV-Stabilized Buna-N Rubber
Weight
0.34 lb (0.15 kg)
0.45 lb (0.20 kg)
What’s in the Box
Side Entry Cable Clam
Stainless steel dress cap (model 1007-100BSS only)
