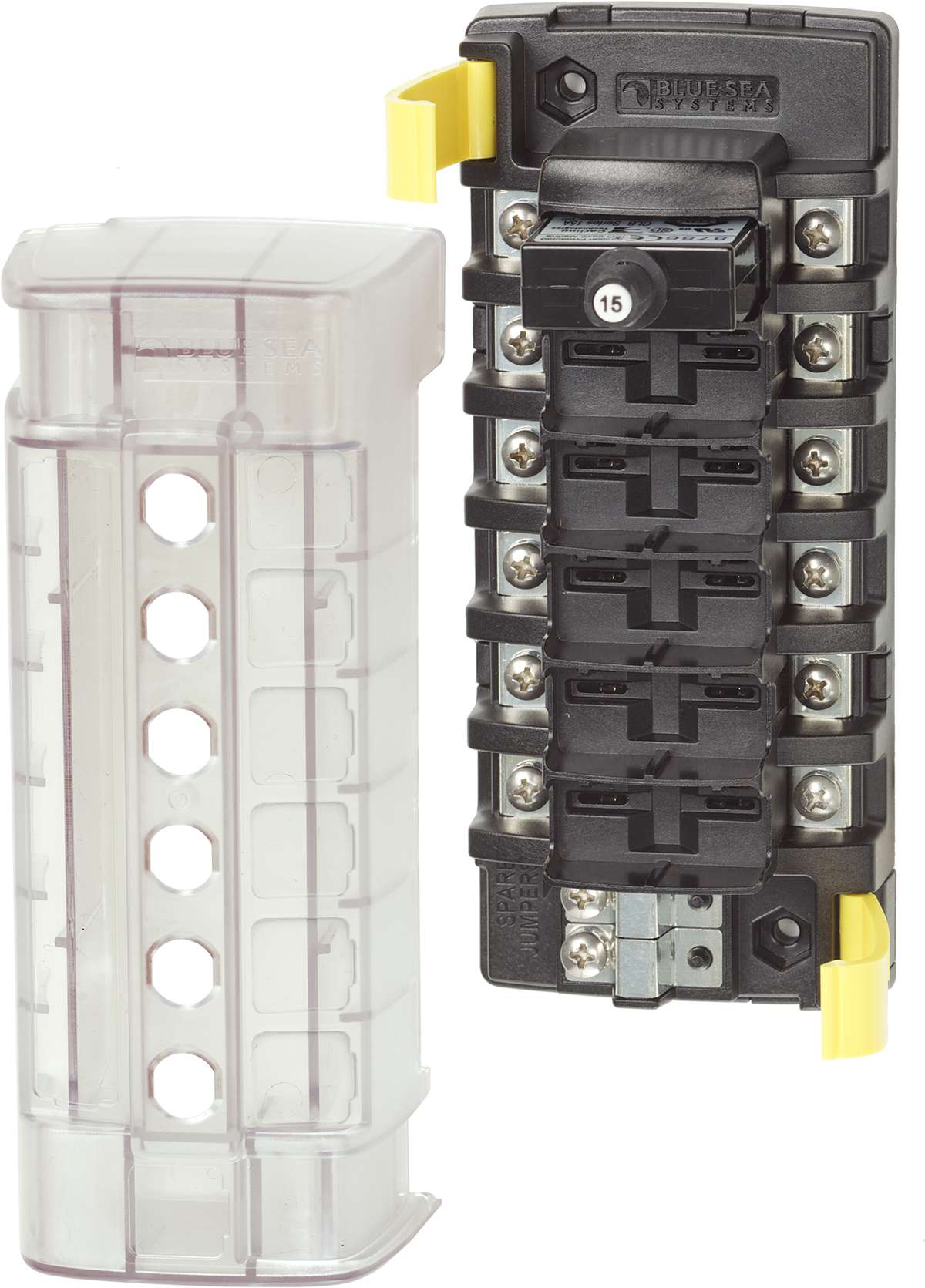

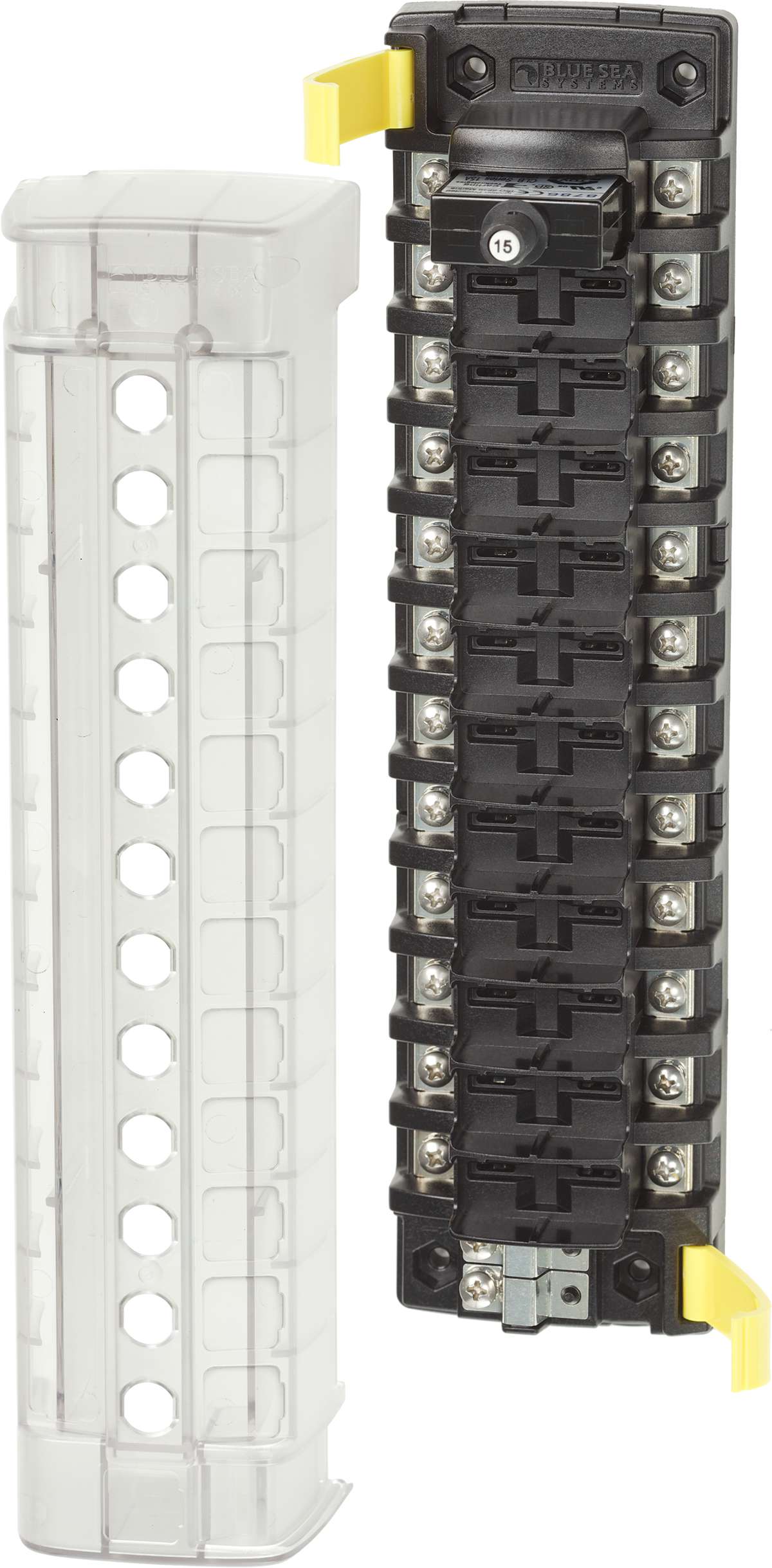

Blue Sea ST CLB Circuit Breaker Block -Independant Circuits.

Blue Sea Systems ST CLB Circuit Breaker Blocks

Models:

• 6 Independent Circuits: 5050-BSS

• 12 Independent Circuits: 5051-BSS

Overview

Blue Sea Systems ST CLB Circuit Breaker Blocks provide flexible, resettable circuit protection for multiple independent circuits in a compact, surface-mount block. Designed to make breakers as easy to install as fuses, these blocks use the snap-in-place compact CLB resettable circuit breakers. With tin-plated copper busses, screw terminals, and clear insulating covers with label recesses, they meet ABYC/USCG insulation standards. These blocks allow easy wire access, accept ring terminals, and can be equipped with push button waterproof boots or dress nuts for extra protection. The ST CLB block is an ideal companion to waterproof switch panels like the WD Switch Only Panel for marine environments.

Key Features

• Quick connect clips for easy snap-in installation of circuit breakers

• Tin-plated copper busses and screw terminals for reliable conductivity

• Clear insulating cover with label recesses meeting ABYC/USCG requirements

• Easy open clip-on cover with breakouts for two-direction wire access

• Accepts ring terminals and square labels for circuit identification

• Optional push button waterproof boots or dress nuts compatible

• Surface mount design intended for dry, protected locations

• Compatible with waterproof switching panels for integrated protection

• Offers resettable circuit protection for up to 6 or 12 independent circuits

Specifications Comparison

What’s in the Box

• ST CLB Circuit Breaker Block (6 or 12-circuit model)

• Clear insulating cover with label recesses

• Mounting hardware (implied for mounting centers)
