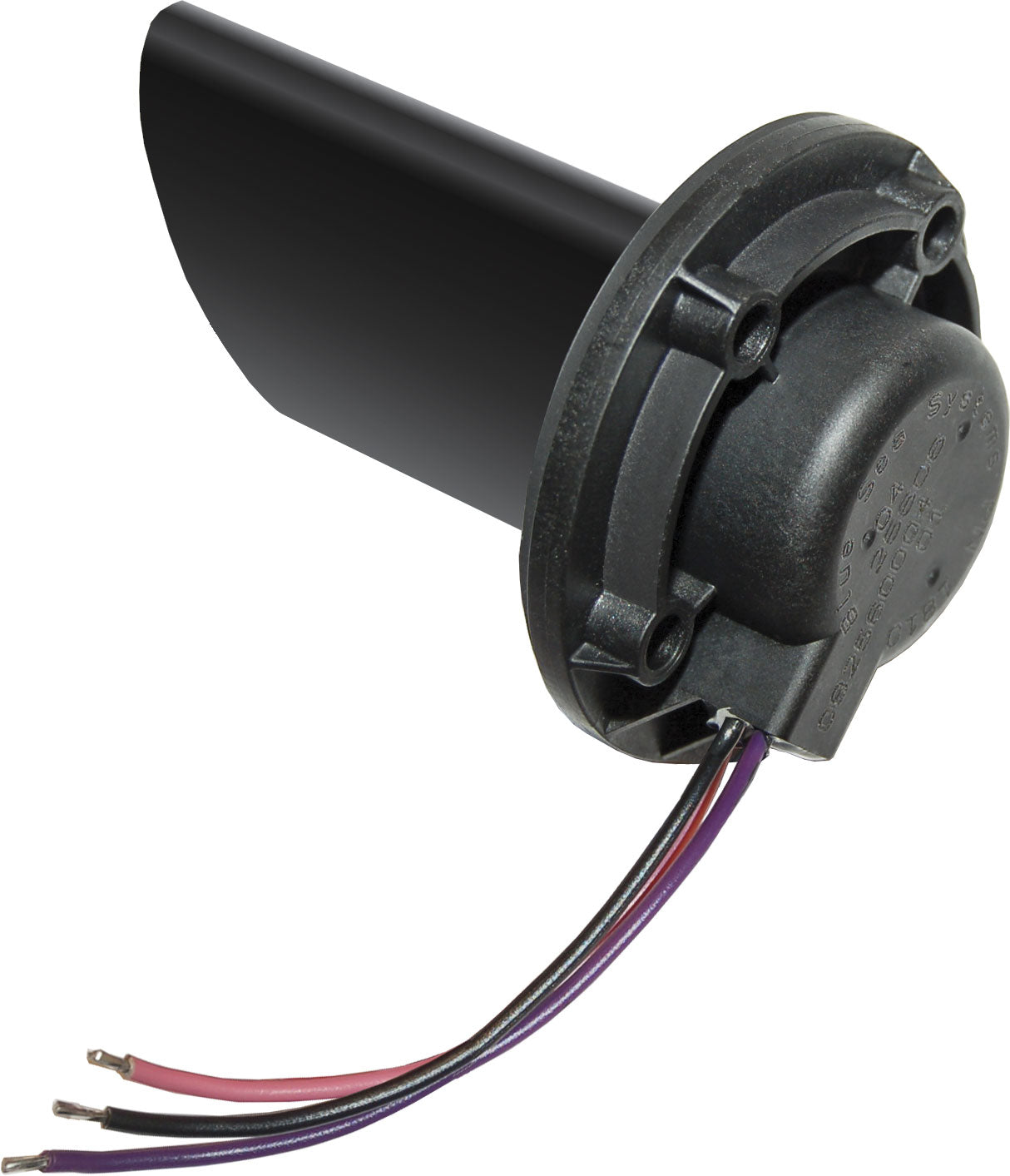

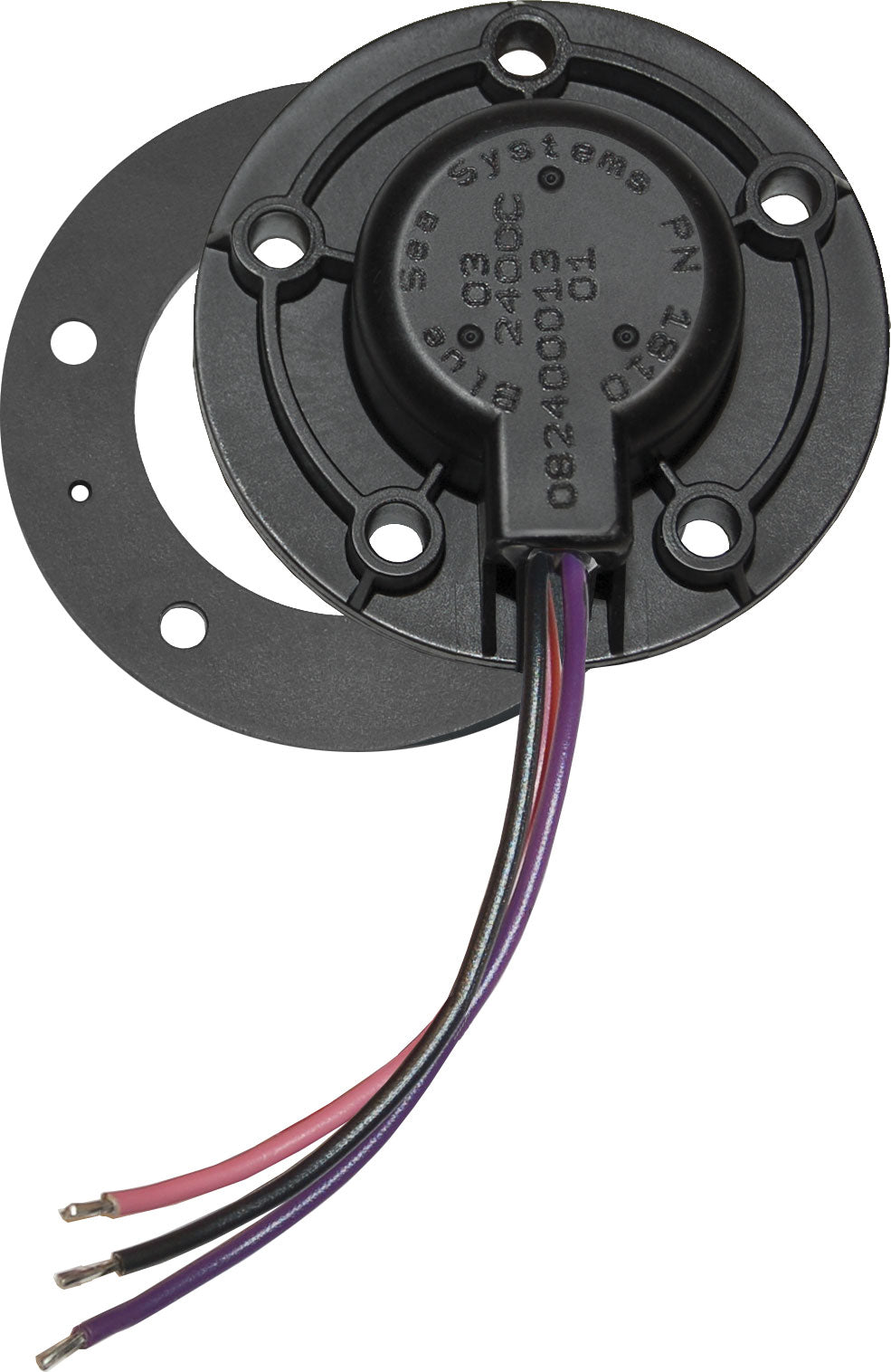

Blue Sea Tank Senders.

Blue Sea Vessel Systems Monitor Tank Senders

Models:

• Diesel, Water, Waste Tank Sender: 1810-BSS

• Gasoline Only Tank Sender: 1811-BSS

These ultrasonic tank senders accurately measure fluid levels for the Blue Sea Vessel Systems Monitor VSM 422 PN 1800 and compatible M2 Meters. They use Fluid-Trac® technology from SSI Technologies, providing reliable, non-contact measurement without moving parts, which eliminates wear and signal loss issues. The senders incorporate digital filtering to reduce errors from liquid sloshing in mobile tanks.

Key Features

• Precise calibration for individual tank types

• Non-contacting Fluid-Trac® technology for high reliability and durability

• Digital filtering to minimize measurement errors caused by liquid movement

• Compatible only with Blue Sea VSM 422 and M2 Meters, not functional with other monitors

Mounting Considerations

• Must be installed at least 4 inches away from tank sides or baffles

• Tank floor must be level, not sloped

• Tank depth should not exceed 32 inches

• Sender must be mounted perpendicular to the liquid surface for accurate readings

• Negative connection should run directly to the main negative bus

Specifications

Blue Sea Vessel Systems Monitor Tank Senders offer accurate, durable, and dependable ultrasonic fluid level monitoring specifically calibrated for marine applications with Blue Sea’s Vessel Systems Monitoring equipment.
