Blue Sea Water-Resistant 12V Circuit Breaker Switch Panels - Gray.

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panels - Gray

Models:

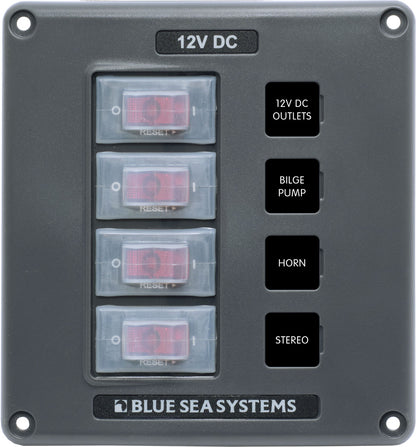

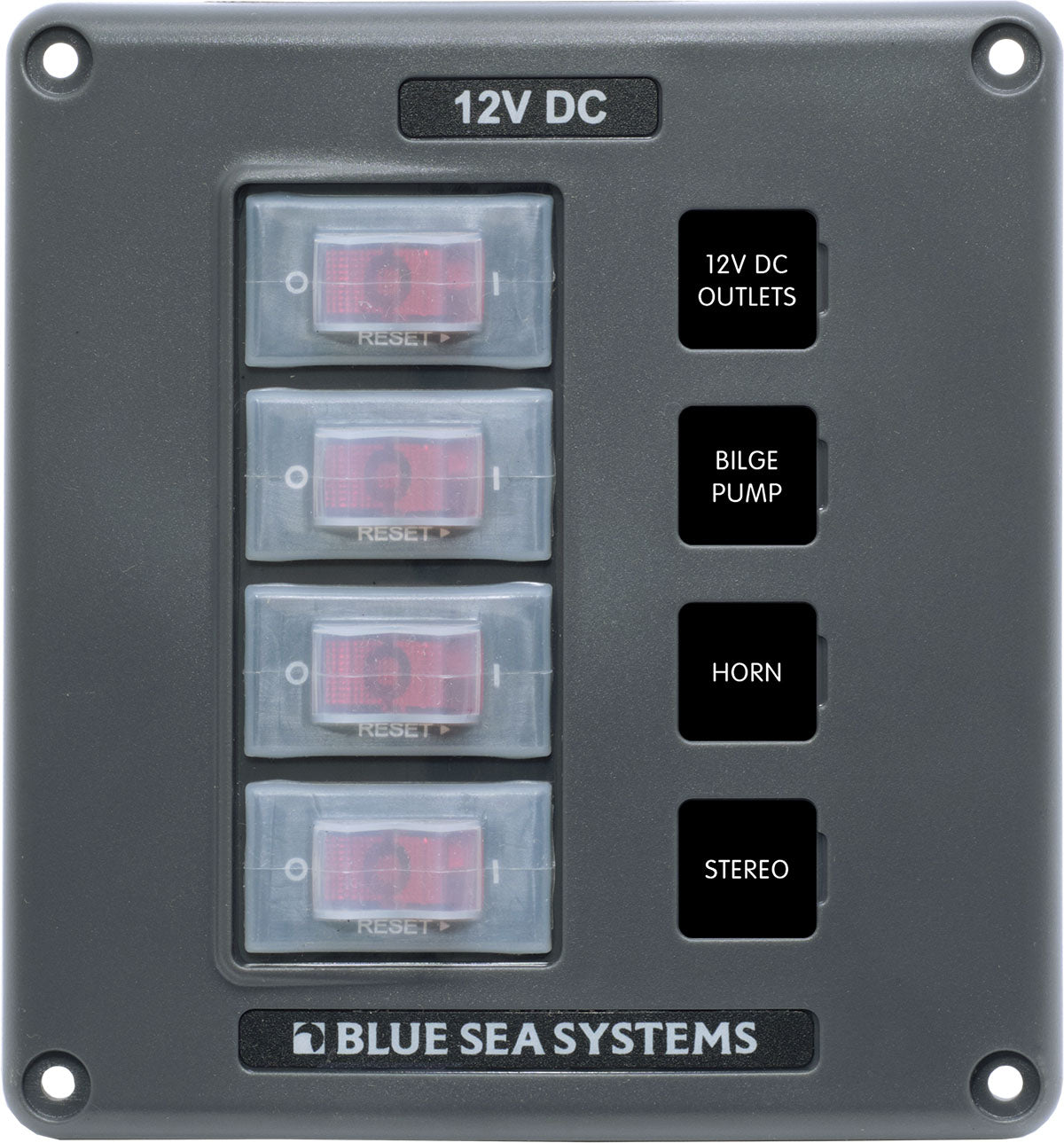

• 4320-BSS: 4 Positions

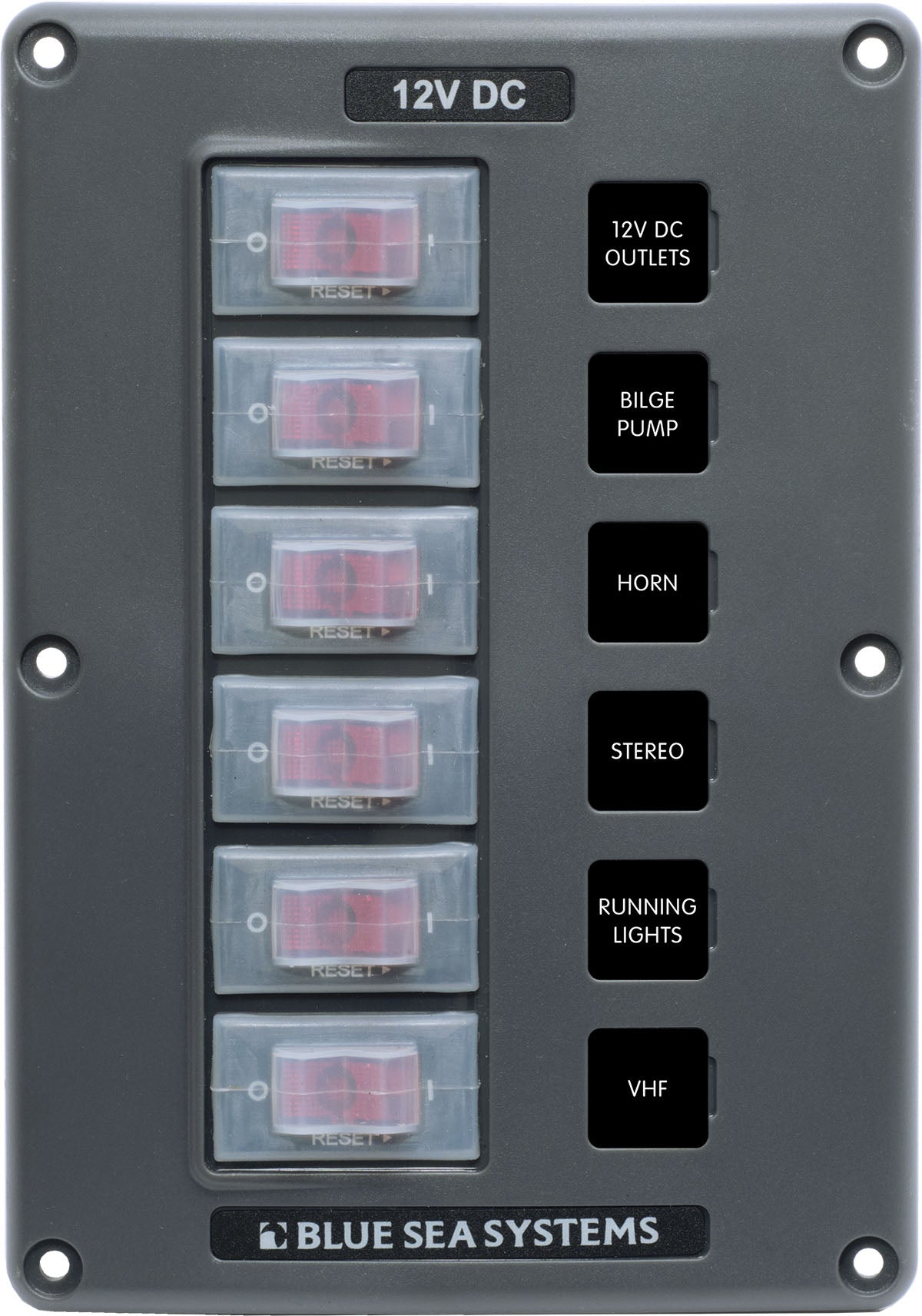

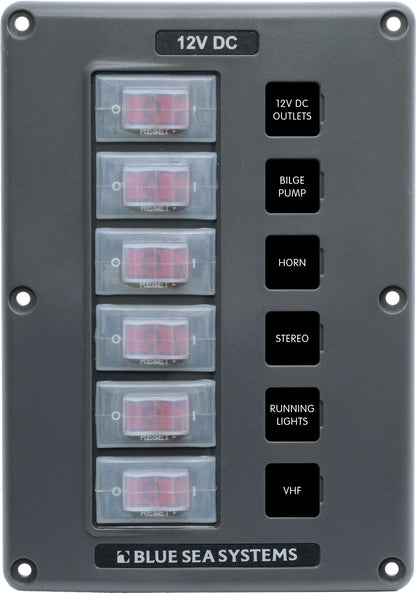

• 4322-BSS: 6 Positions

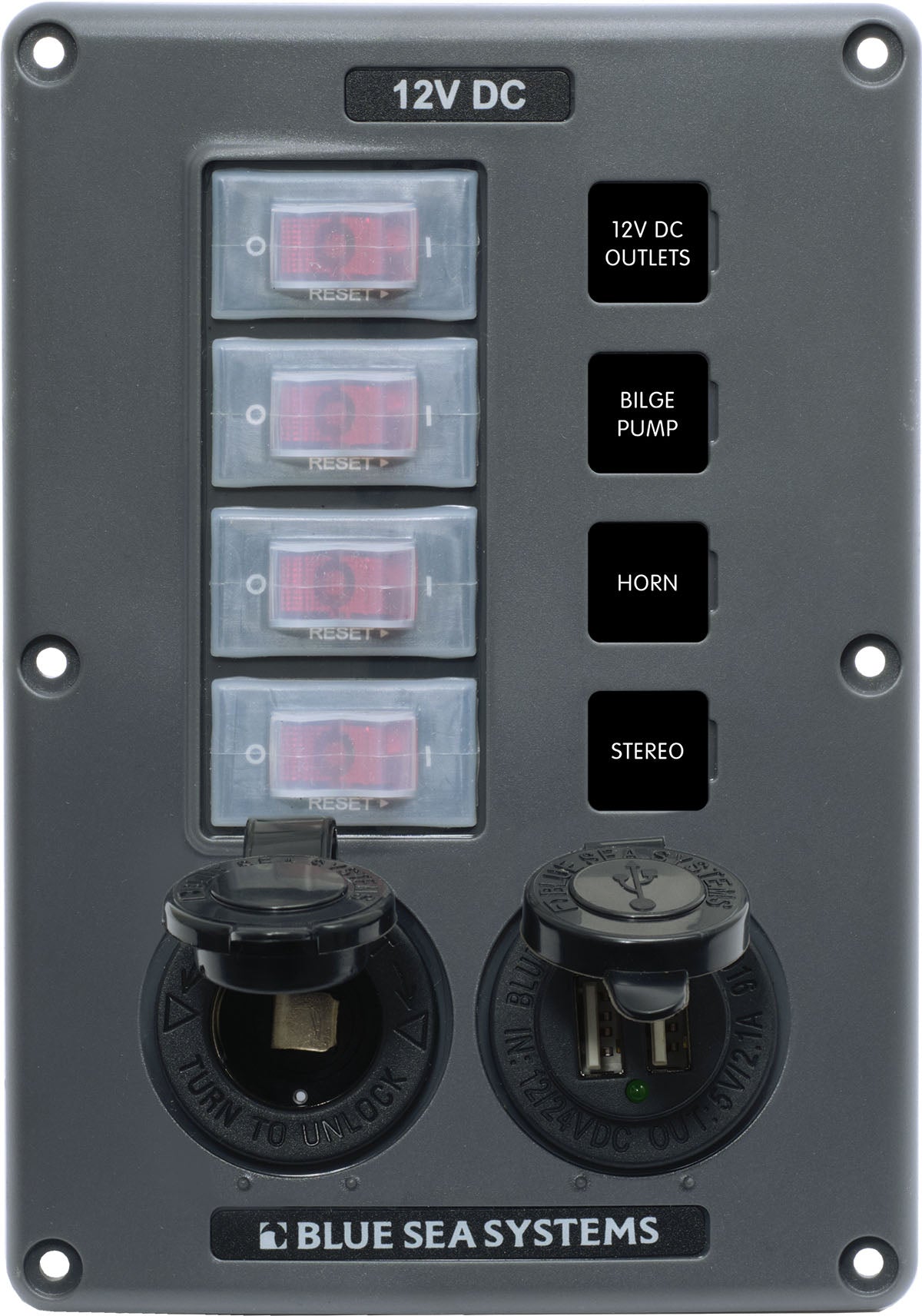

• 4321-BSS: 4 Positions + 12V Socket and Dual USB Charger

Overview

These panels feature illuminated 15A circuit breakers providing switching, "ON" indication, and overcurrent protection. Industry-standard sizes and mounting allow easy retrofit in existing applications. The panel face is made from UV-stabilized, flame-retardant polycarbonate/ABS, ensuring corrosion resistance. Silicon breaker boots and gaskets protect against water ingress. Low-profile design enables installation in tight spaces, and fast-on circuit breaker connectors simplify wiring. A two-wire power connection uses #10 ring terminals screwed to bus bars for secure connections. Each panel includes a set of 15 square format circuit labels, easily replaceable, with additional labels available from Blue Sea Systems.

Key Features

• Illuminated 15A circuit breakers with "ON" indication and protection

• Compatible with industry-standard sizes, easy retrofit

• UV-stabilized, flame-retardant, corrosion-resistant panel face

• Silicon breaker boots and gasket protect from water ingress

• Low-profile design for tight spaces

• Fast-on circuit breaker connectors for quick wiring

• Two-wire power connection with #10 ring terminals

• Includes 15 replaceable square format circuit labels

Specifications Comparison

What’s in the Box

• Water-resistant circuit breaker switch panel (model-specific configuration)

• Mounting hardware

• Set of 15 square format circuit labels
