Blue Sea Weather Deck Panel 12v DC Fuse Panel - Gray.

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panels - Gray

Models:

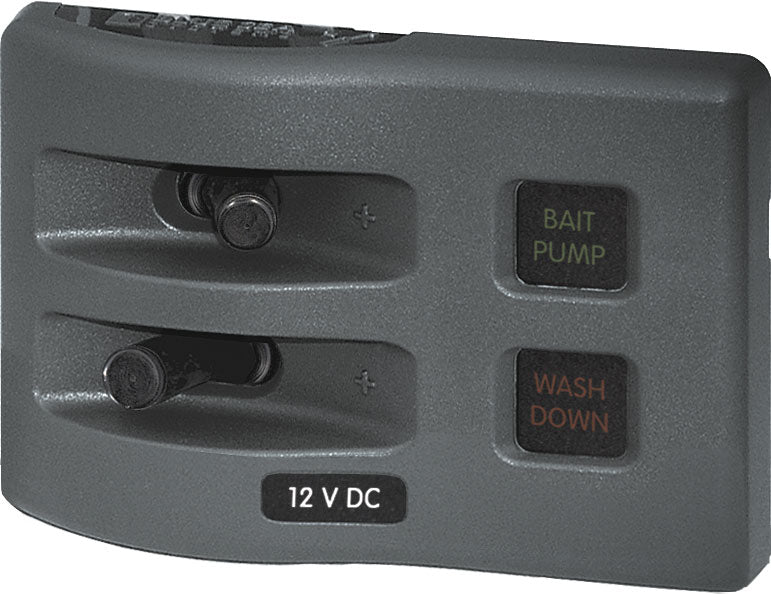

• 2 Positions: 4302-BSS

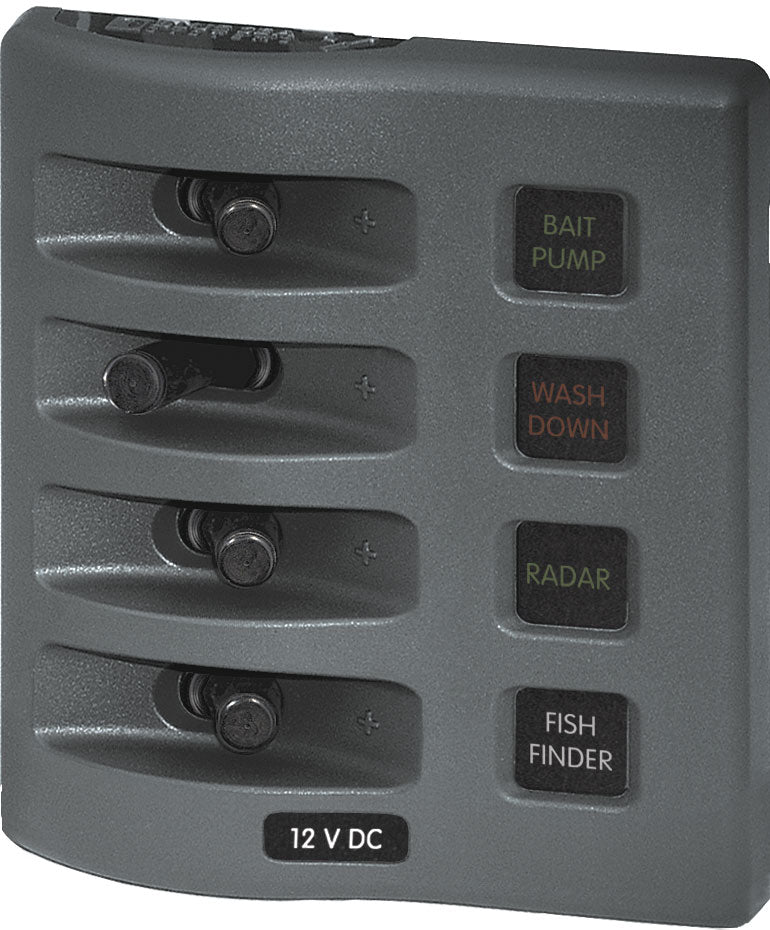

• 4 Positions: 4304-BSS

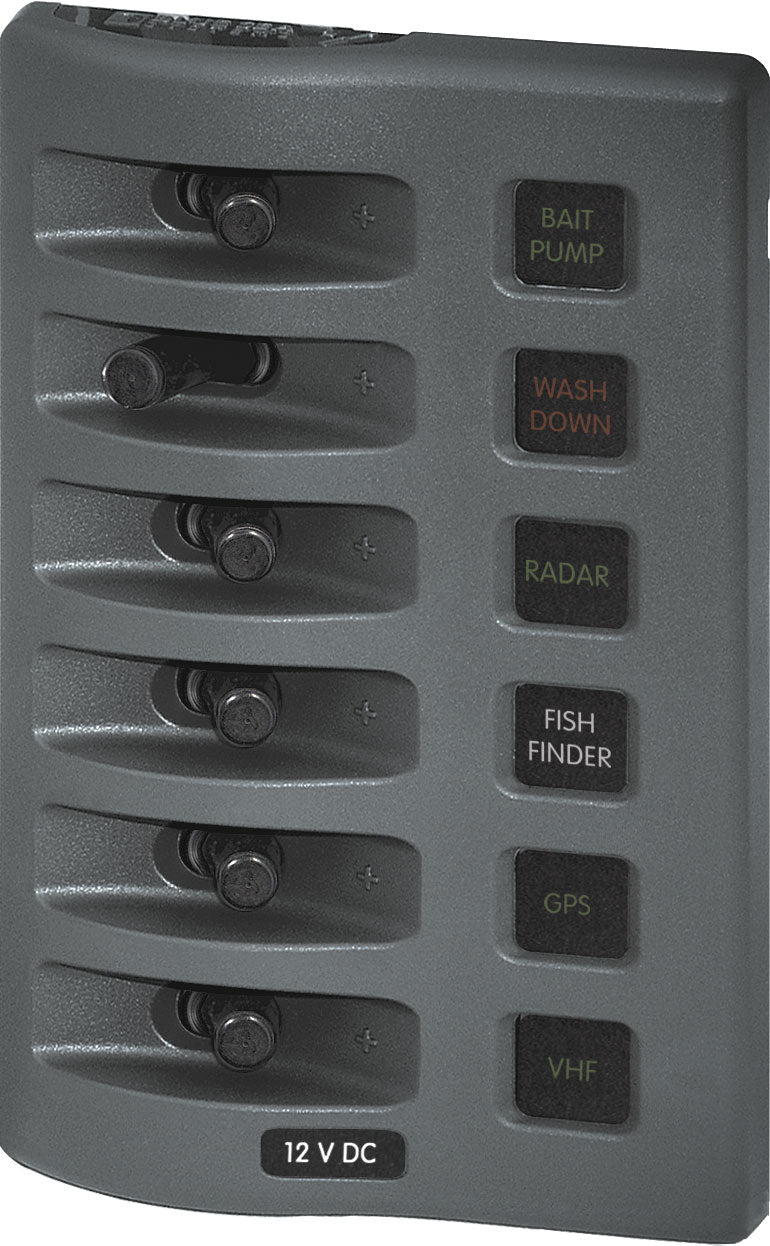

• 6 Positions: 4306-BSS

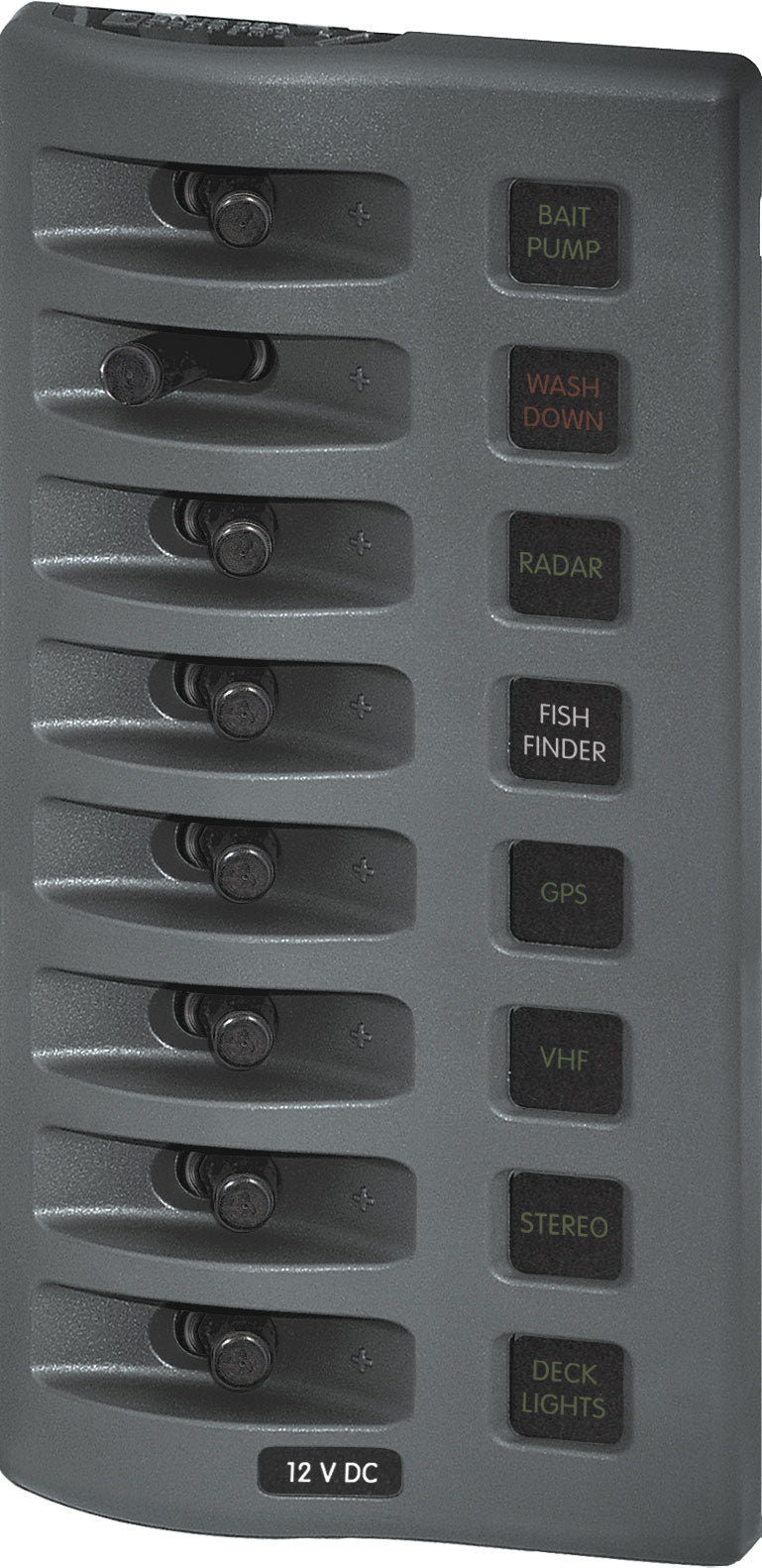

• 8 Positions: 4308-BSS

Blue Sea Systems Weather Deck Fuse Panels are engineered for flybridge and open cockpit applications, offering durable, waterproof fuse-based circuit protection. Panel fronts are rated IP67 when mounted with the watertight gasket, providing protection against immersion up to 1 meter for 30 minutes. These panels feature integrated ATO/ATC fuse circuit protection and bi-colored LED labels that illuminate to display circuit status: red for OFF, green for ON, and unlit for blown circuits or no power. Each panel supports remote switching and dimming via independent label backlighting circuits.

Key Features

• Weatherproof and waterproof design rated IP67 (1 meter immersion, 30 minutes)

• Suitable for flybridge and open cockpit locations

• Independent label backlighting allowing remote switching and dimming

• Integrated ATO/ATC fuse circuit protection

• Bi-colored LED labels indicate circuit status (OFF: Red, ON: Green, Blown: No Color)

• Panels mountable in four orientations for installation flexibility

• Reinforced polycarbonate construction for durability

Specifications Comparison

Typical Use

Designed to provide reliable, visible fuse circuit protection in high moisture marine environments, ensuring circuit status is easily identifiable with illuminated labels.
