Cannon Electric Downriggers.

$598.95

~~$549.99~~ $598.95

Sold out

Shipping calculated at checkout.

Low stock: 7 left

Model: Magnum Magnum Optimum

Type: 5 Electric 5 Electric 10 Electric 10 TS Electric Electric TS Electric

Description

Cannon Electric Downriggers

Models

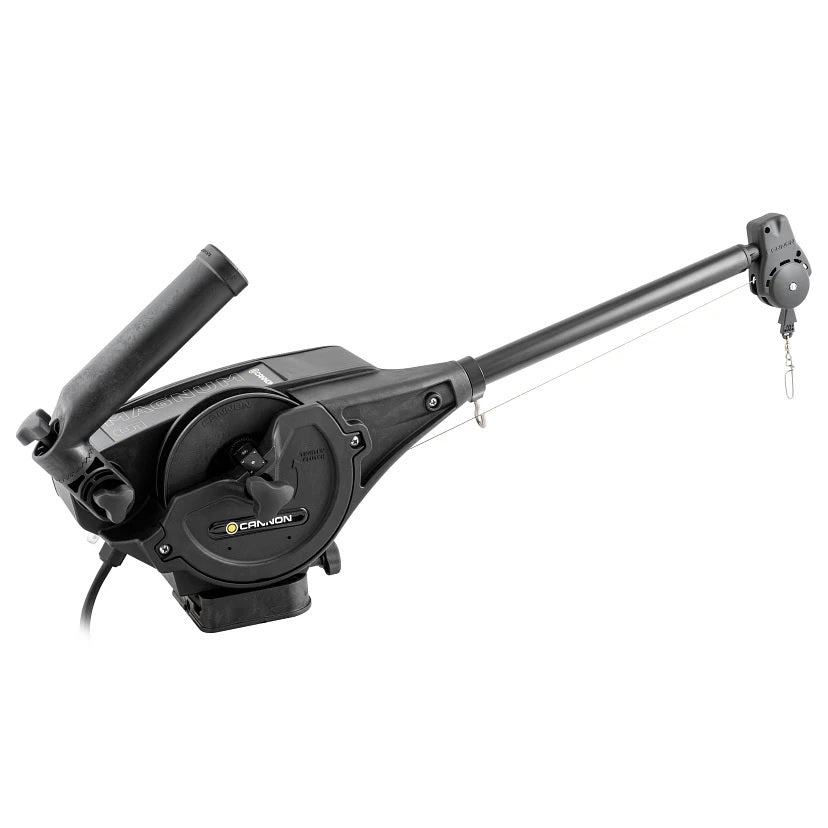

1902300 – Magnum 5 Electric Downrigger

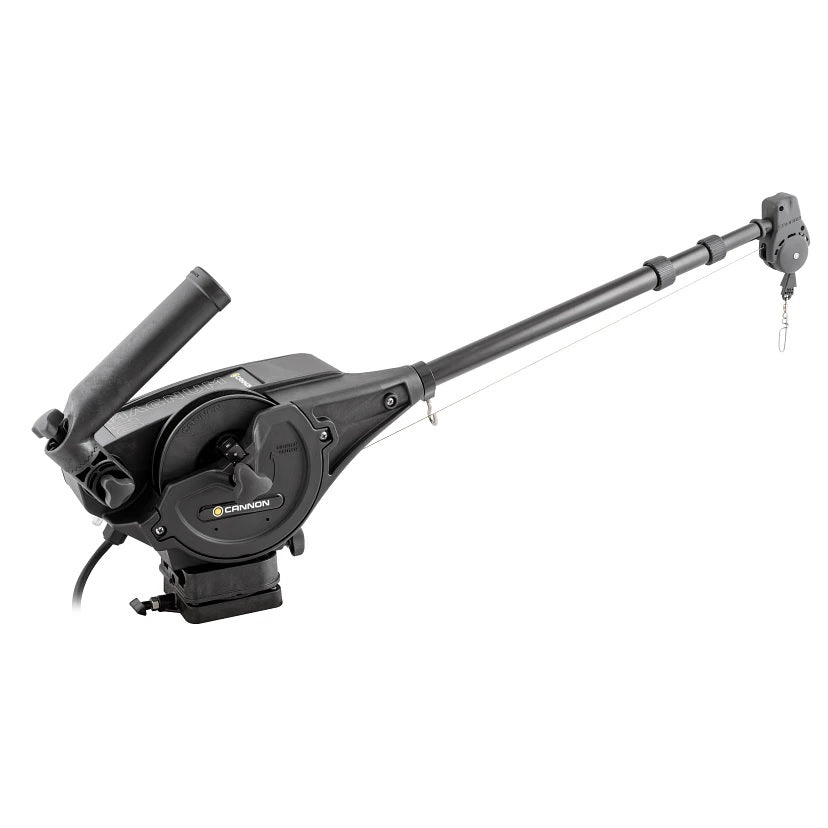

1902305 – Magnum 10 Electric Downrigger

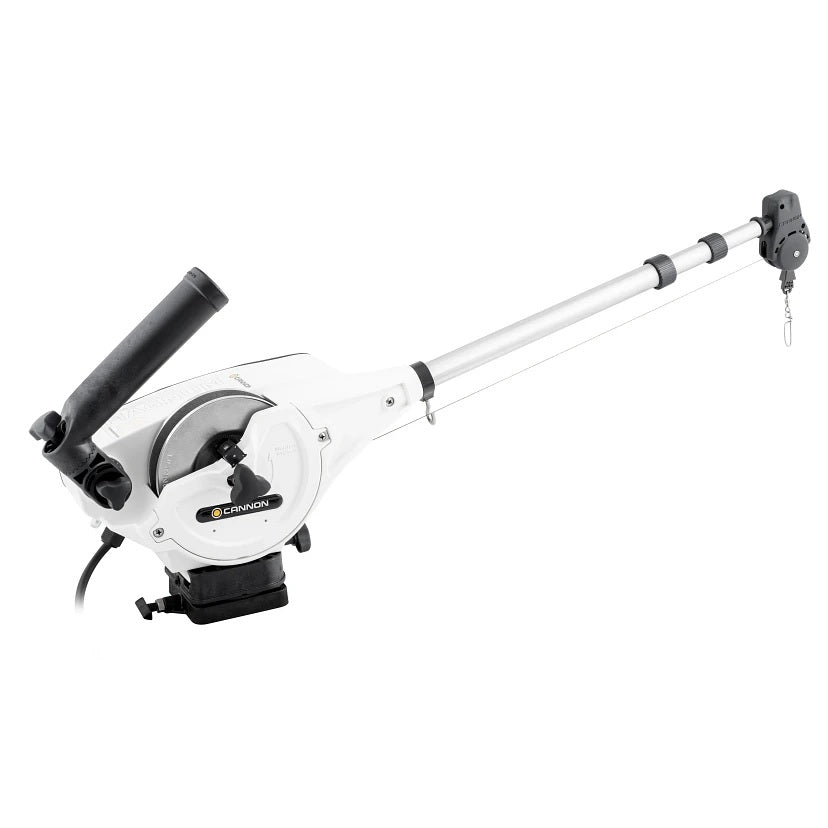

1902310 – Magnum 10 TS Electric Downrigger

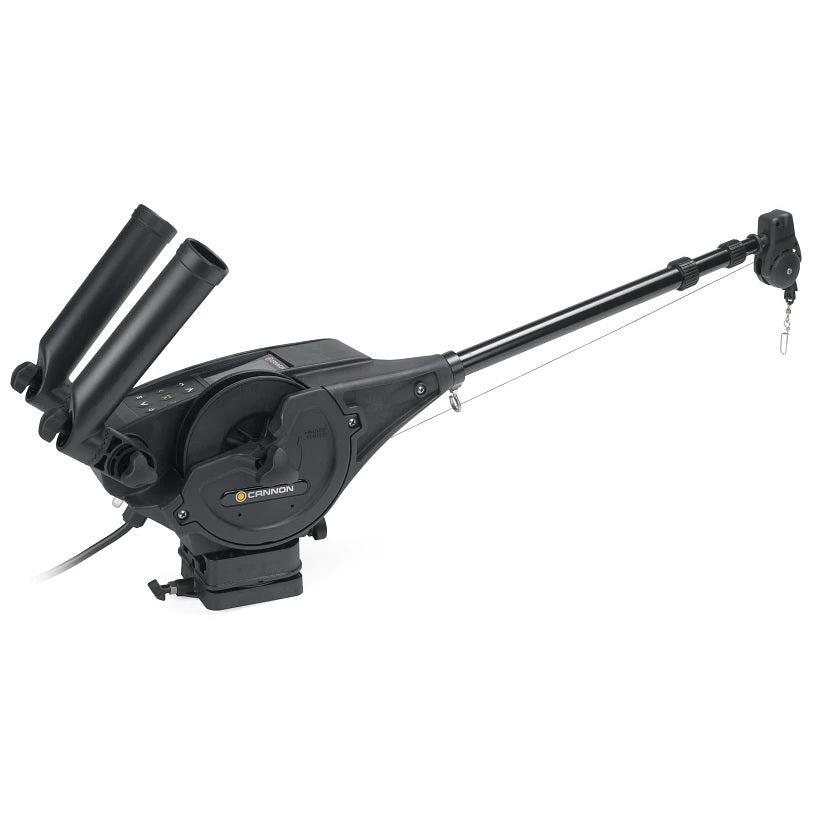

1902335 – Optimum Electric Downrigger

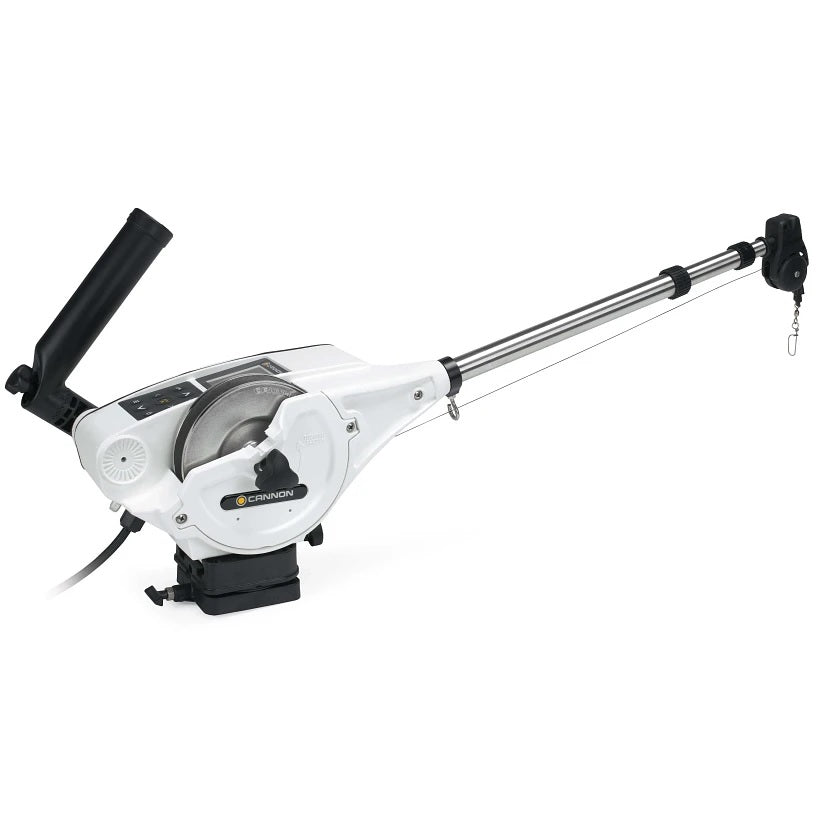

1902340 – Optimum TS Electric Downrigger

Product Description

Cannon Magnum and Optimum electric downriggers combine fast 250 ft/min retrieval, Auto Up, Short-Stop waterline protection, and Positive Ion Control for precise depth trolling with 20 lb weights. Magnum 5 and 10 models focus on rugged, reliable one-switch operation with analog depth counters, while Tournament Series (TS) versions upgrade to stainless spools and 316-grade booms for heavy saltwater use. Optimum models add a full-color LCD, wireless networking, One-Boat Network integration, depth cycling, bottom tracking, and advanced automation with up to 400 ft of cable for data-driven controlled-depth fishing.

Key Features

Electric operation with Auto Up and Short-Stop to the waterline
250 ft/min retrieval, 20 lb weight capacity, 12 V input, Limited Lifetime Warranty
Positive Ion Control on all models; analog counters on Magnum, digital LCD on Optimum
Stainless booms: fixed 24" (Magnum 5) or telescopic 24–53" (Magnum 10 / Optimum series)
TS models: 316-grade telescopic boom, stainless spool, all-white saltwater-ready construction
Optimum/Optimum TS: wireless connectivity, One-Boat Network, mobile app control, depth cycling, bottom tracking, Waterline Zero, preset depths

Comparison Table

Feature	1902300 Magnum 5	1902305 Magnum 10	1902310 Magnum 10 TS	1902335 Optimum	1902340 Optimum TS
Operation Type	Electric	Electric	Electric	Electric	Electric
Boom Length	24"	24–53" telescopic	24–53" 316 telescopic	24–53" telescopic	24–53" 316 telescopic
Boom Material	Stainless	Stainless	Stainless (316)	Stainless	Stainless (316)
Spool Material	Composite	Composite	Stainless	Composite	Stainless
Cable on Spool	250' / 150 lb SS	250' / 150 lb SS	250' / 150 lb SS	400' / 150 lb SS	400' / 150 lb SS
Retrieval Speed	250 ft/min	250 ft/min	250 ft/min	Up to 250 ft/min (5 speeds)	Up to 250 ft/min (5 speeds)
Mounting Base	Universal	Universal + swivel base	Swivel base	Universal + swivel base	Universal + swivel base
Rod Holders	1 dual-axis	1 dual-axis	1 dual-axis	2 dual-axis	1 dual-axis
Weight Capacity	20 lb	20 lb	20 lb	20 lb	20 lb
Depth Counter	Analog (3-digit)	Analog (3-digit)	Analog (3-digit)	Digital on 3.5" color LCD	Digital on 3.5" color LCD
Control Method	Switch	Switch	Switch	Keypad	Keypad
Positive Ion Control (PIC)	Yes	Yes	Yes	Yes	Yes
One-Boat Network Ready	No	No	No	Yes	Yes
Wireless / App	No	No	No	Yes (network + app)	Yes (network + app)
Depth Cycling / Presets	No	No	No	Yes (depth cycle + presets)	Yes (depth cycle + presets)
Bottom Tracking	No	No	No	Yes	Yes
Waterline Zero	No	No	No	Yes	Yes
Short-Stop	Yes	Yes	Yes	Yes	Yes
Soft Stop	No	No	No	Yes	Yes
Auto Up	Yes	Yes	Yes	Yes	Yes
Enclosed Boom End	Yes	Yes	Yes	Yes	Yes
Weight Storage Hook	Yes	Yes	Yes	Yes	Yes
Warranty	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime
Input Voltage	12 V	12 V	12 V	12 V	12 V

What’s in the Box

Magnum 5: Downrigger, universal mounting base, line terminator, one Uni-line release, manual crank handle
Magnum 10: Downrigger, universal mounting base, low-profile swivel base, line terminator, one Uni-line release, manual crank handle
Magnum 10 TS: Downrigger, universal mounting base, low-profile swivel base, line terminator, one saltwater line release, manual crank handle
Optimum: Downrigger, universal mounting base, low-profile swivel base, line terminator, two Uni-line releases, manual crank handle
Optimum TS: Downrigger, universal mounting base, low-profile swivel base, line terminator, two saltwater line releases, manual crank handle
