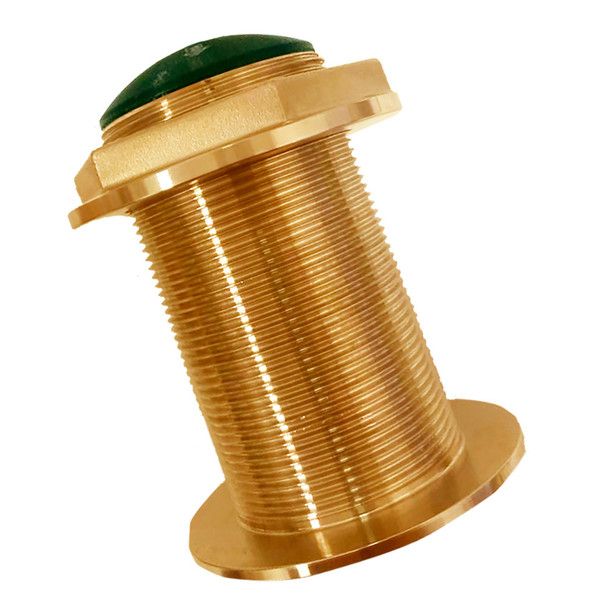

Echonautics BT70D600 600w 50/200kHz Tilted Element Bronze TH.

Echonautics BT70D600 Bronze Thru-Hull Transducers

Models

BT70D600-00 – 0° Tilt (0°-7° hull deadrise)
BT70D600-12 – 12° Tilt (8°-15° hull deadrise)
BT70D600-18 – 18° Tilt (16°-24° hull deadrise)

Product Description

Echonautics BT70D600 series bronze thru-hull transducers provide dual-frequency 50/200kHz depth and temperature sensing optimized for high-speed performance with minimal drag. Designed for target detail in shallow water and reliable deep-water bottom tracking, these 600W RMS transducers feature urethane acoustic windows, NTC temperature sensors, and 27ft cables. Streamlined bronze housings with hull-specific tilt angles ensure optimal performance across various deadrise angles.

Key Features

• Dual 50/200kHz frequencies for shallow detail and deep bottom tracking

• 600W RMS power handling

• Bronze construction for marine durability

• Beamwidth: 42°/11° (-3dB) at 50/200kHz

• Max depth: 1,200ft (50kHz) / 700ft (200kHz)

• NTC temperature sensor included

• Urethane acoustic window

• 27ft cable length, 2.38" hull hole diameter

• High-speed optimized low-drag design

Comparison Table

What's in the Box

• Echonautics BT70D600 bronze thru-hull transducer (tilt per model)

• 27ft cable
