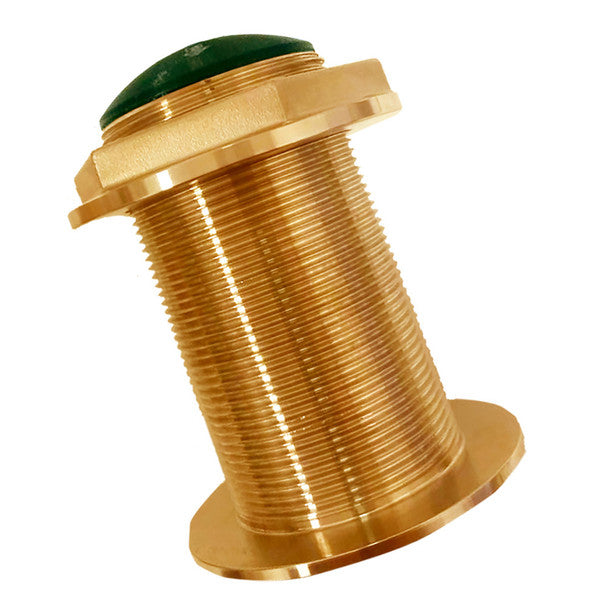

Echonautics BT70MA600 600w 80-130kHz Medium CHIRP Tilted Element Bronze TH.

Echonautics BT70MA600 Series Medium CHIRP Tilted Element Bronze TH.

Models:

BT70MA600-00 – 0° Tilt (0°-7° hull deadrise)
BT70MA600-12 – 12° Tilt (8°-15° hull deadrise)
BT70MA600-18 – 18° Tilt (16°-24° hull deadrise)

Product Description

Echonautics BT70MA600 series bronze thru-hull CHIRP transducers provide medium CHIRP 80-130kHz depth and temperature performance in a low-profile housing designed to minimize drag and maintain accuracy at high speeds. Matching specific hull deadrise via 0°, 12°, and 18° tilted elements, these 600W RMS units feature 24°–17° beamwidths, urethane acoustic windows, NTC temperature sensors, and 27ft cables for reliable bottom tracking to around 900ft.

Key Features

• Medium CHIRP 80-130kHz frequency range

• 600W RMS power rating

• 24°–17° beamwidth at 3dB

• Max depth rating approximately 900ft

• Low-profile bronze thru-hull design for reduced drag

• NTC temperature sensor and urethane acoustic window

• 27ft cable and 2.38" hull hole diameter

Comparison Table

What's in the Box

• Echonautics BT70MA600 bronze thru-hull transducer (tilt per model)

• 27ft cable
