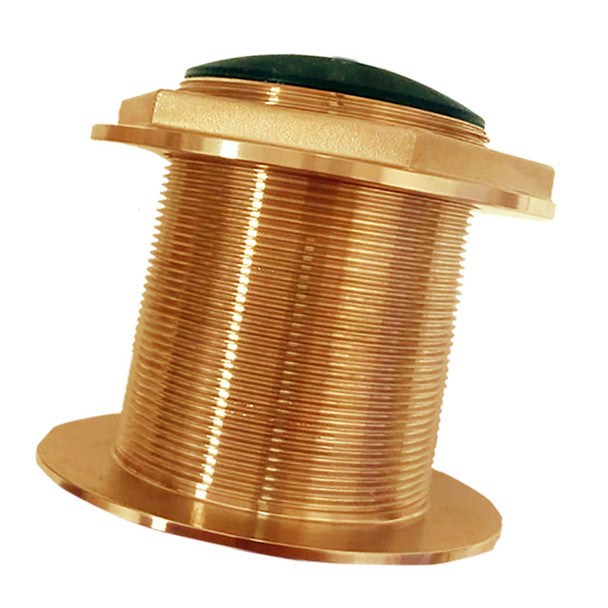

Echonautics BT87H1kW 1kW 130-210kHz High CHIRP Tilted Element Bronze TH.

Echonautics BT87H1KW SeriesHigh CHIRP 0d Tilted Element Bronze TH.

Models:

BT87H1KW-00 – 0° Tilt (0°-7° hull deadrise)
BT87H1KW-12 – 12° Tilt (8°-15° hull deadrise)
BT87H1KW-18 – 18° Tilt (16°-24° hull deadrise)

Product Description

Echonautics BT87H1KW series 1kW high CHIRP thru-hull transducers (130-210kHz) are low-profile bronze units designed to minimize drag and maintain performance at high speeds while delivering superior shallow-water performance and detailed bottom tracking. Their narrow 13°–8° beamwidth excels at pinpointing fish tight to reefs, wrecks, and other structure, with NTC temperature sensing, urethane acoustic windows, and 9m (30ft) cables supporting reliable depth and temperature measurements to about 1,000ft.

Key Features

• High CHIRP 130-210kHz frequency range

• 1kW RMS power for strong shallow-water and mid-depth returns

• Narrow 13°–8° beamwidth for high-resolution target definition

• Low-profile bronze thru-hull design for reduced drag at speed

• NTC temperature sensor and urethane acoustic window

• 9m (30ft) cable and 87.6mm (3.45") hull hole diameter

• Tilt options to match 0°–24° hull deadrise

Model Comparison

What's in the Box

• Echonautics BT87H1KW bronze thru-hull transducer (tilt per model)

• 9m (30ft) cable
