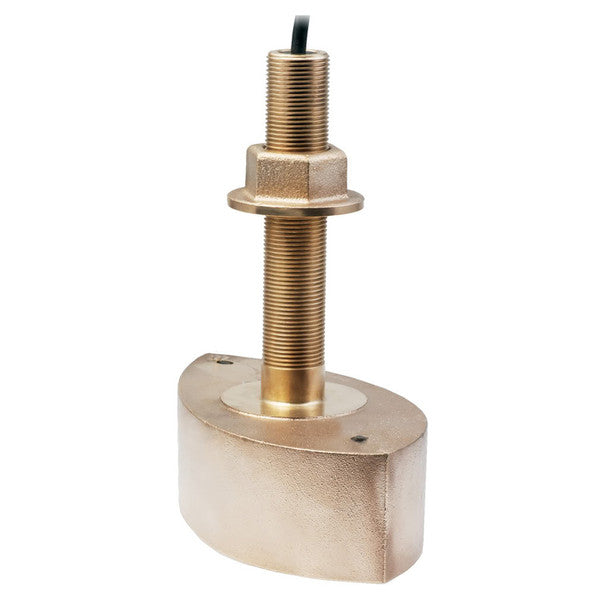

Echonautics CB101D600CW 600w 50/200kHz Bronze Thru-Hull

Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull

Model: CB101D600CW

The cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.

The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.

Specifications

Function	Depth and Temperature
Frequency	50/200 kHz
Mount type	Thru-hull fairing block is optional
Deadrise	Max deadrise of 20° with fairing block.
Material	Bronze
RMS power	600 watts
Beamwidth	50kHz 42° -3db 200kHz 11° -3db
Depth	Max @ 50kHz = 1200 ft Max @ 200kHz = 700 ft
Temp sensor	NTC

What's in the Box:

• CB101D600CW transducer
